Engine/MPFI Wiring Harness

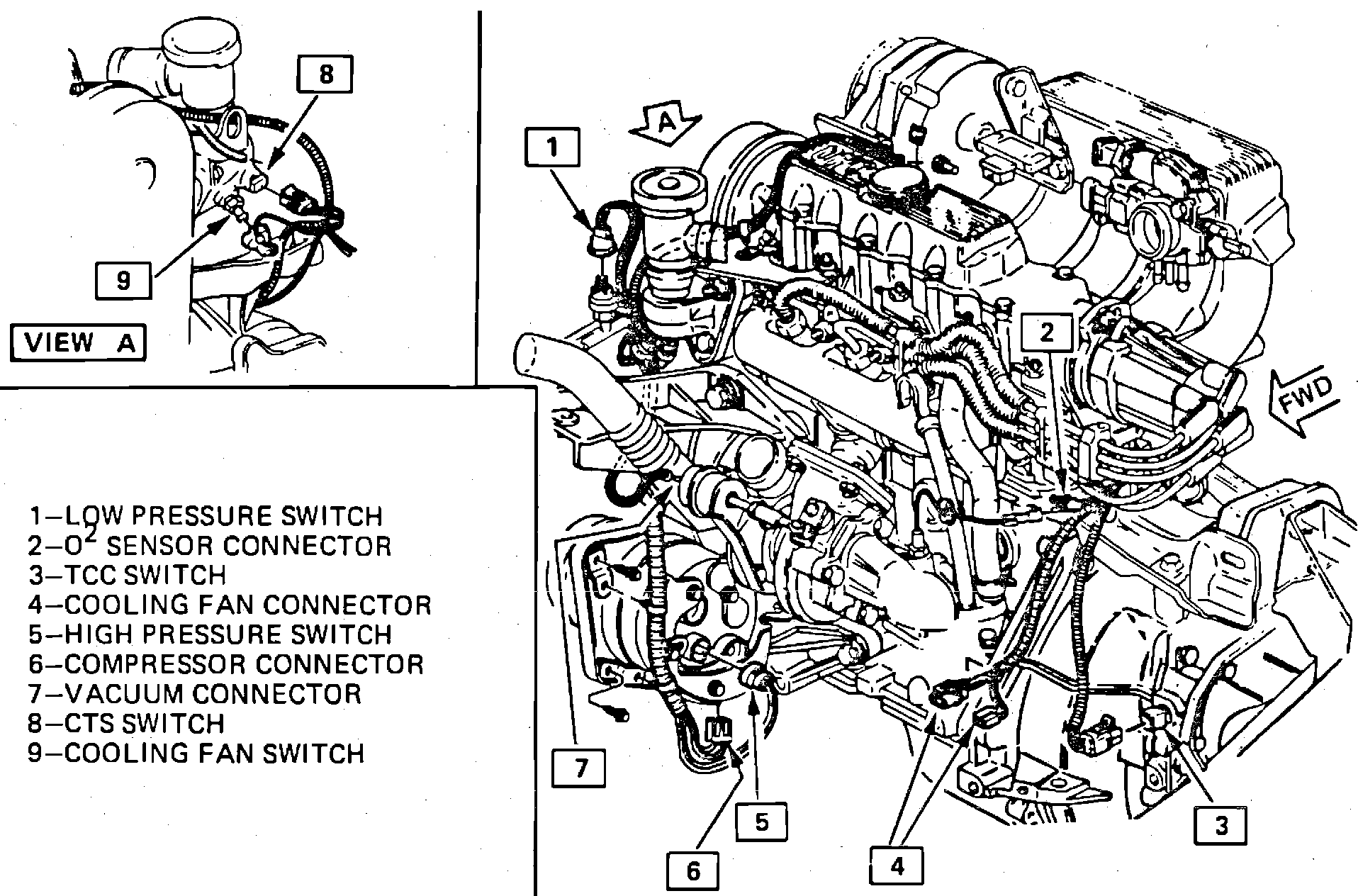

Engine/MPFI Wiring Harness, Rear Side.:

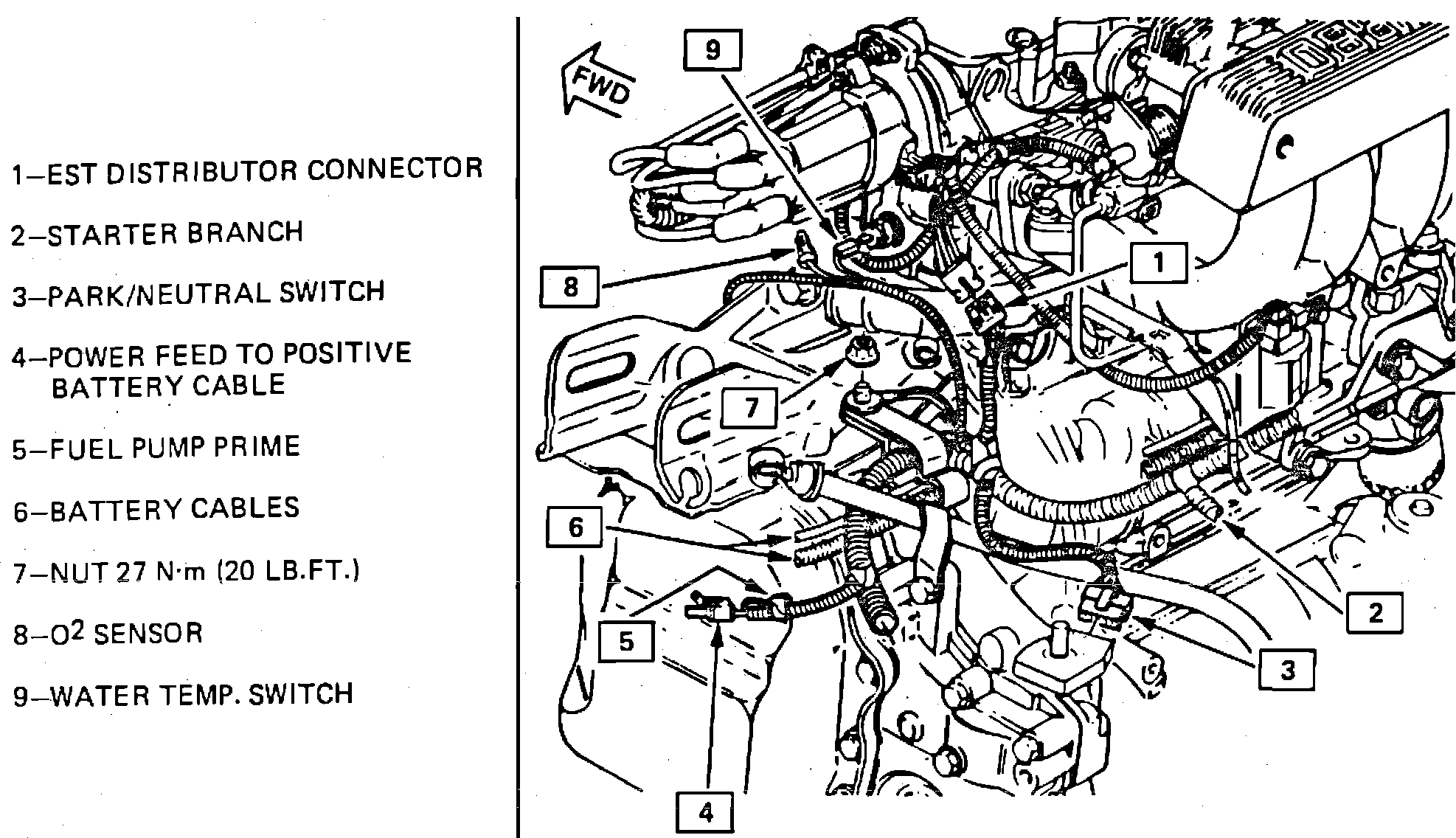

Engine/MPFI Wiring Harness, Rear Side.:

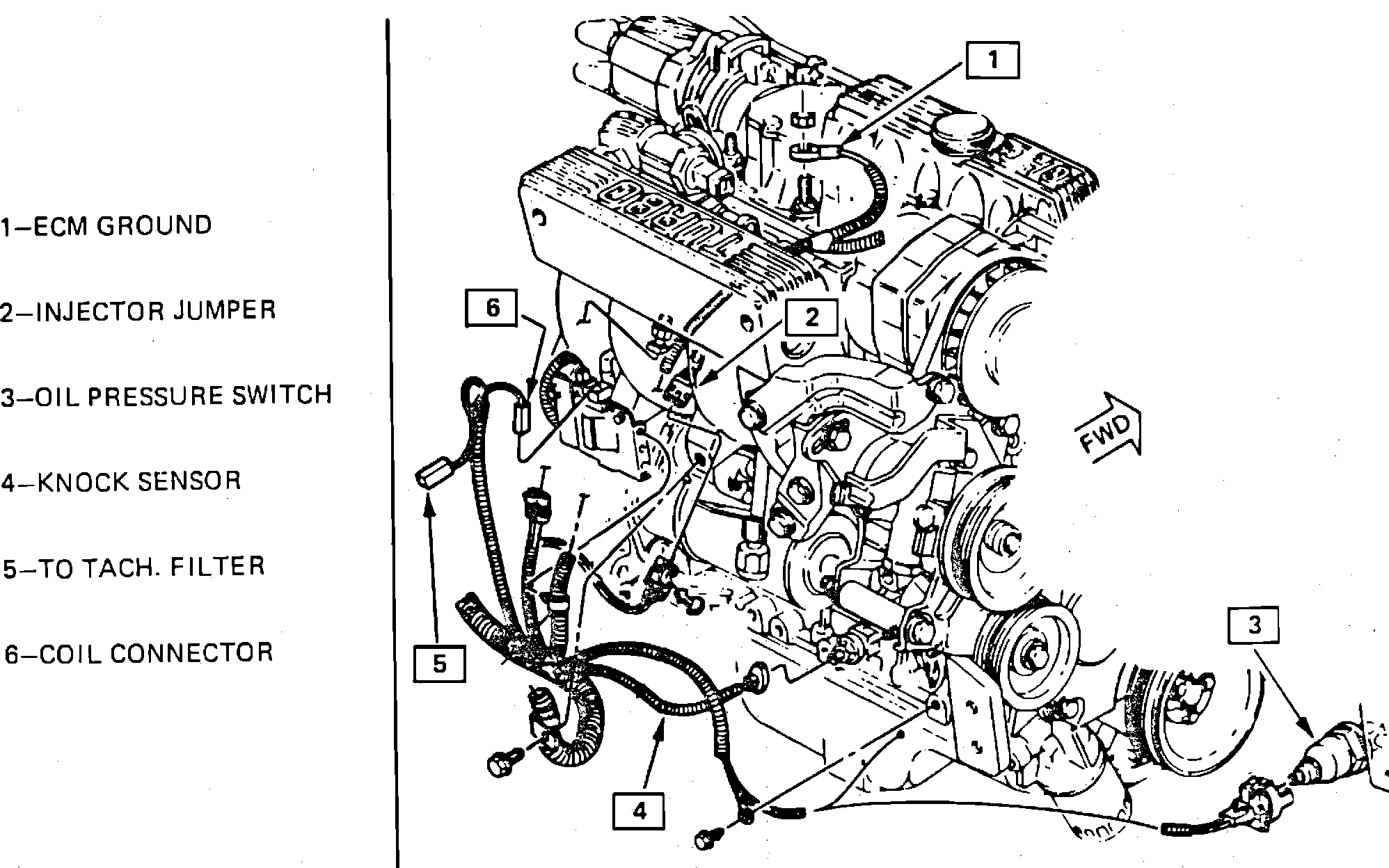

Engine/MPFI Wiring Harness, Top Side.:

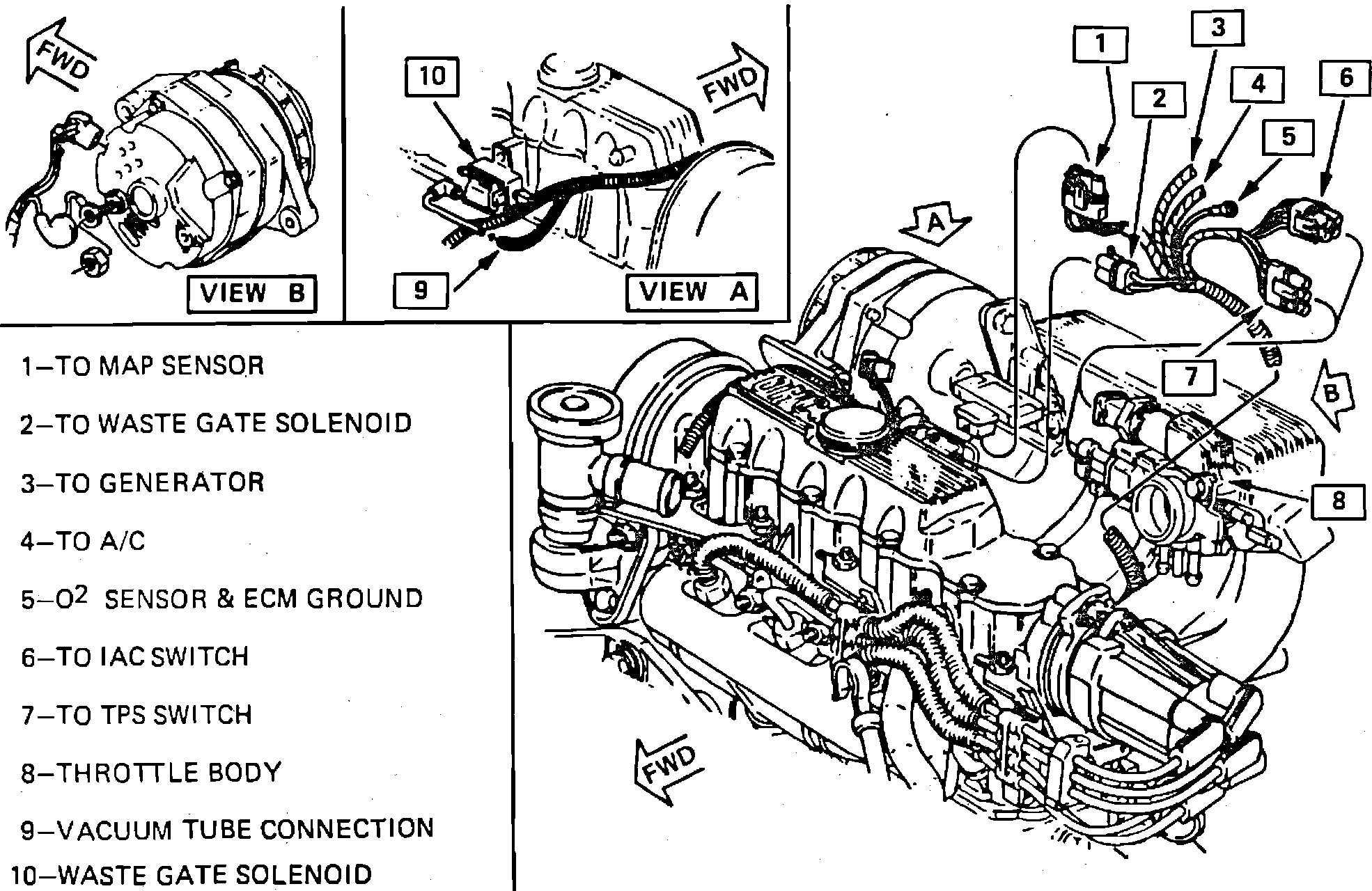

Engine/MPFI Wiring Harness, Top Side.:






Applicable to: 4-121/2.0L (VIN M)
