Alignment - Specifications
Number 87-3-8 Date 1/87Subject: 1987 ALIGNMENT SPECIFICATIONS
ALL 1987 MODELS

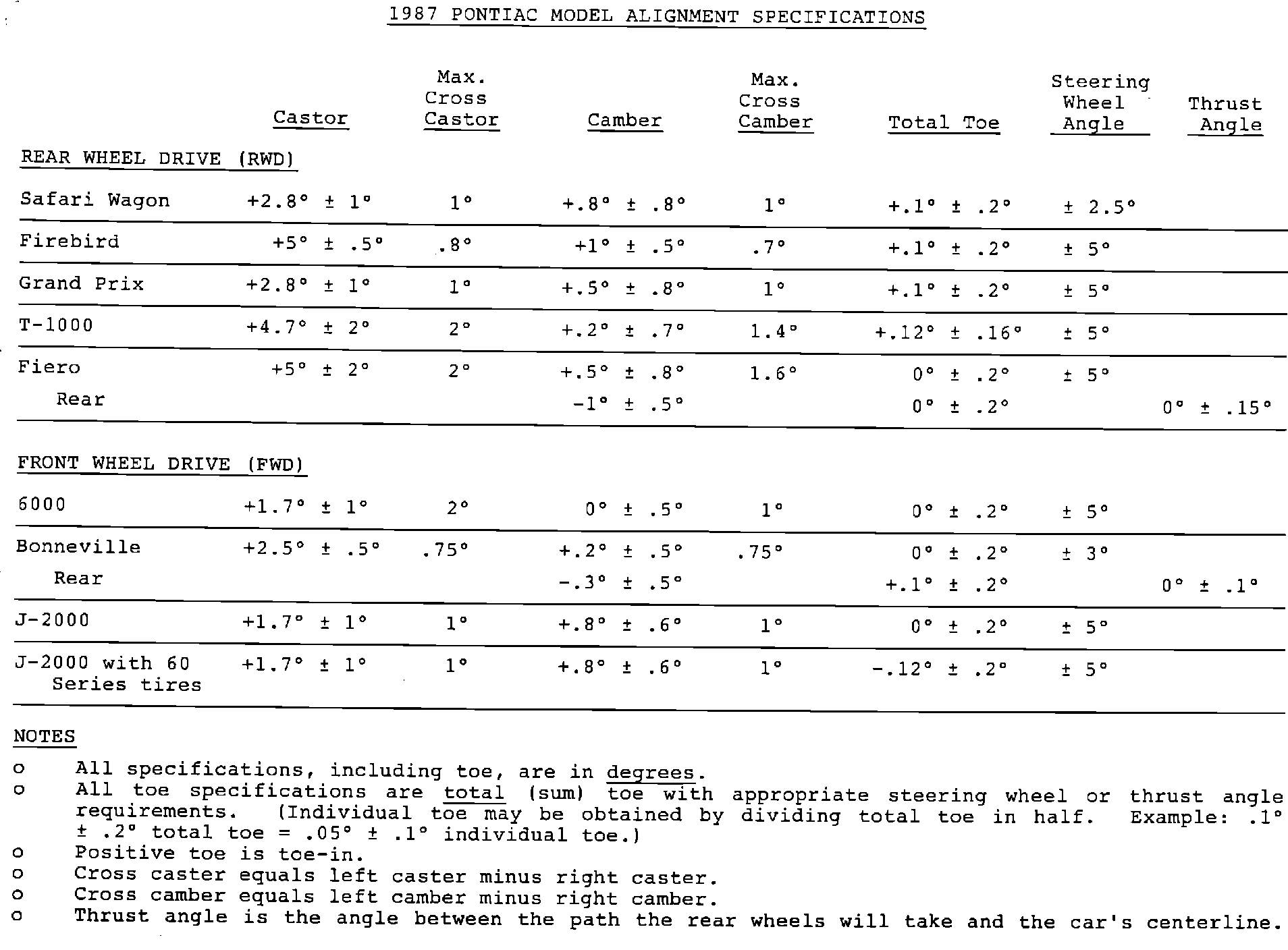

Alignment specifications for all 1987 models are being published here due to some recent specification changes. Many of the recent changes have been reductions in toe for improved tire wear.
Four-wheel alignment is recommended whenever rear suspension is adjustable. Four-wheel alignment equipment, such as that in the GM dealer equipment catalog, is recommended. Alignment equipment must be calibrated on a regular basis.
