Glove Box - Rattle

Number 87-10-7 Date 12/86
Subject: ECM BRACKET TO GLOVE BOX RATTLE


1987 SUNBIRD MODELS

Glove Box:

CONDITION:

A rattle in glove box area of instrument panel.

CAUSE:

The ECM bracket contacts the glove box at the left edge.

CORRECTION:

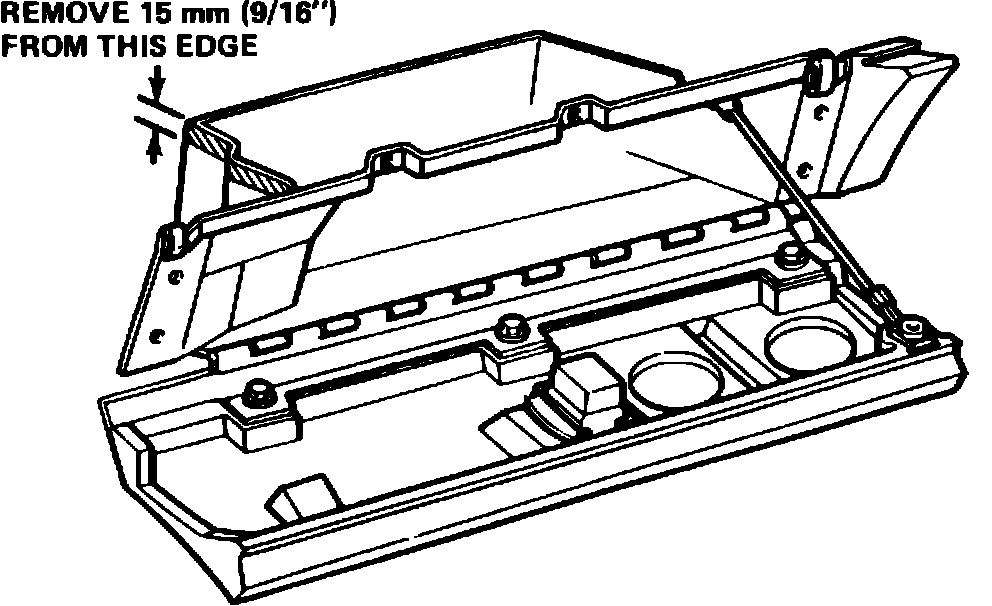

Refer to the Illustration and trim 15 mm of material off the top edge of the left side of the glove box as shown. This will provide the necessary clearance for the ECM bracket..
