Direct Ignition System

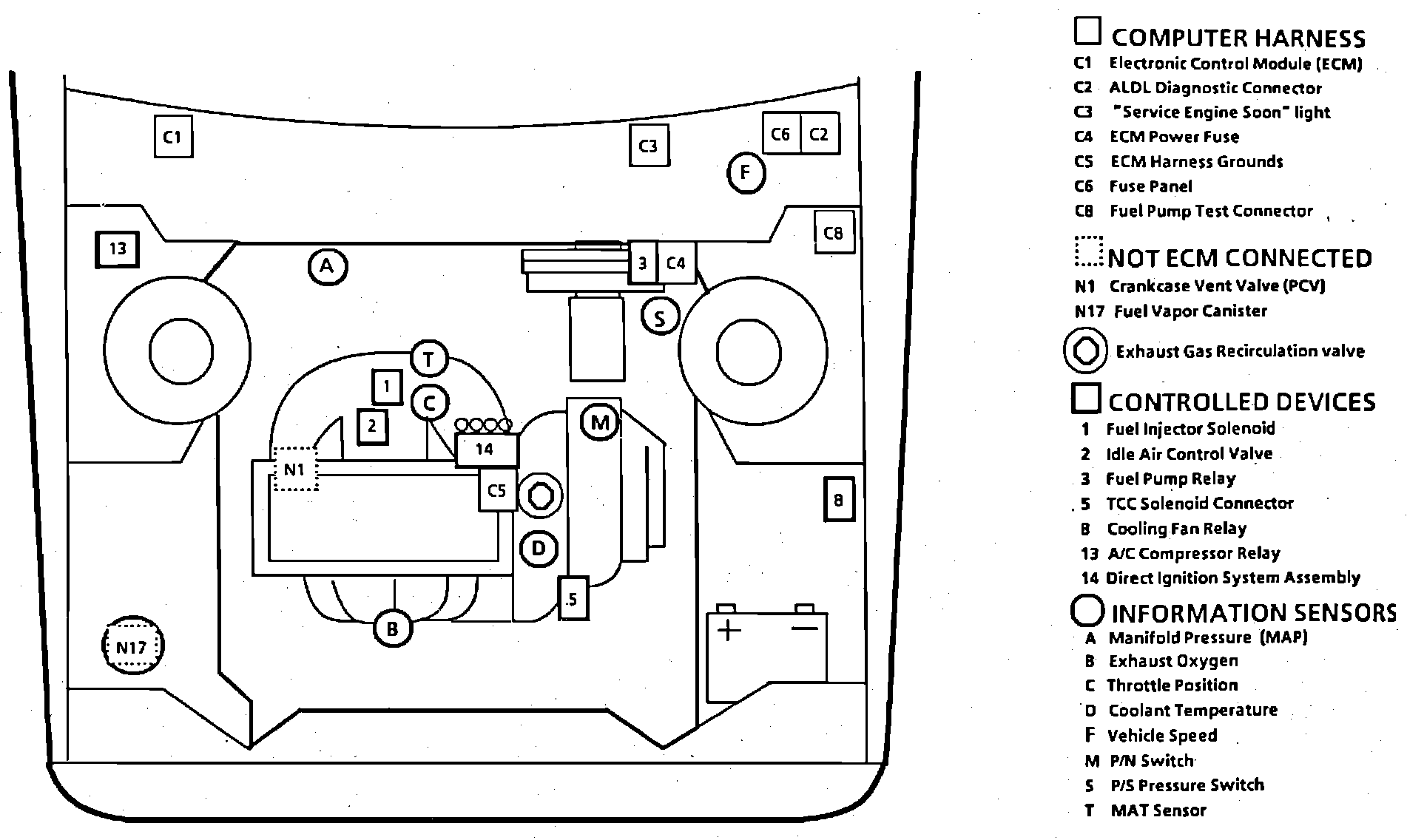

Engine Compartment Component Locations.:
Rear LH Side Of Engine
Applicable to: 4-121/2.0L Engine VIN 1
