Turbo

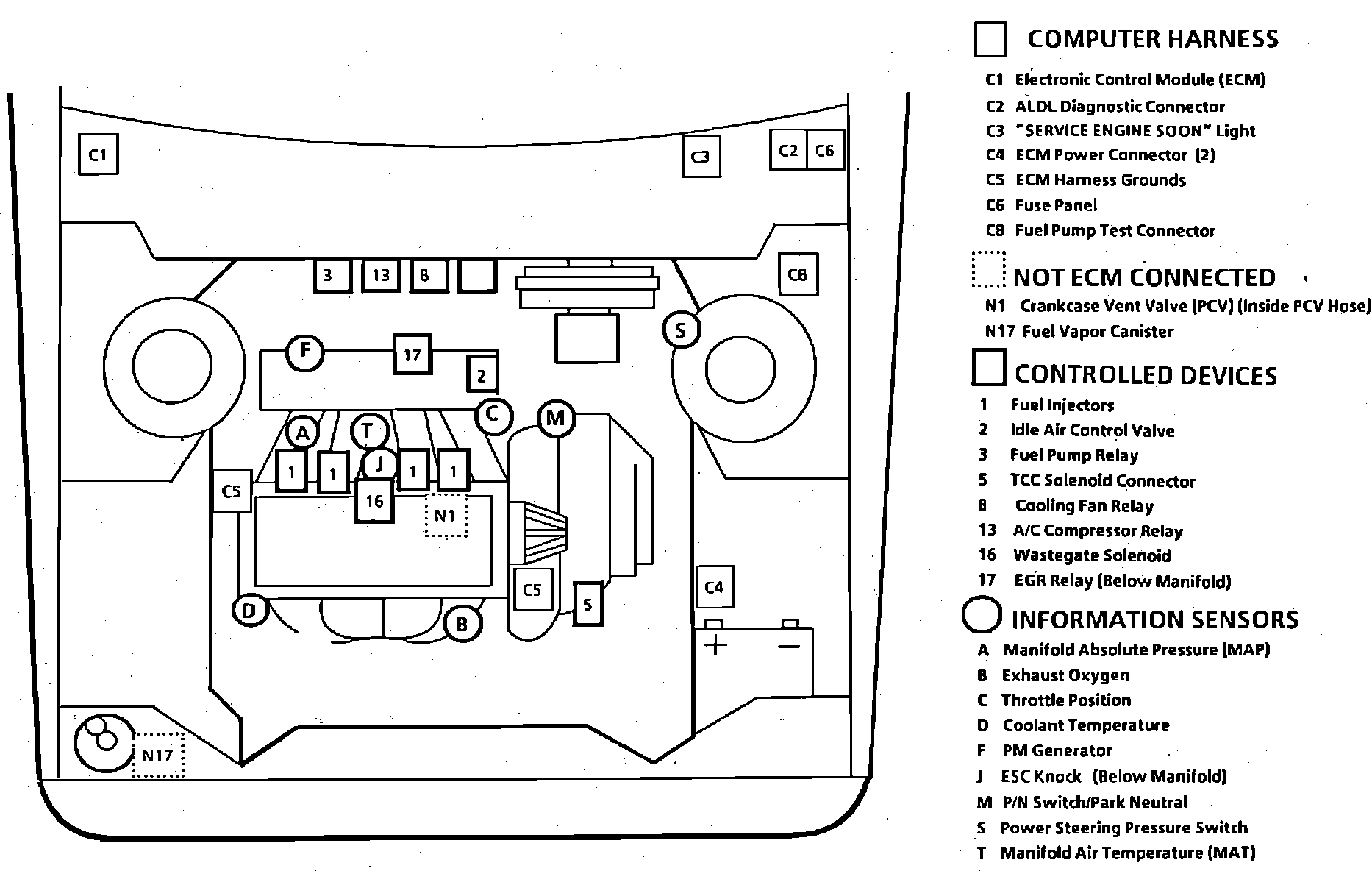

Engine Compartment Component Locations:

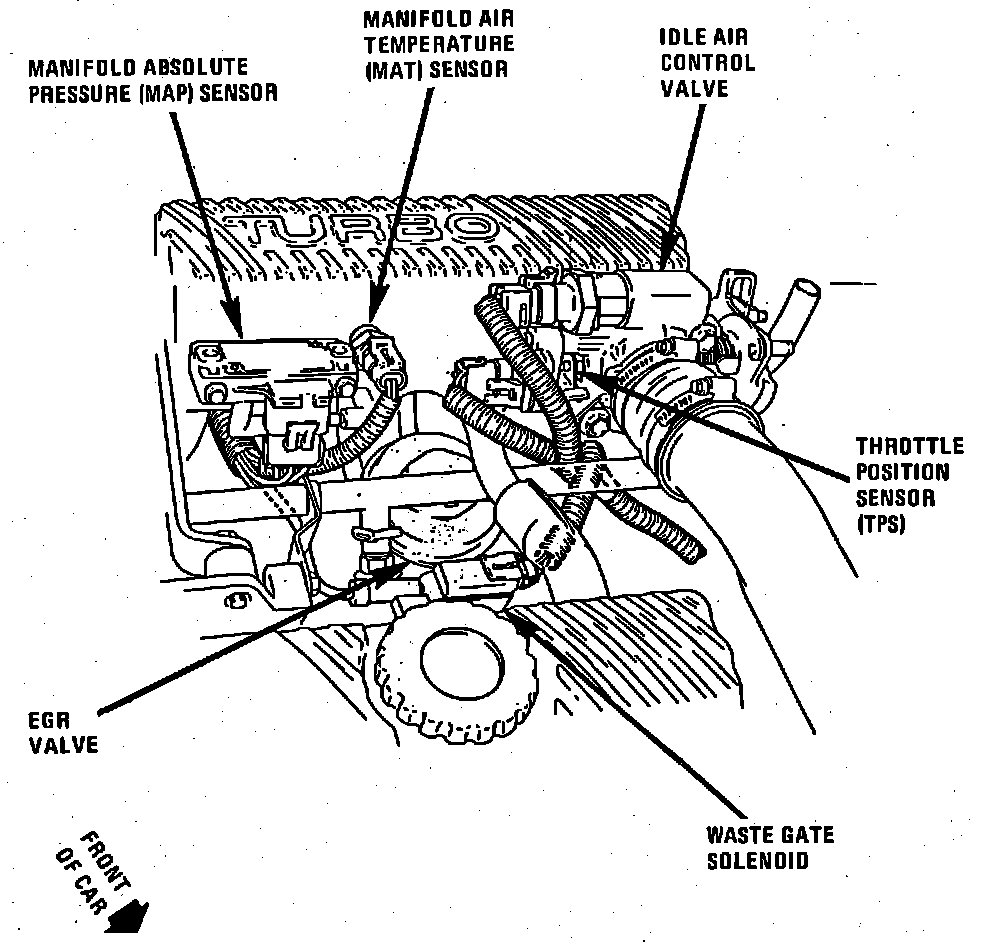

Front Of Engine.:




Rear LH Side Of Engine

Applicable to: 4-121/2.0L Turbo Engine
