VIN M

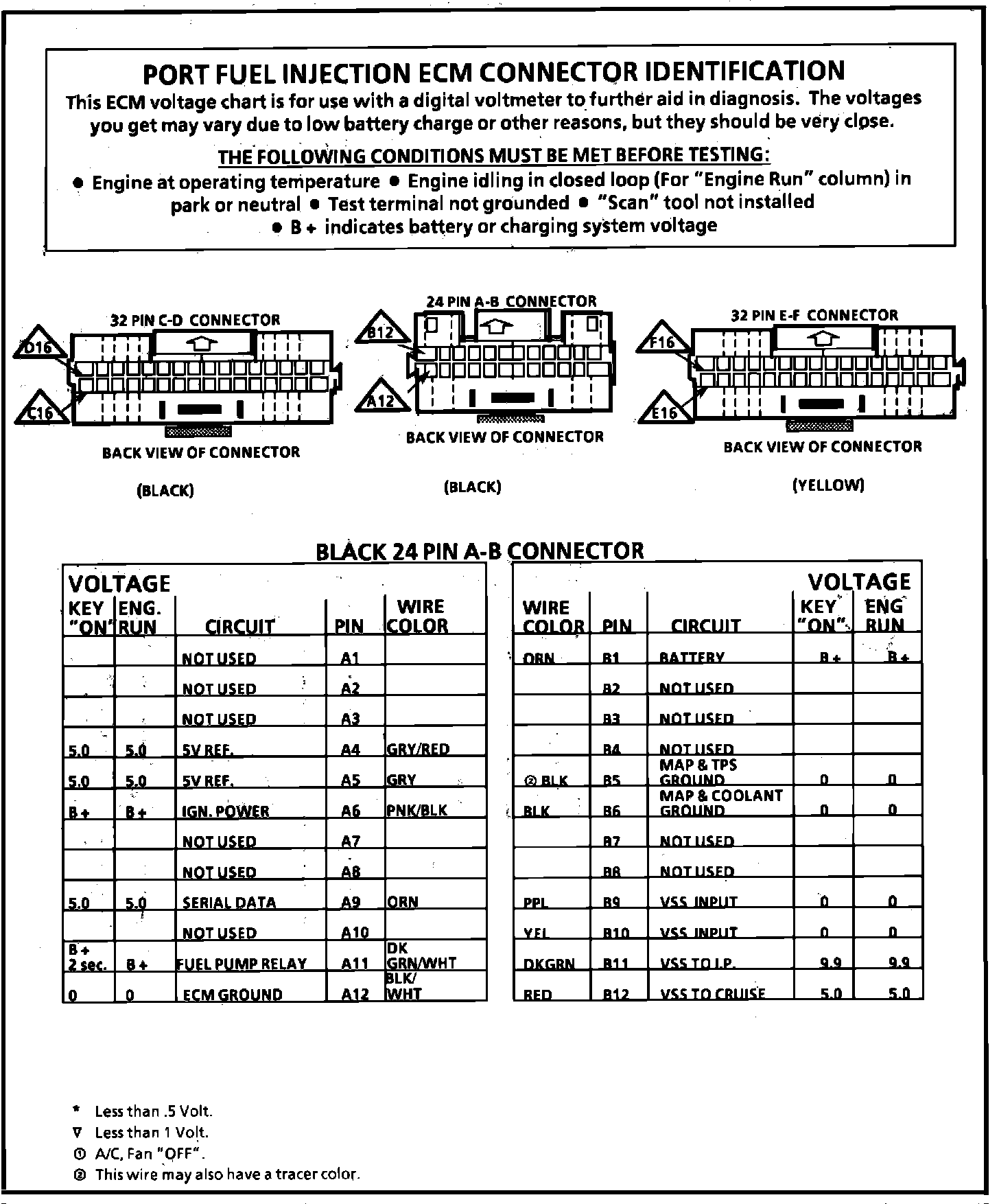

ECM Terminal ID and Voltage Specifications (Part 1 of 2):

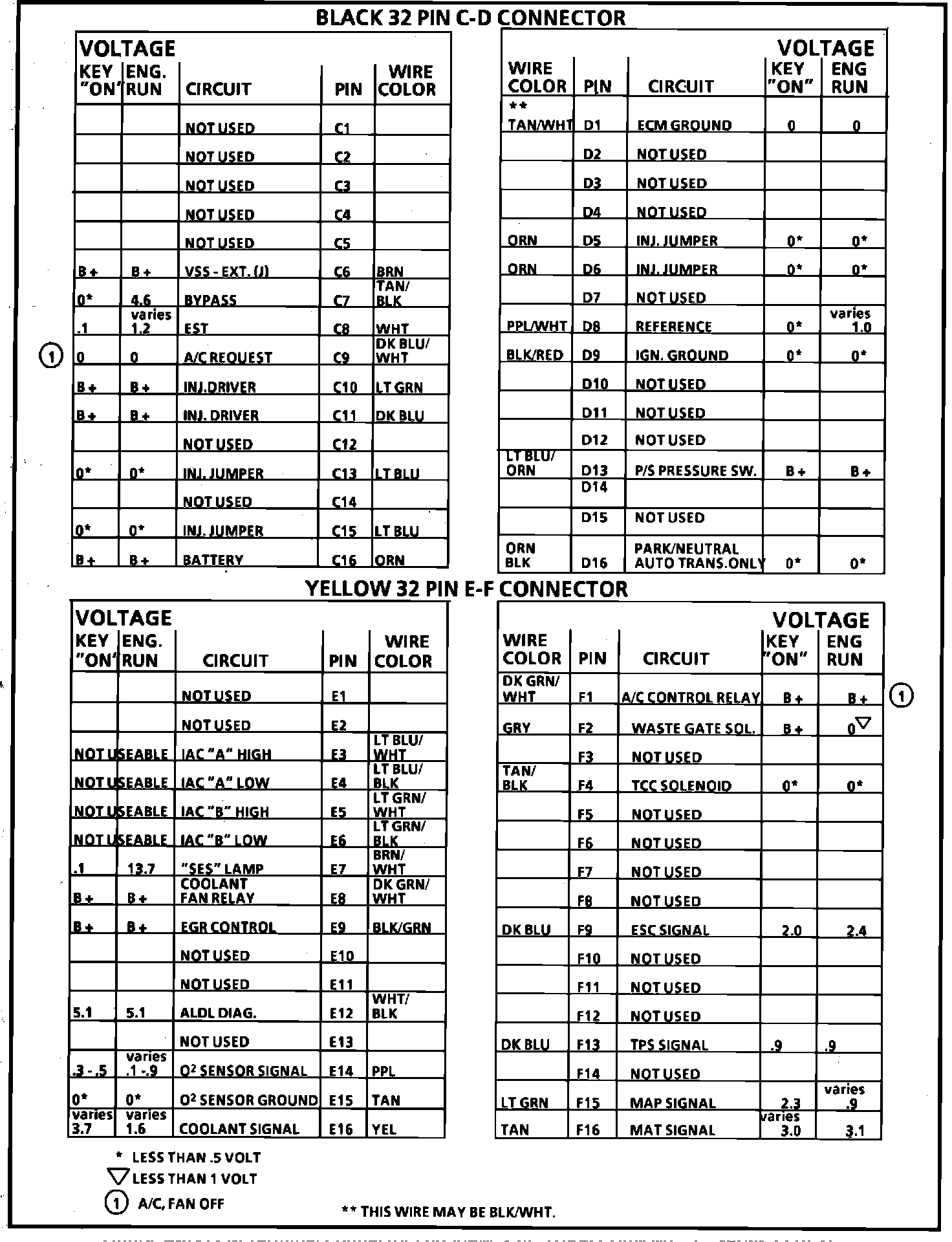

ECM Terminal ID and Voltage Specifications (Part 2 of 2):
