System Specifications

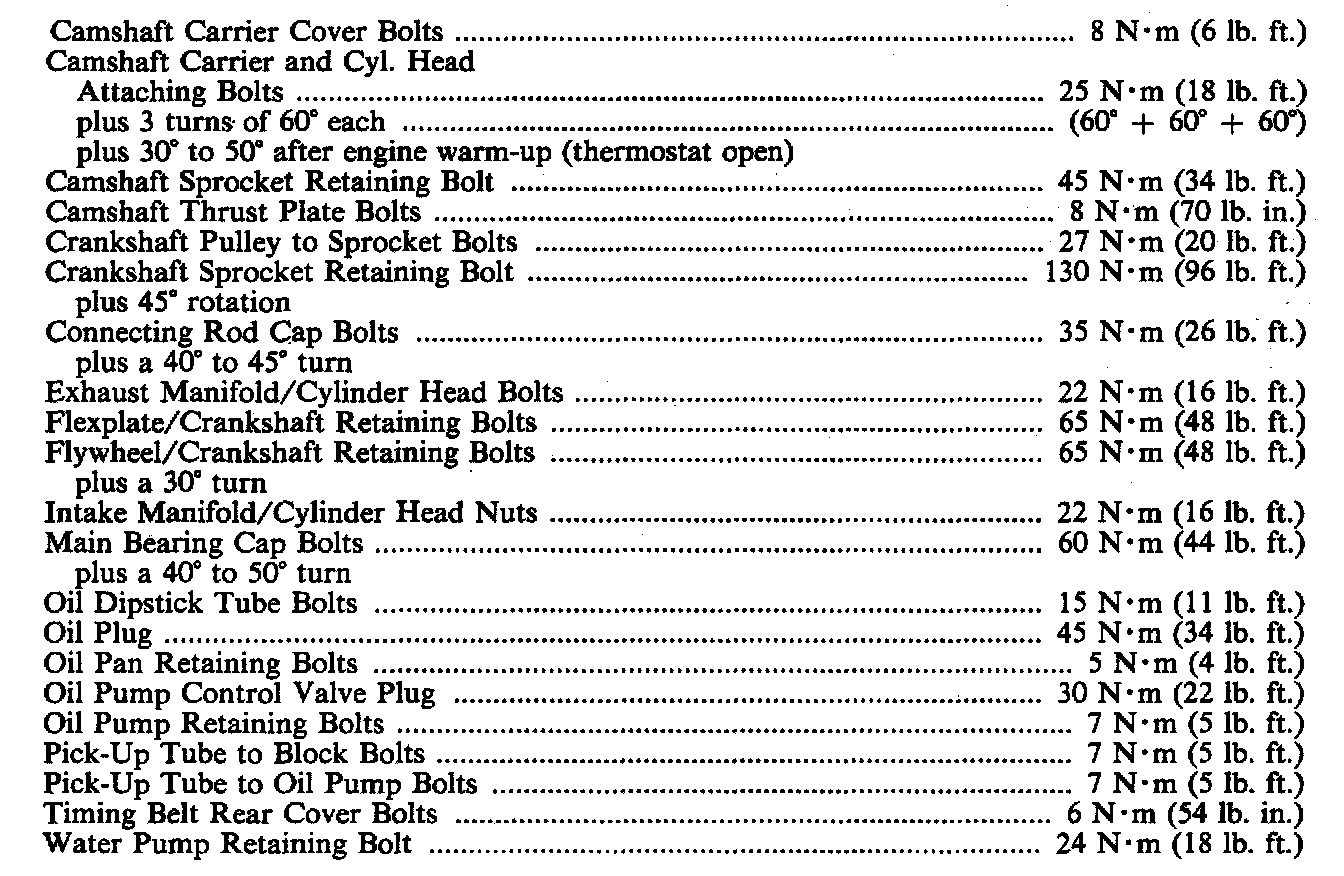

Torque Specifications:





Engine Specifications:

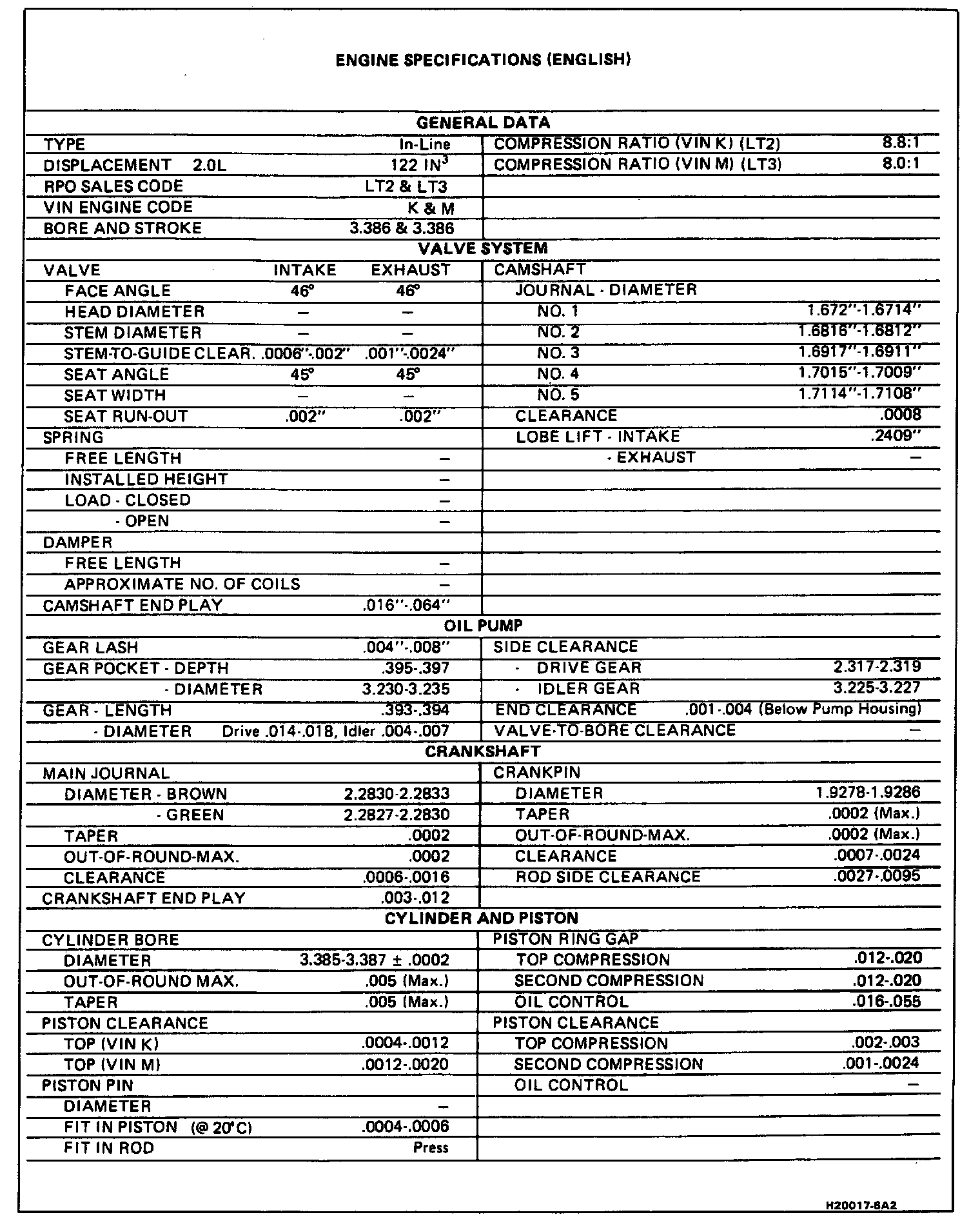

Engine Specifications (ENGLISH):

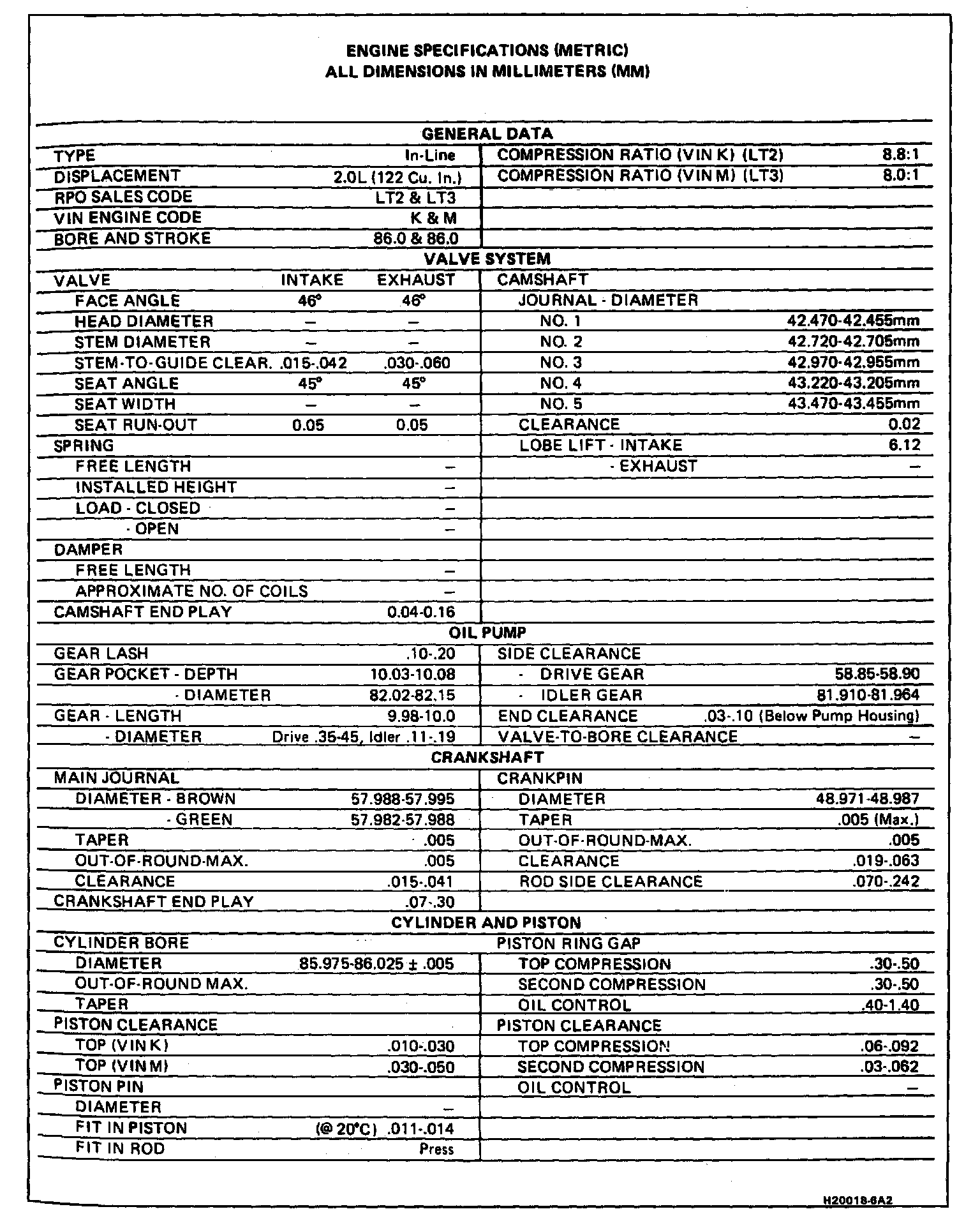

Engine Specifications (METRIC):





Camshaft Carrier And Cylinder Head Bolt Loosening Sequence:





Camshaft Carrier And Cylinder Head Bolt Torque Sequence:
