System Specifications

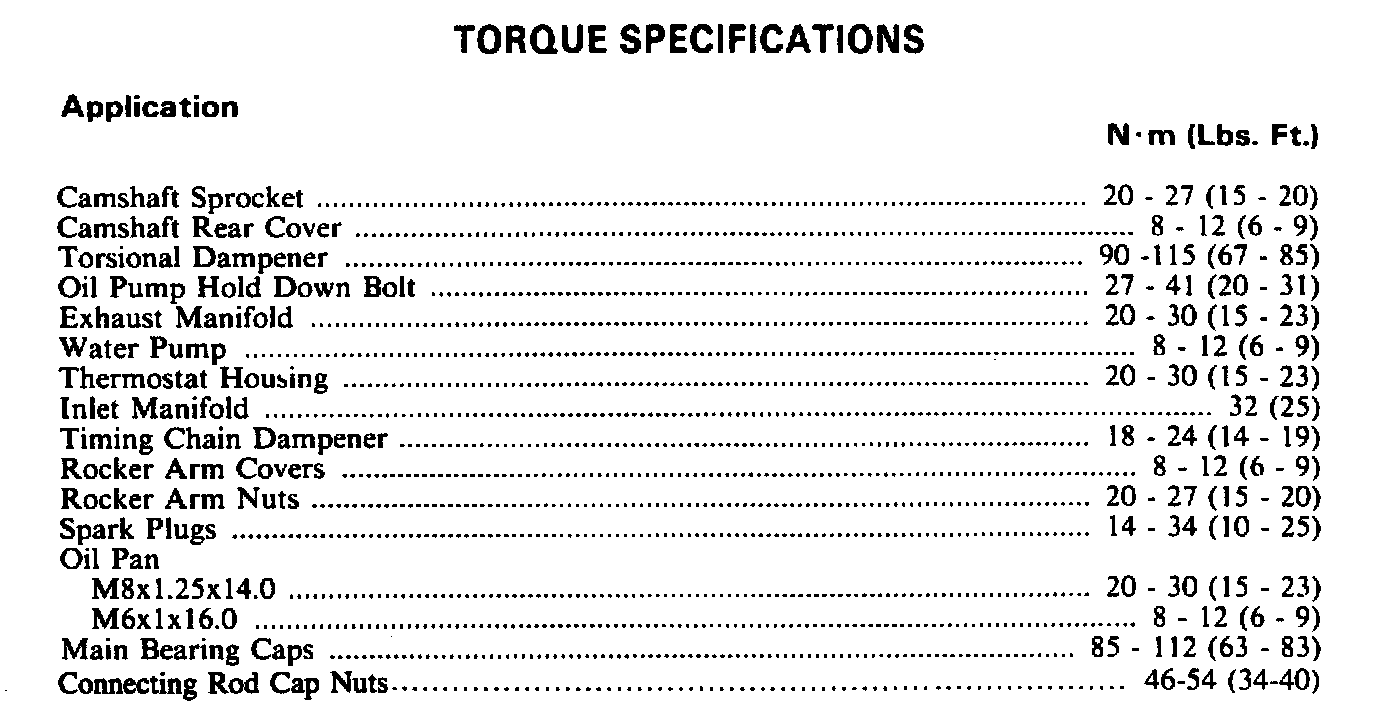

Torque Specifications:

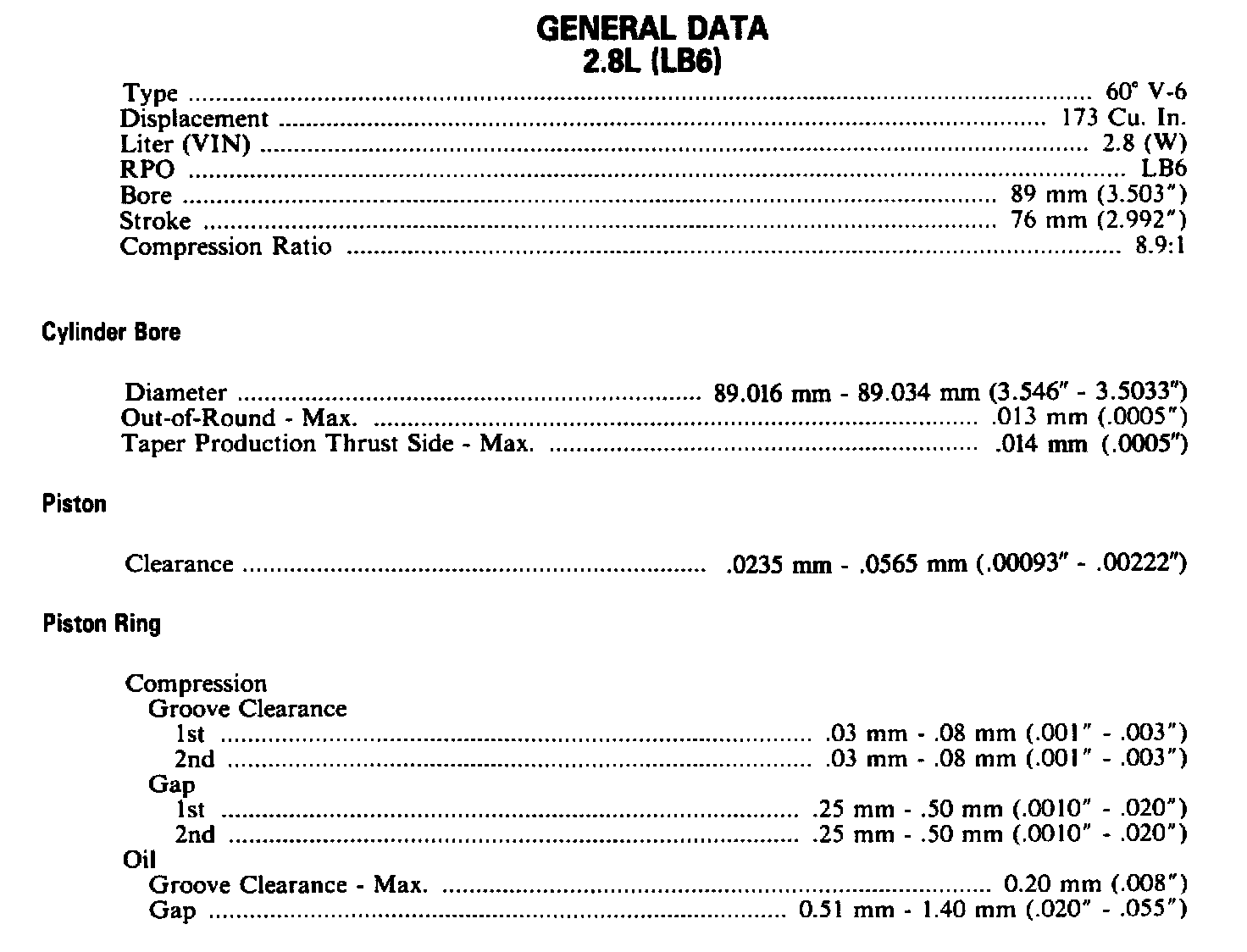

Engine Specifications (2.8L):

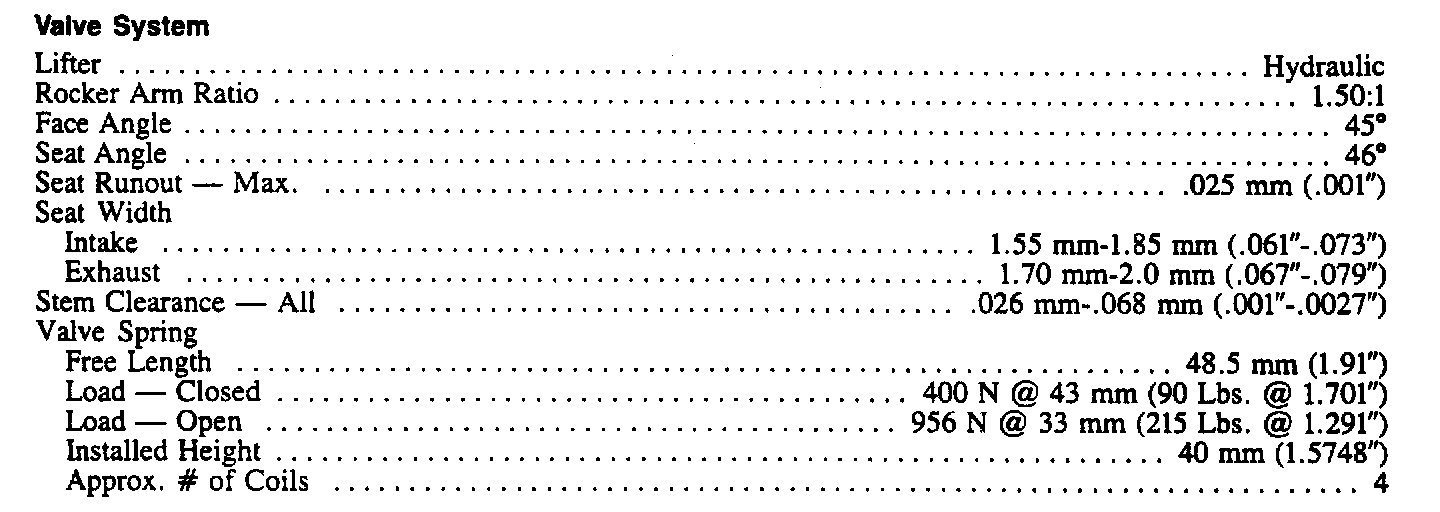

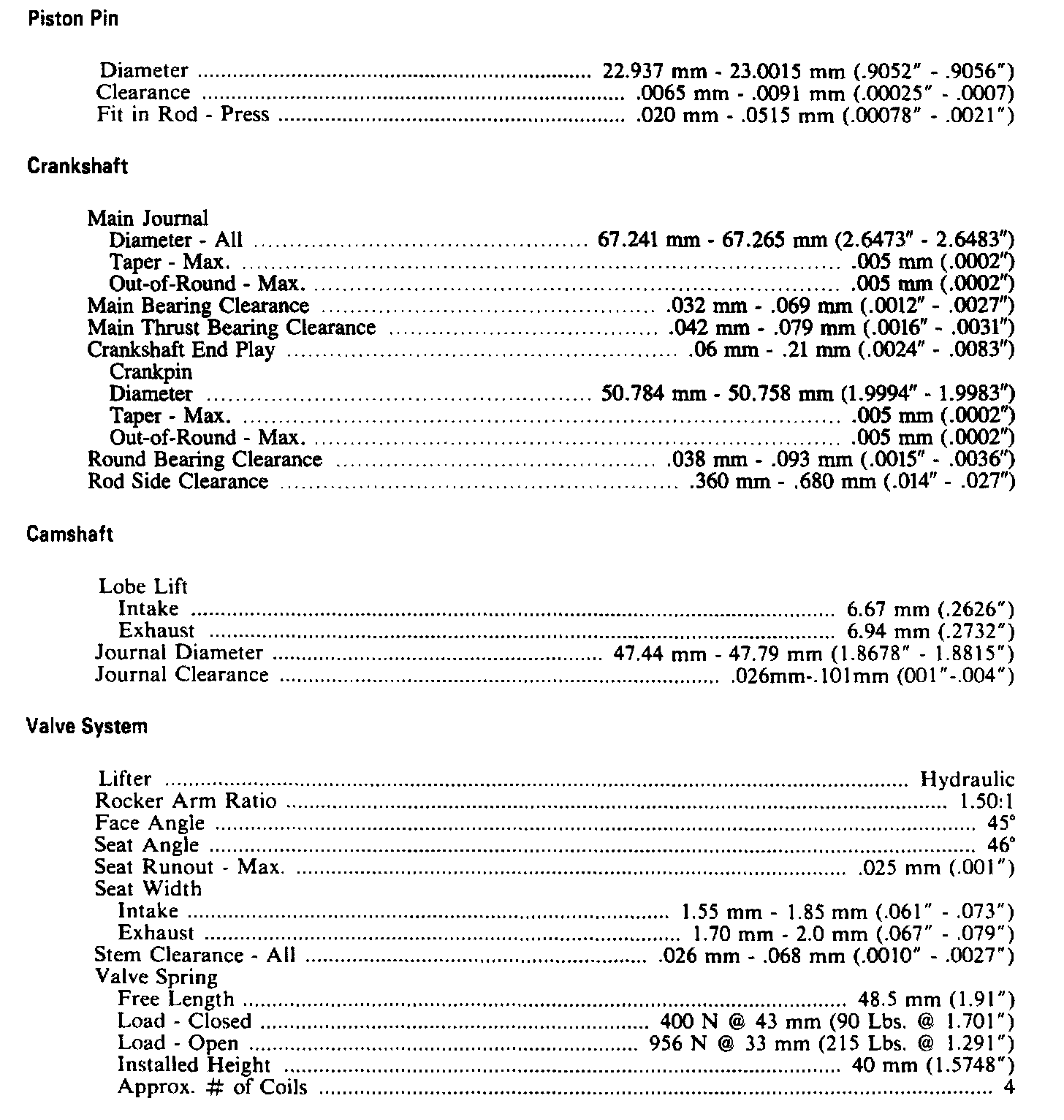

Continued Engine Specifications:

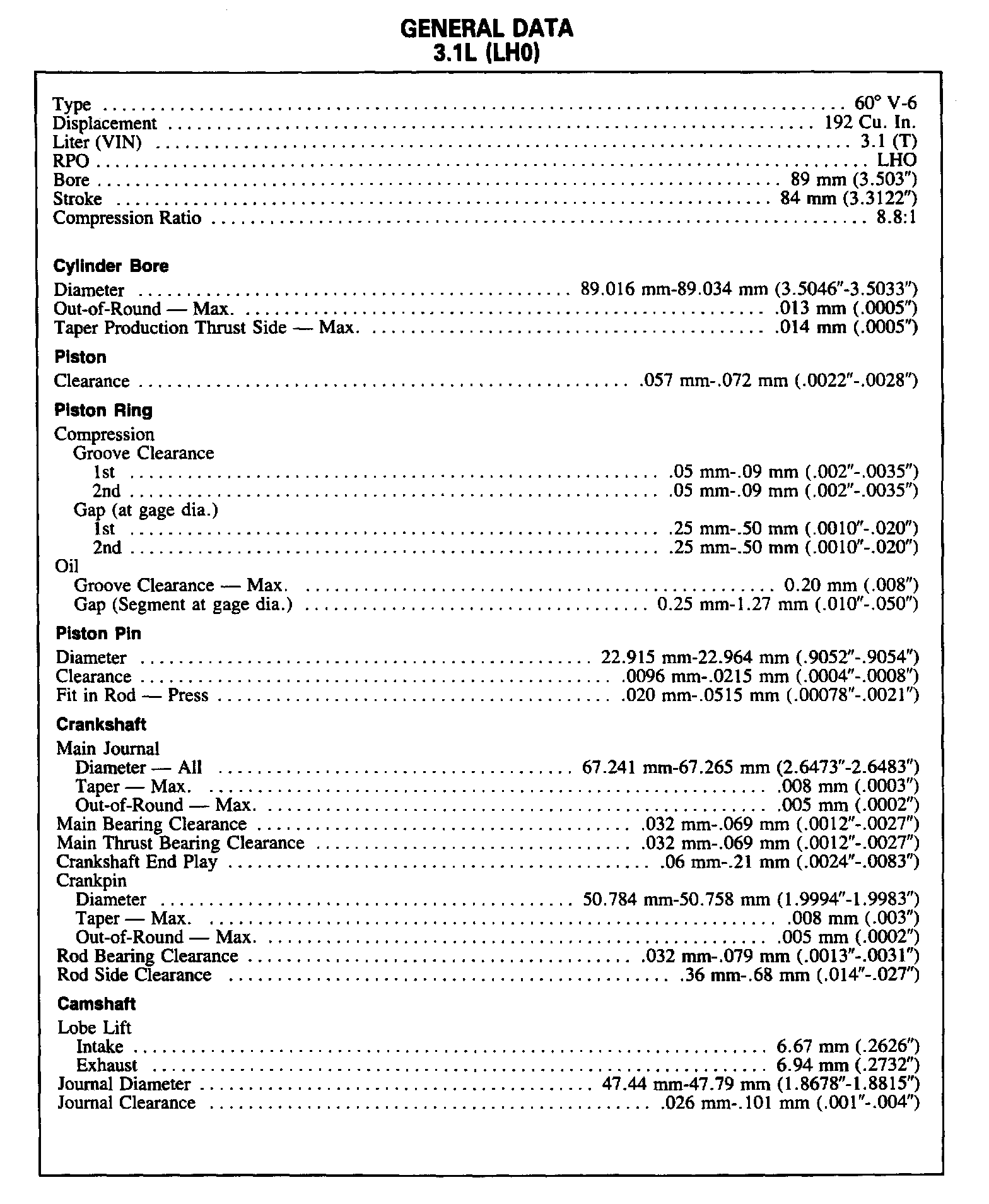

Engine Specifications (3.1L):




Continued Engine Specifications (3.1L):

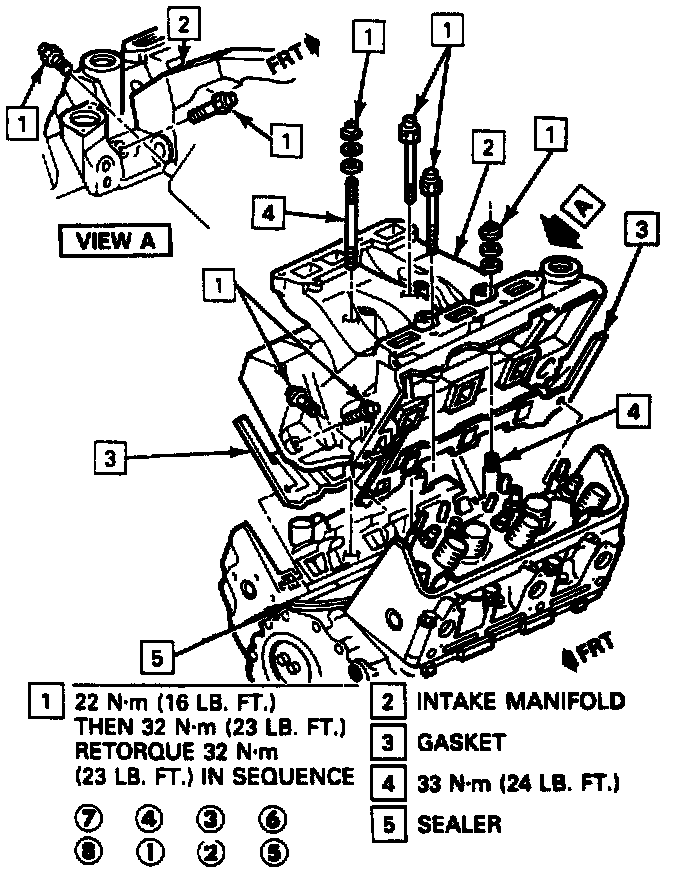

Intake Manifold Sequence:

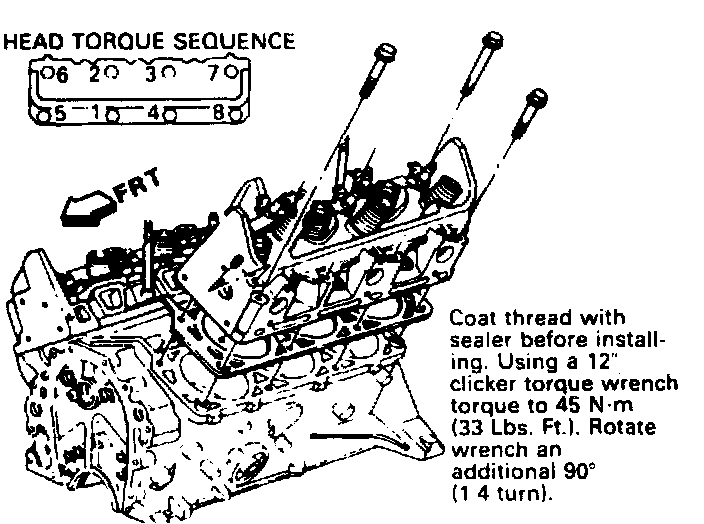

Cylinder Head Sequence:
