Throttle Position Sensor: Locations

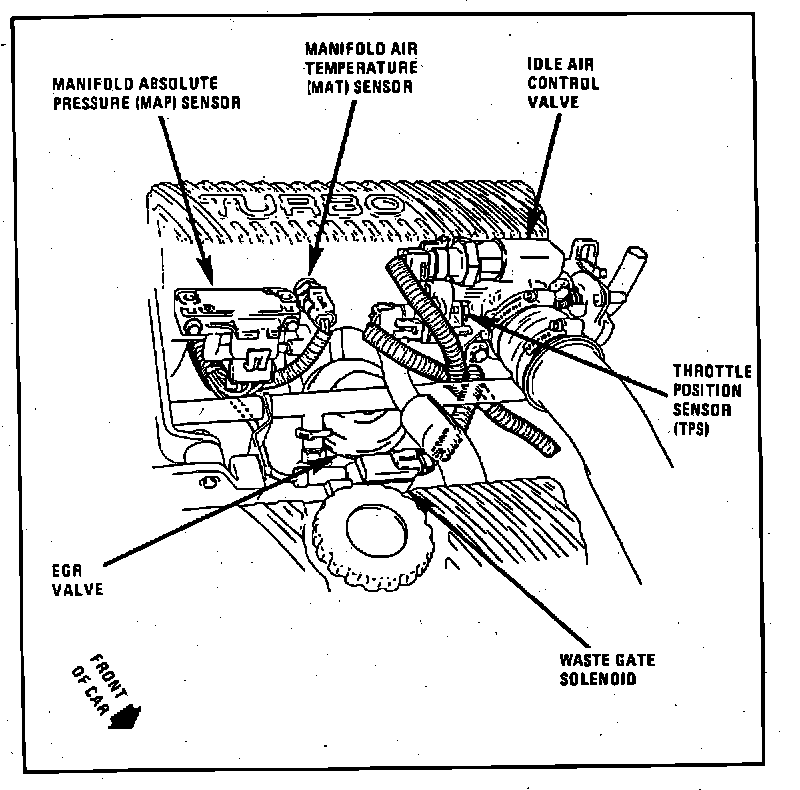

Engine Compartment Components:




Front Of Engine.:




Top Of Engine, On RH Side Of Throttle Body

Applicable to: 4-121/2.0L
