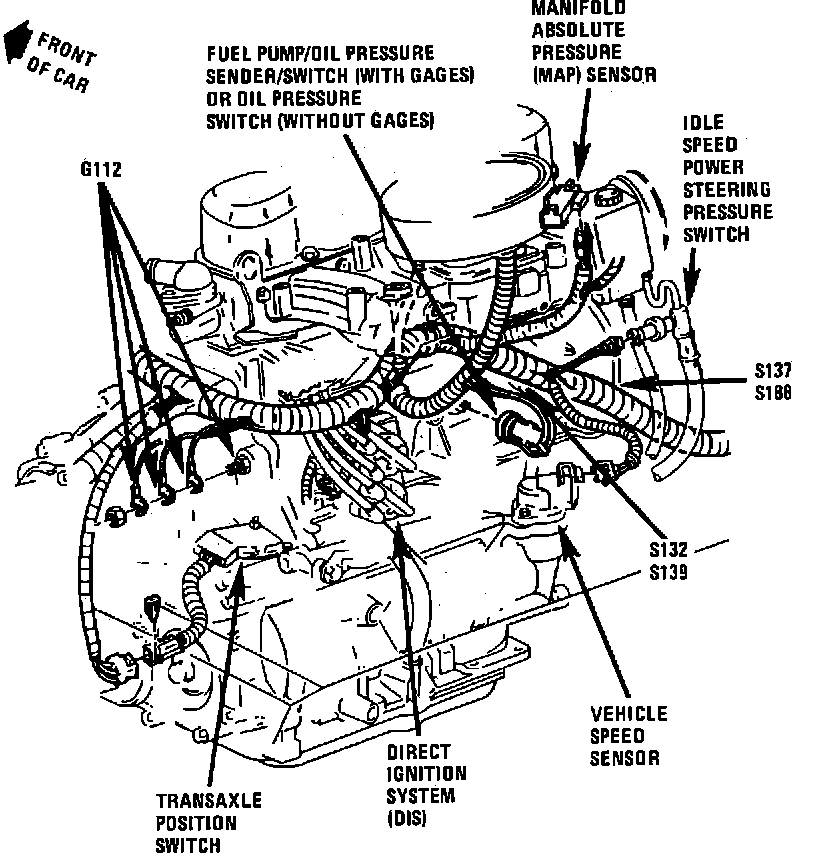

Direct Ignition System
Rear Of Engine.:
LH Rear Of Engine, Below Intake Manifold
Applicable to: 6000 w/4-151/2.5L
