Torque Specifications

Cylinder Head Bolts

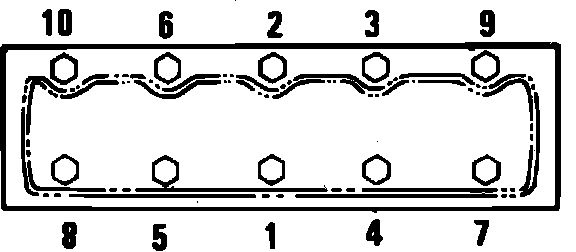

Fig. 5 Cylinder Head Tightening Sequence:

1. Torque all bolts to [1] 18 ft. lbs.
2. Torque all bolts to (except No. 9) [1] 26 ft. lbs.
Torque No. 9 bolt to [1] 18 ft. lbs.
3. Turn all bolts [1] 90° (1/4 turn)

[1] in the sequence shown (refer to image)
