Diagnostic Aids

Scan should indicate a vehicle speed whenever drive wheels are turning greater than 3 MPH. A faulty or misadjusted park/neutral switch can result in a false Code 24. Use Scan tester to check for properly adjusted Park/Neutral switch in "D", "P" and "N". For additional information and testing of park/neutral switch see ENGINE SENSORS & SWITCHES in I - SYS/COMP TESTS article. If Code 24 is intermittent, see INTERMITTENTS in TESTS W/O CODES article.

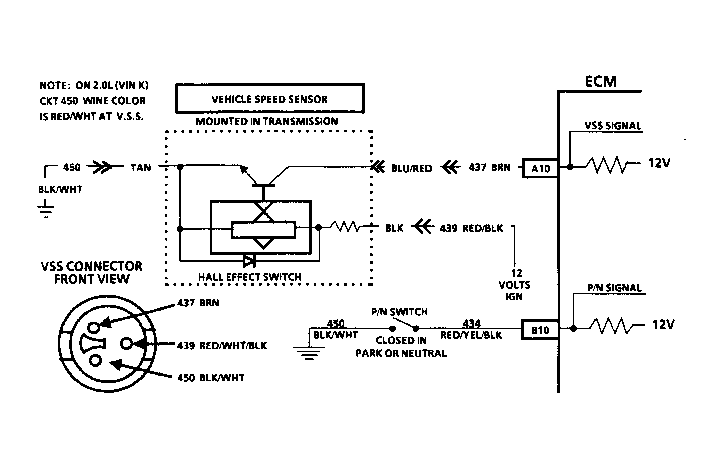

Fig 1: Circuit Diagram Chart Code 24

Courtesy of GENERAL MOTORS CORP.

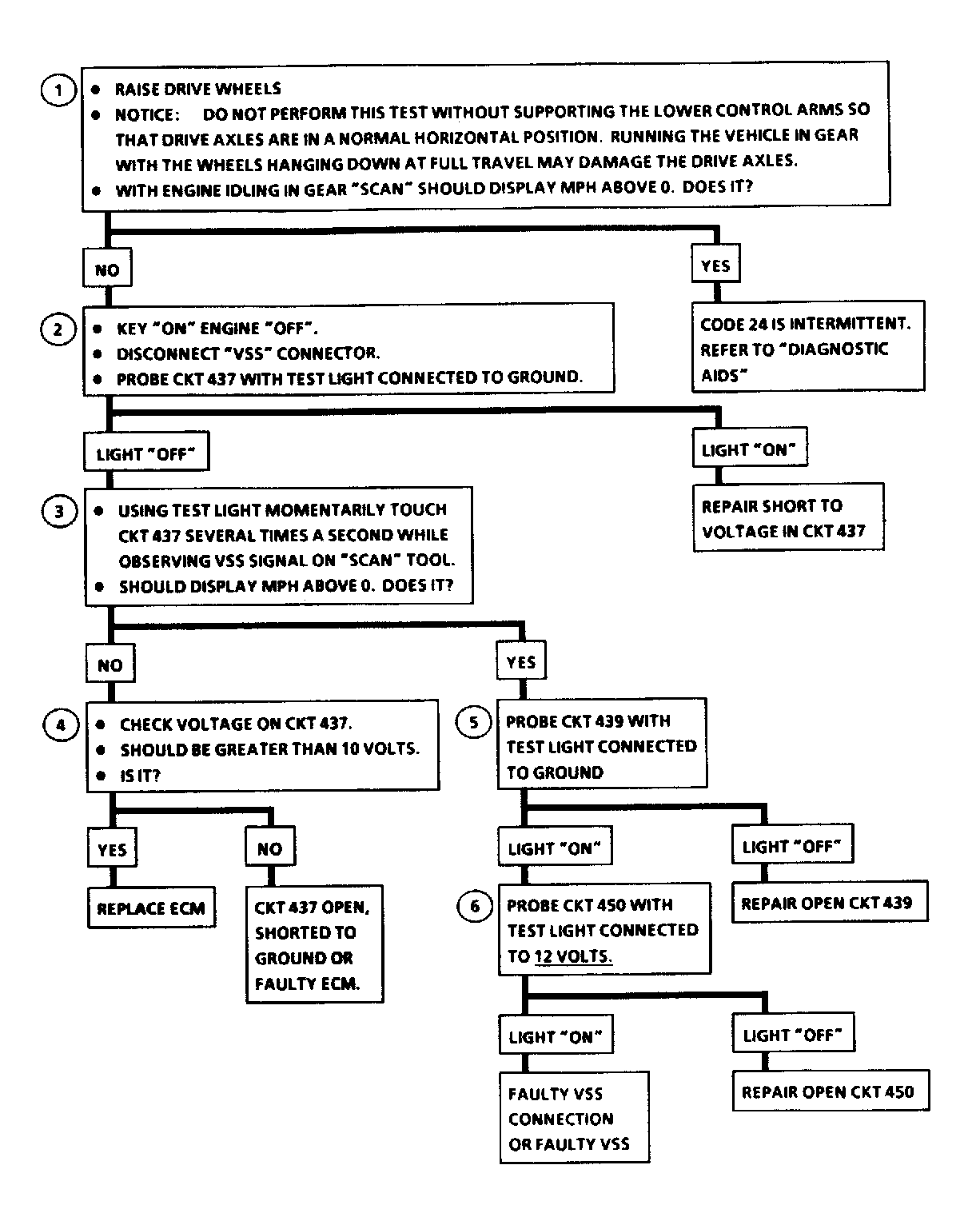

Fig 2: Flow Chart Code 24

Courtesy of GENERAL MOTORS CORP.
