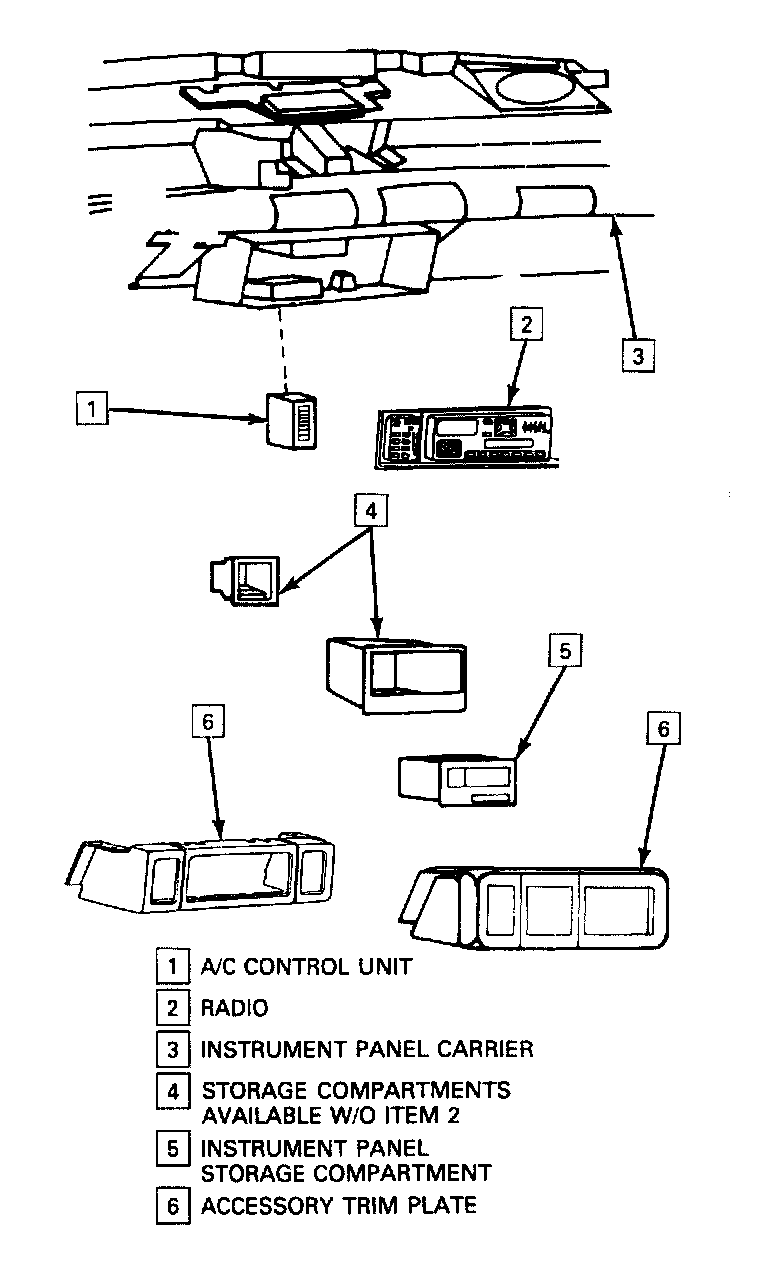

Control Assembly: Service and Repair

Remove or Disconnect
1. Accessory trim plate.
2. Screws on left side.
3. Control assembly.
4. Electrical connectors.

Install or Connect
1. Electrical connectors.
2. Control assembly.
3. Tighten screws to 2 Nm (18 lb. in.).
4. Accessory trim plate.
