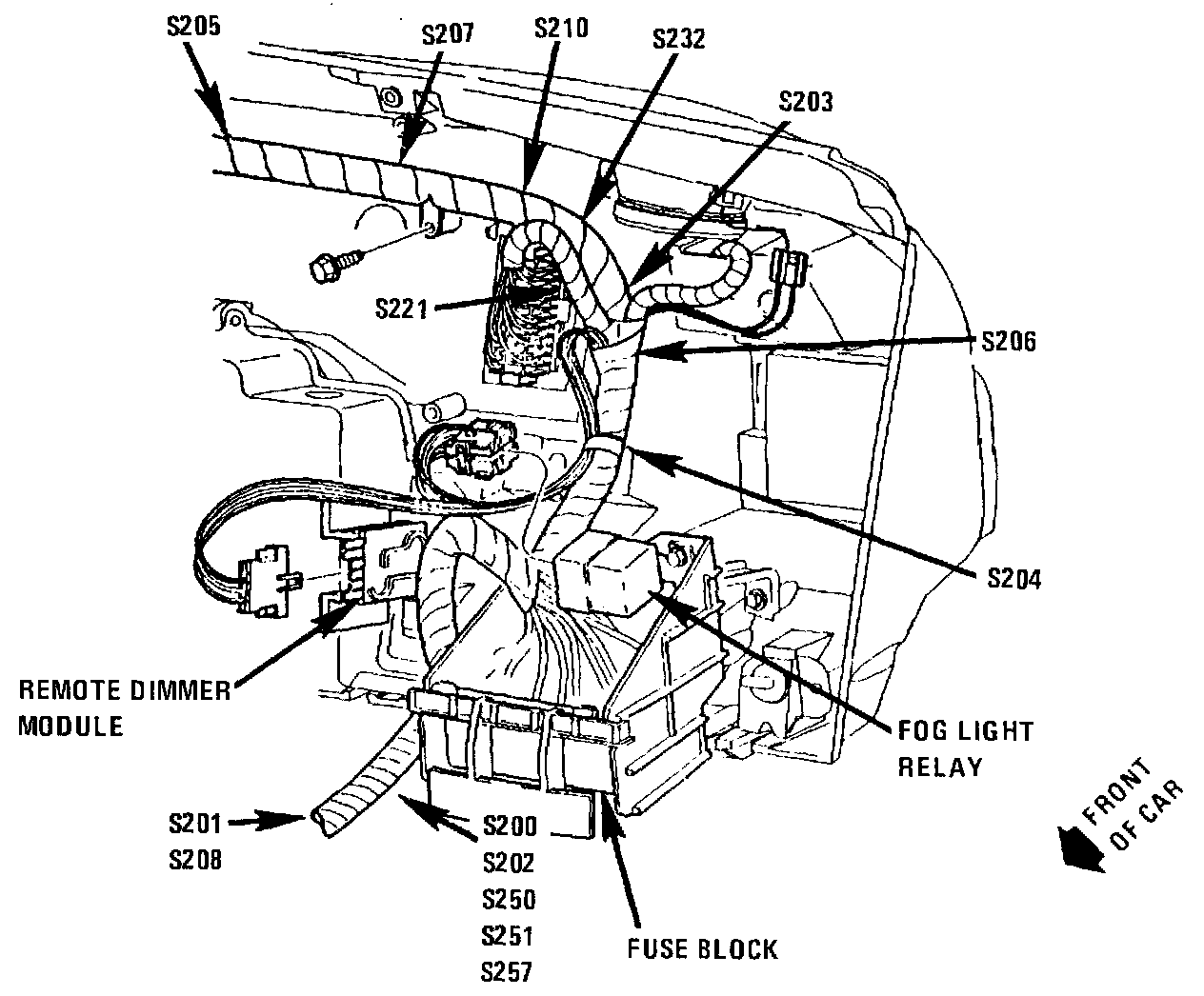

Remote Dimmer Module

LH Rear Side Of I/P:





Behind I/P, On LH Side Of Steering Column Bracket

Applicable to: 1991 Sunbird
