Component Locations

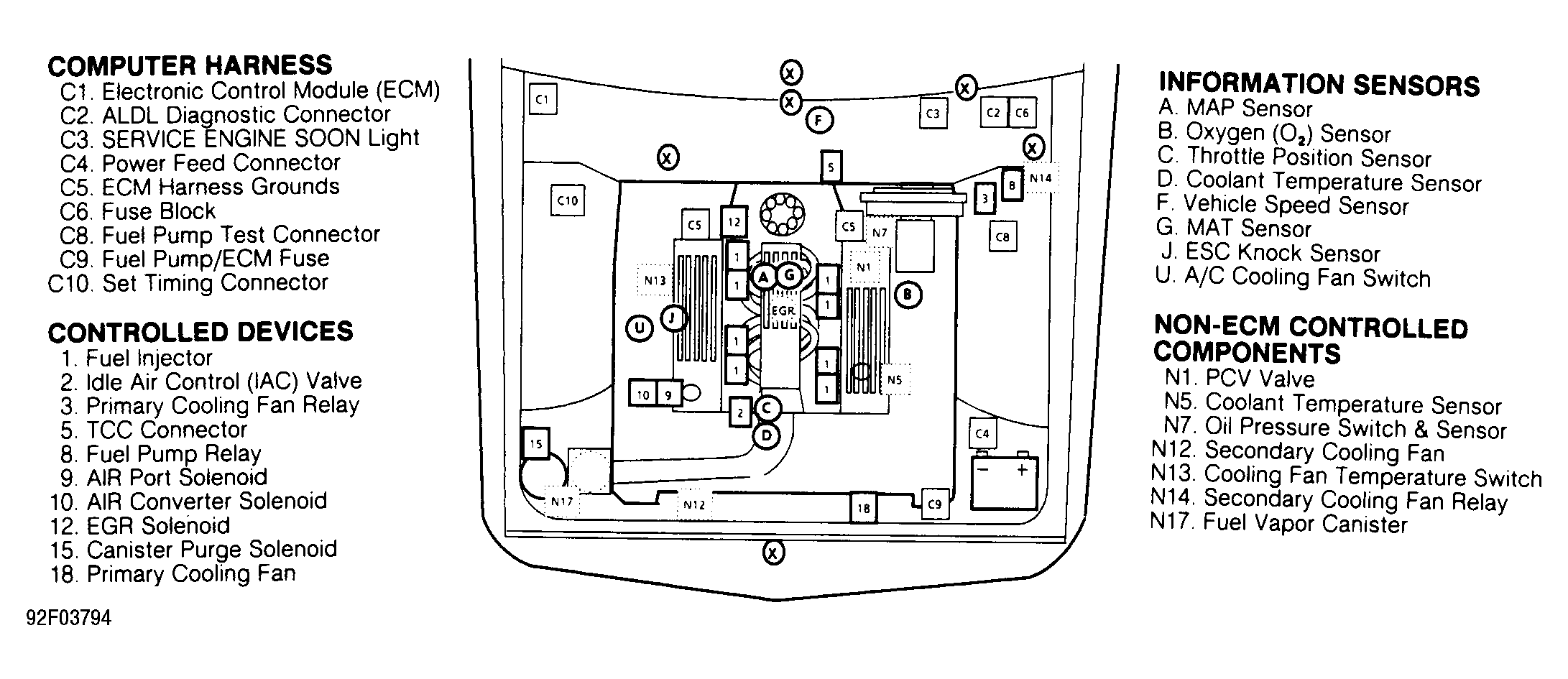

Fig 1: Component Locations (3.1L VIN T - "F" Body)
Courtesy of GENERAL MOTORS CORP.

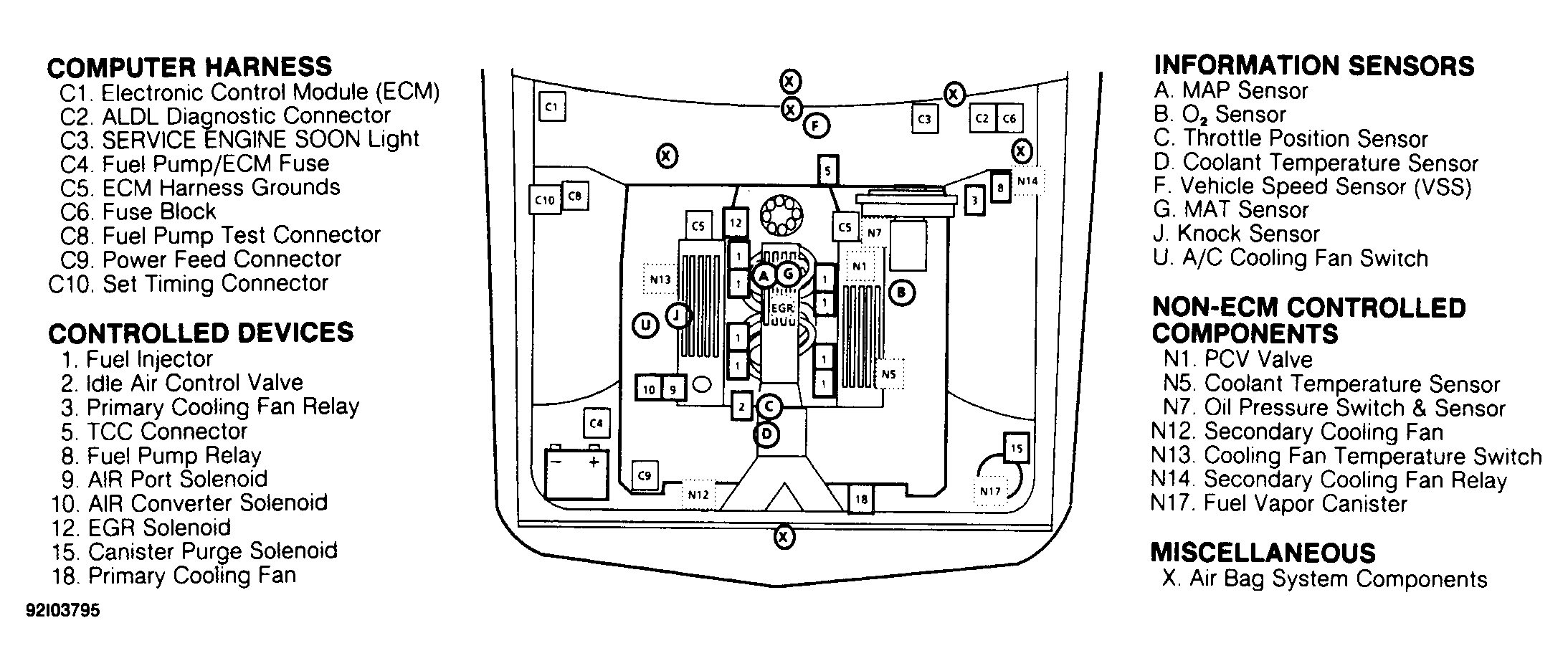

Fig 2: Component Locations (5.0L VIN E - "F" Body)
Courtesy of GENERAL MOTORS CORP.

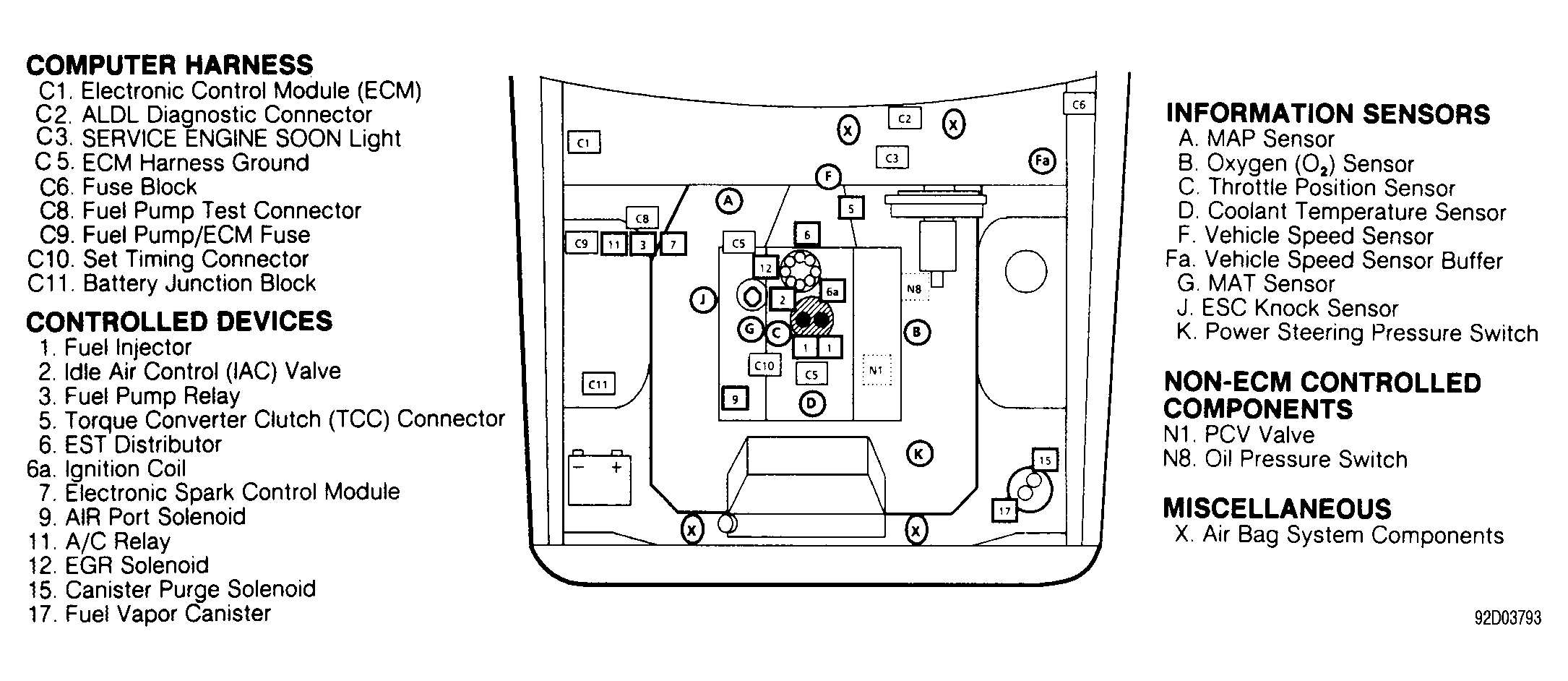

Fig 3: Component Locations (5.0L VIN F & 5.7L VIN 8 - Camaro)
Courtesy of GENERAL MOTORS CORP.

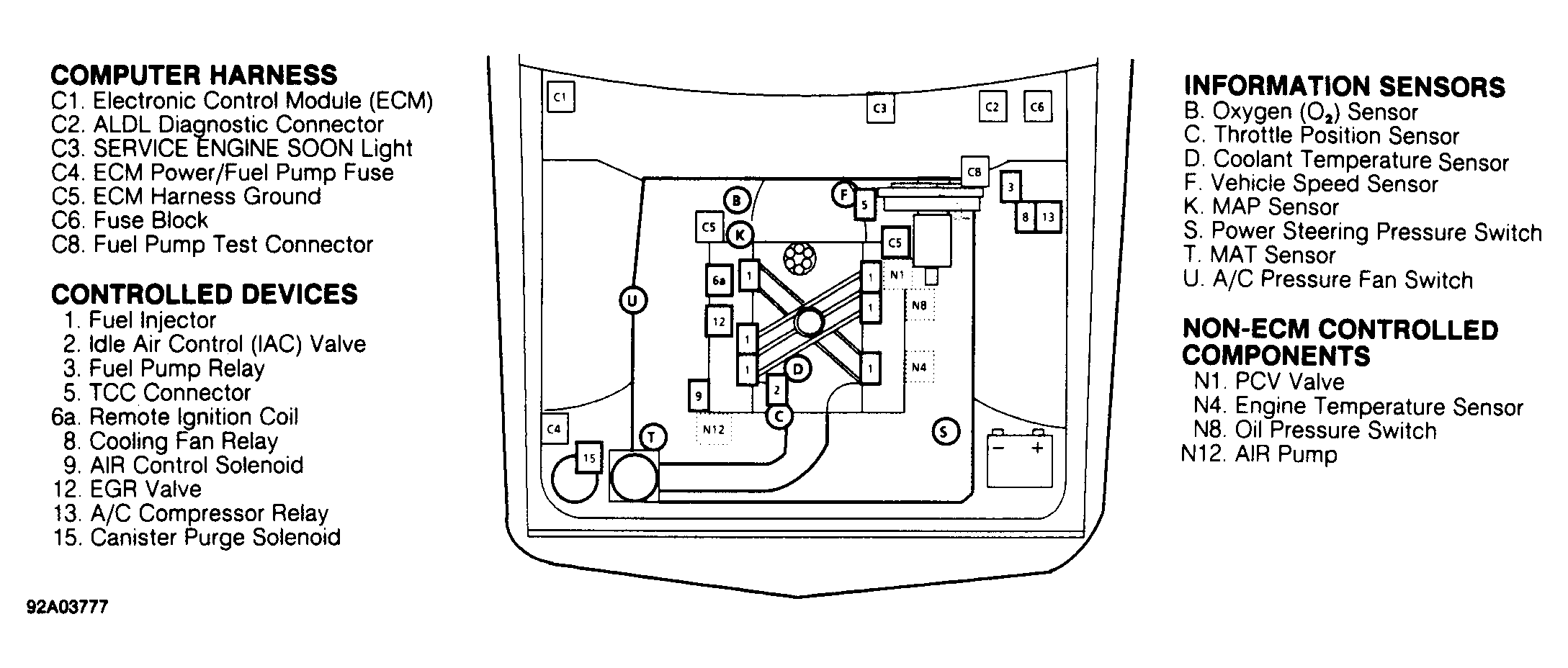

Fig 4: Component Locations (5.0L VIN F & 5.7L VIN 8 - Firebird)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
