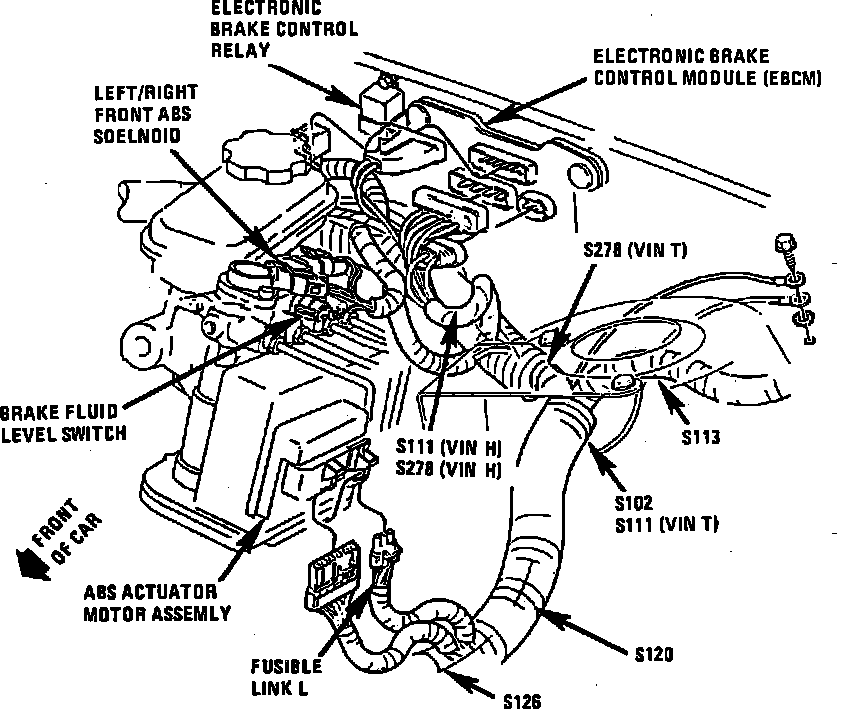

Electronic Brake Control (EBCM) Module

LH Side Of Dash.:

LH Front Of Dash

Applicable to: 1992 Sunbird
