Diagnostic Aids

The Code 32 diagnostic flow chart is a functional check of the EGR system. If the EGR system is working correctly, but a Code 32 has been set, check the following items affecting ECM block learn values.

• EGR Passages Restricted Or Blocked.
• MAP Sensor - See I - SYS/COMP TESTS article in the ENGINE PERFORMANCE Section.

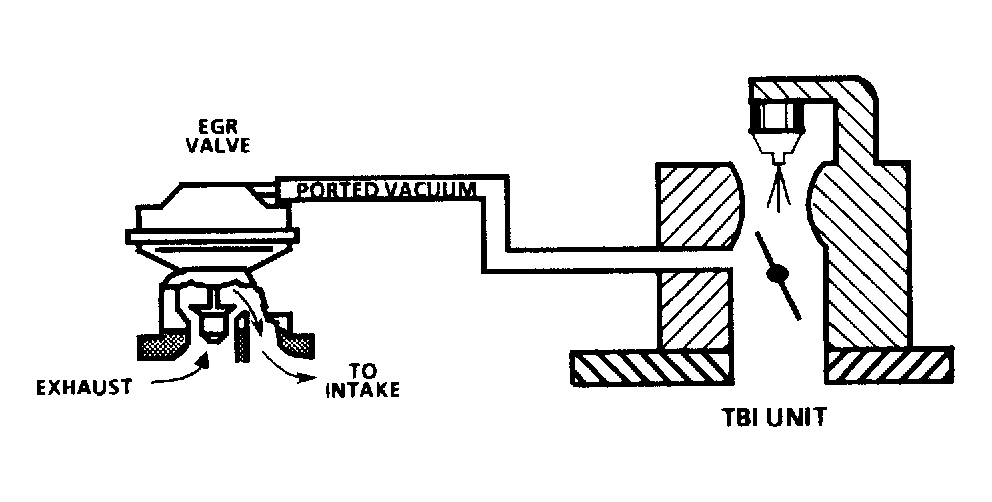

Fig 1: Code 32 Diagram - EGR System Error

Courtesy of GENERAL MOTORS CORP.

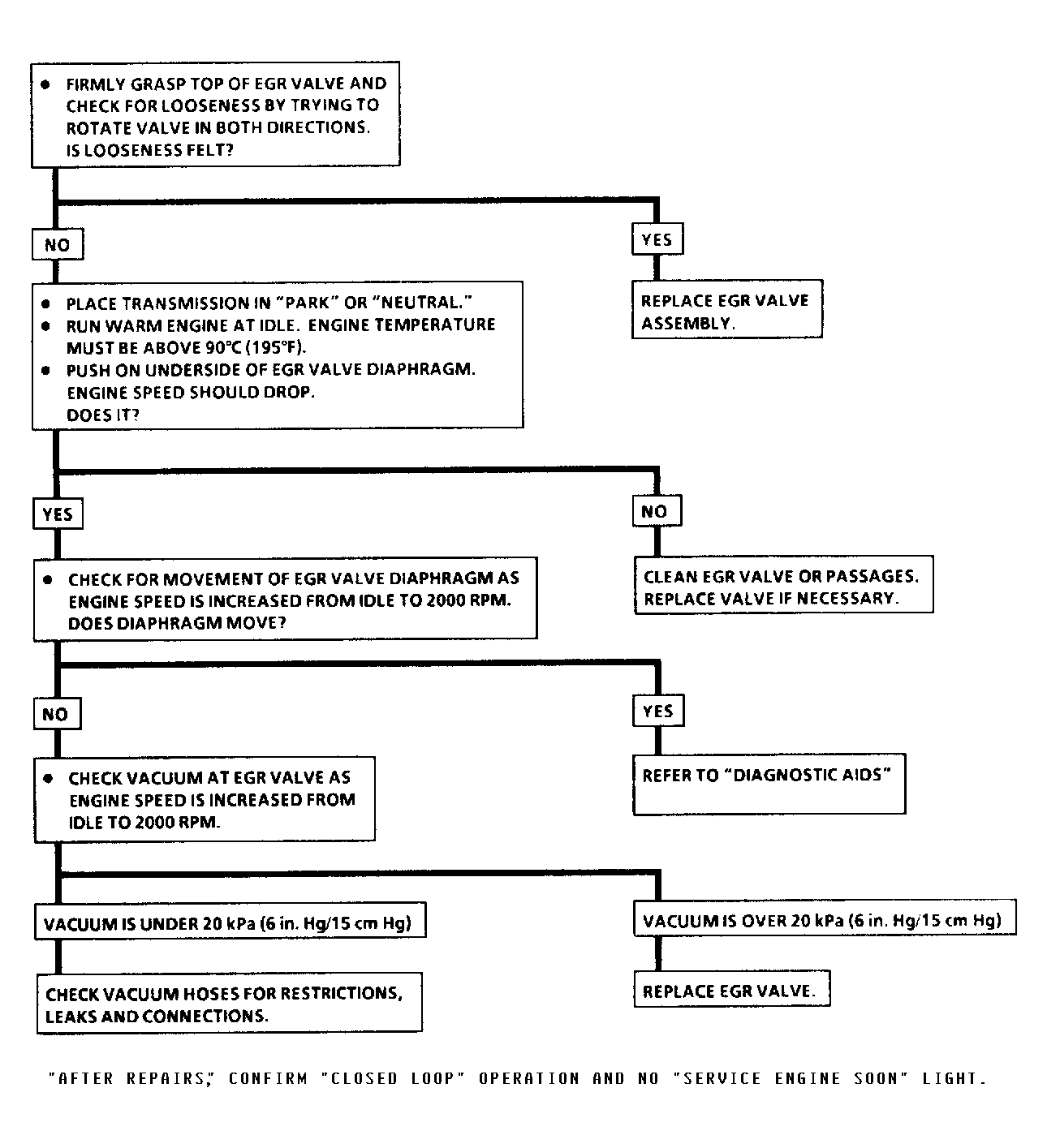

Fig 2: Code 32 Flow Chart - EGR System Error

Courtesy of GENERAL MOTORS CORP.
