Air Flow Meter/Sensor: Service and Repair

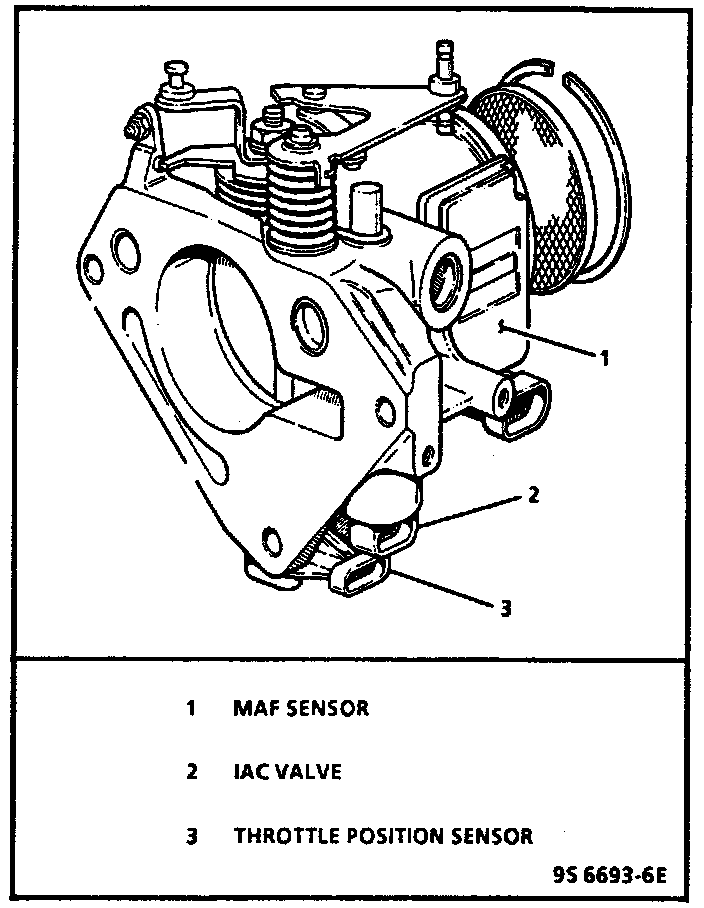

Throttle Body With MAF:

The MAF sensor on this engine is attached to the throttle body assembly. To remove follow the steps listed below.

Removal

1. Disconnect 3 wire electrical connector.
2. Remove 3 screws holding MAF sensor to throttle body.

Installation

1. Install 3 screws holding MAF to throttle body.
2. Reconnect electrical connector.
