Diagnostic Aids

An intermittent 24X signal and Code 36 can be caused by poor connections. Visually and physically check connections.

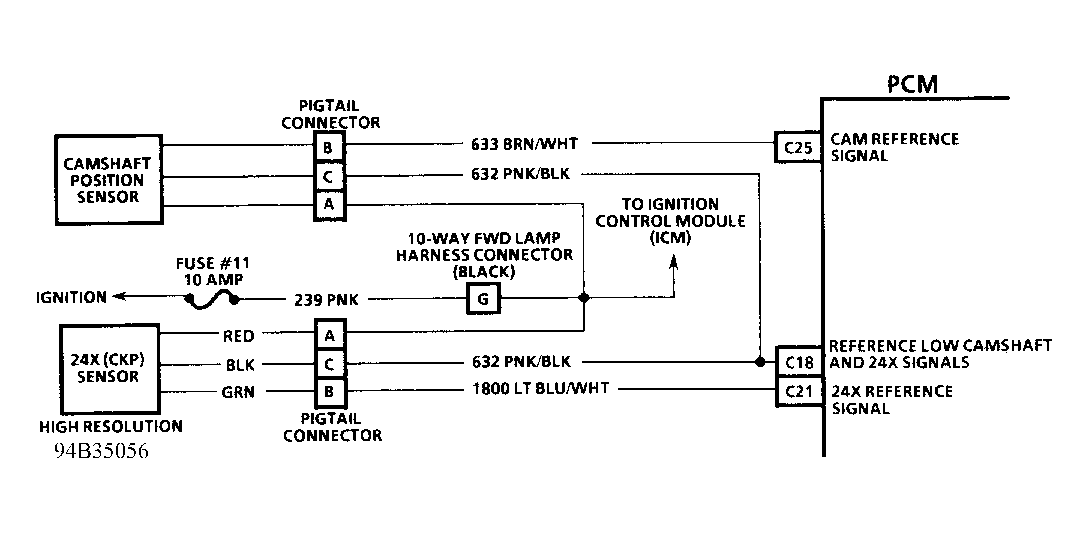

Fig 1: Code 36 Schematic (3.4L) 24X Signal Error

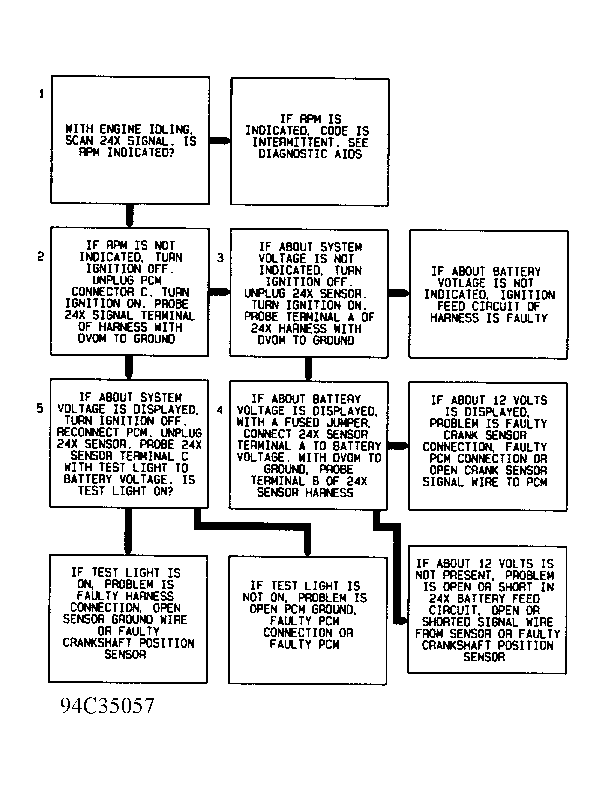

Fig 2: Code 36 Flow Chart (3.4L) 24X Signal Error
