Diagnostic Aids

Scan tester does not have the ability to help diagnose Code

Fig 1: Code 41 Schematic (3.4L) Cylinder Select Error

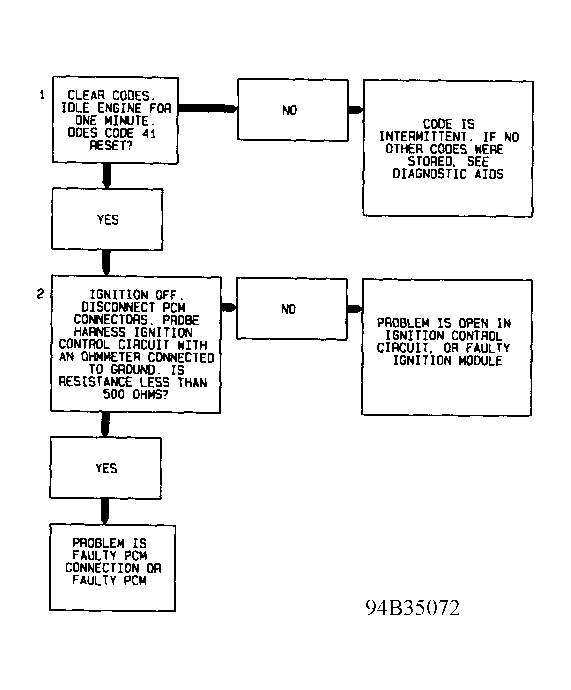

Fig 2: Code 41 Flow Chart (3.4L) Cylinder Select Error

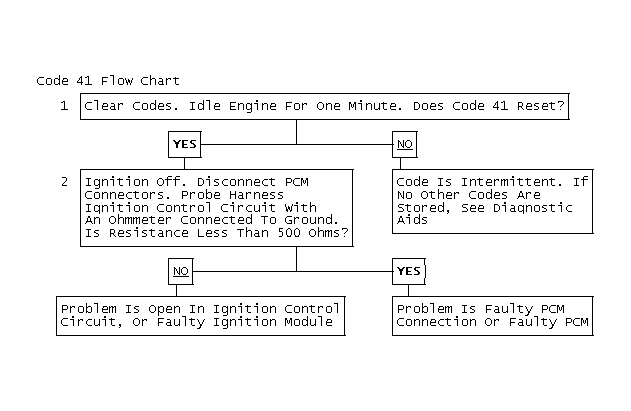

Fig 3: Code 41 Flow Chart
