Diagnostic Aids

Scan tester does not have ability to help diagnose a Code 42 problem. See INTERMITTENTS in TESTS W/O CODES article in this section.

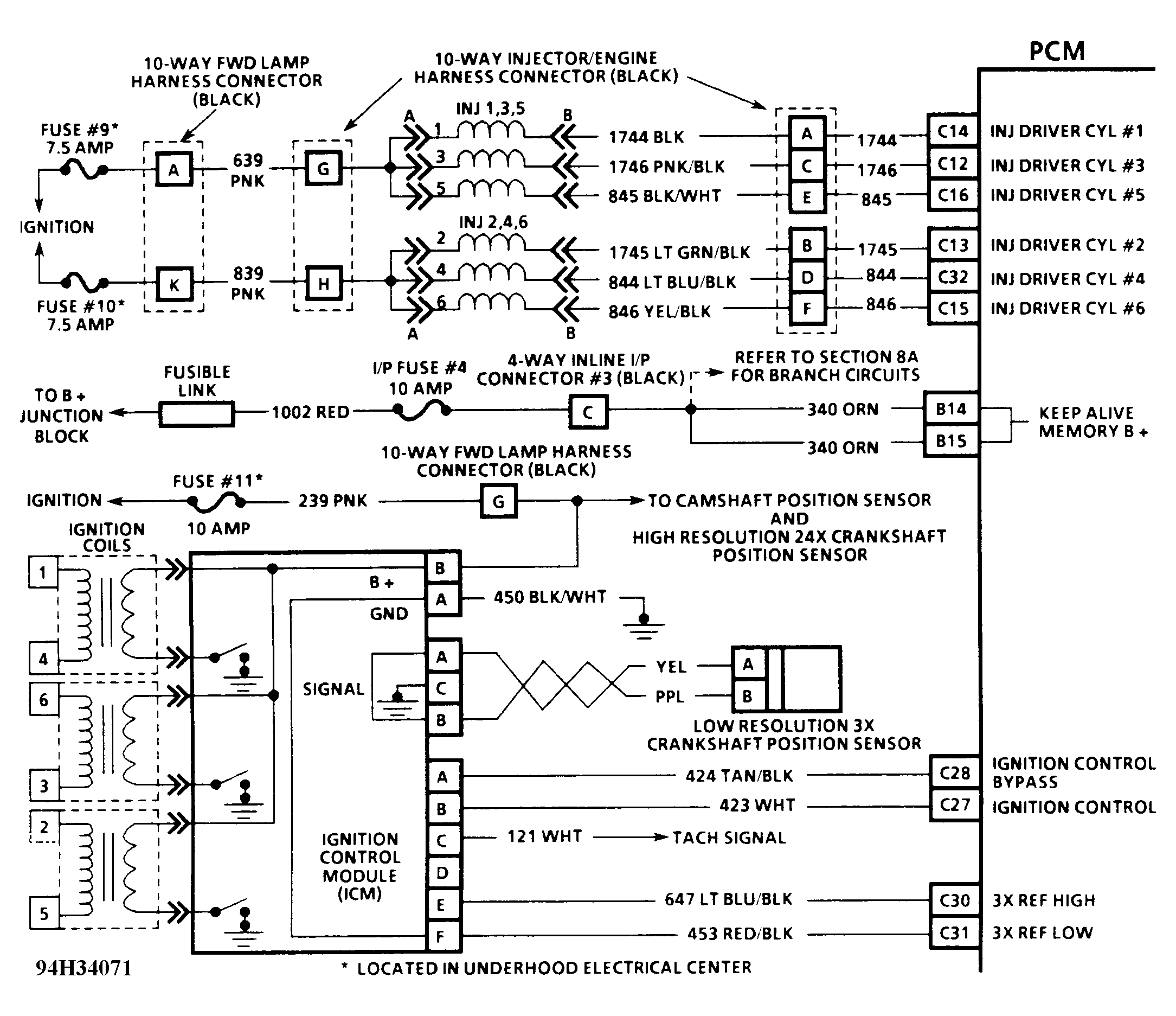

Fig 1: Code 42 Schematic (3.4L) IC Circuit Open/Grounded
G94H34071

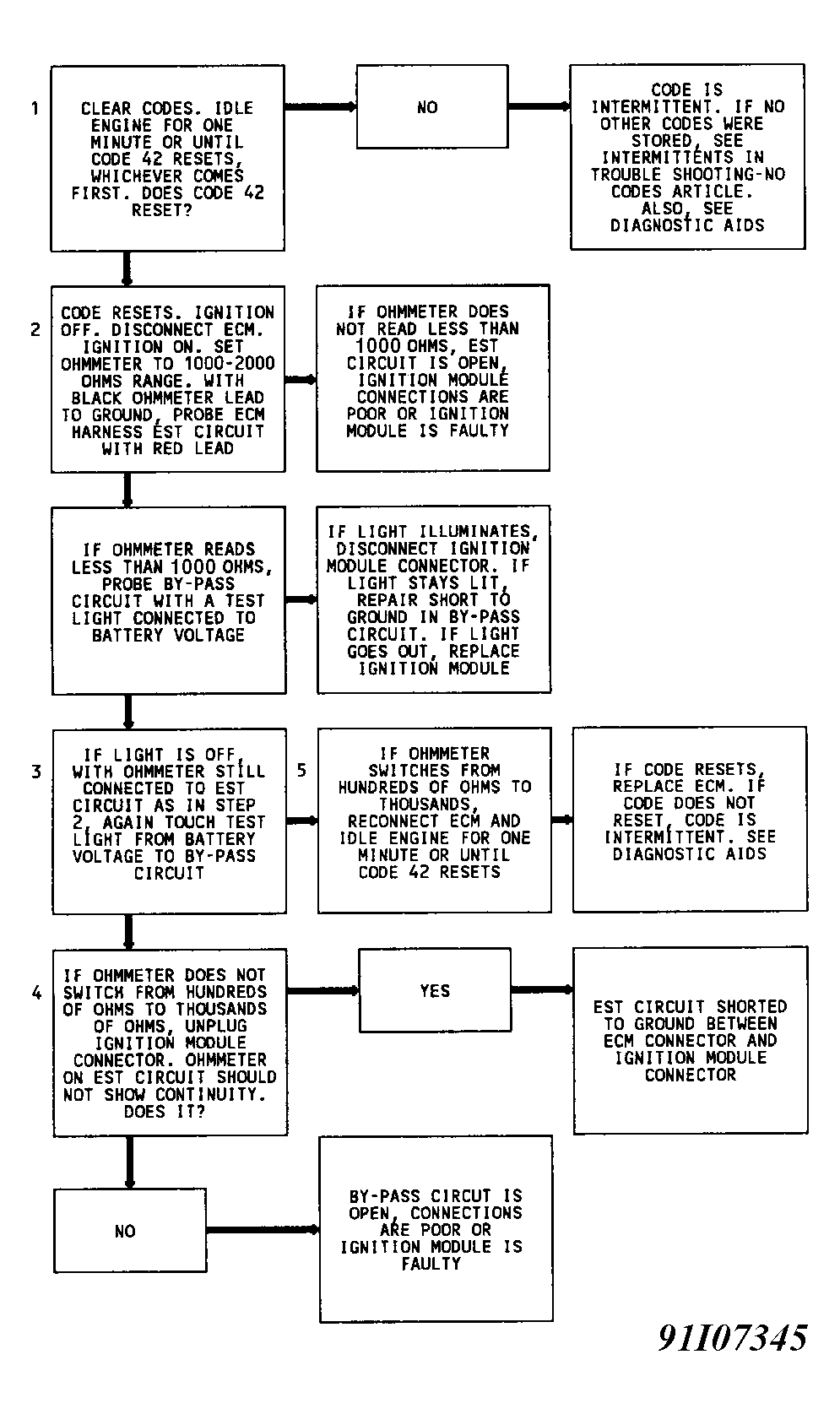

Fig 2: Code 42 Flow Chart (3.4L) IC Circuit Open/Grounded
G91I07345
