Diagnostic Aids

A Code 67 will store in PCM memory but will not turn on the SERVICE ENGINE SOON light.

Fig 1: Code 67 Schematic (3.4L) A/C Pressure Sensor

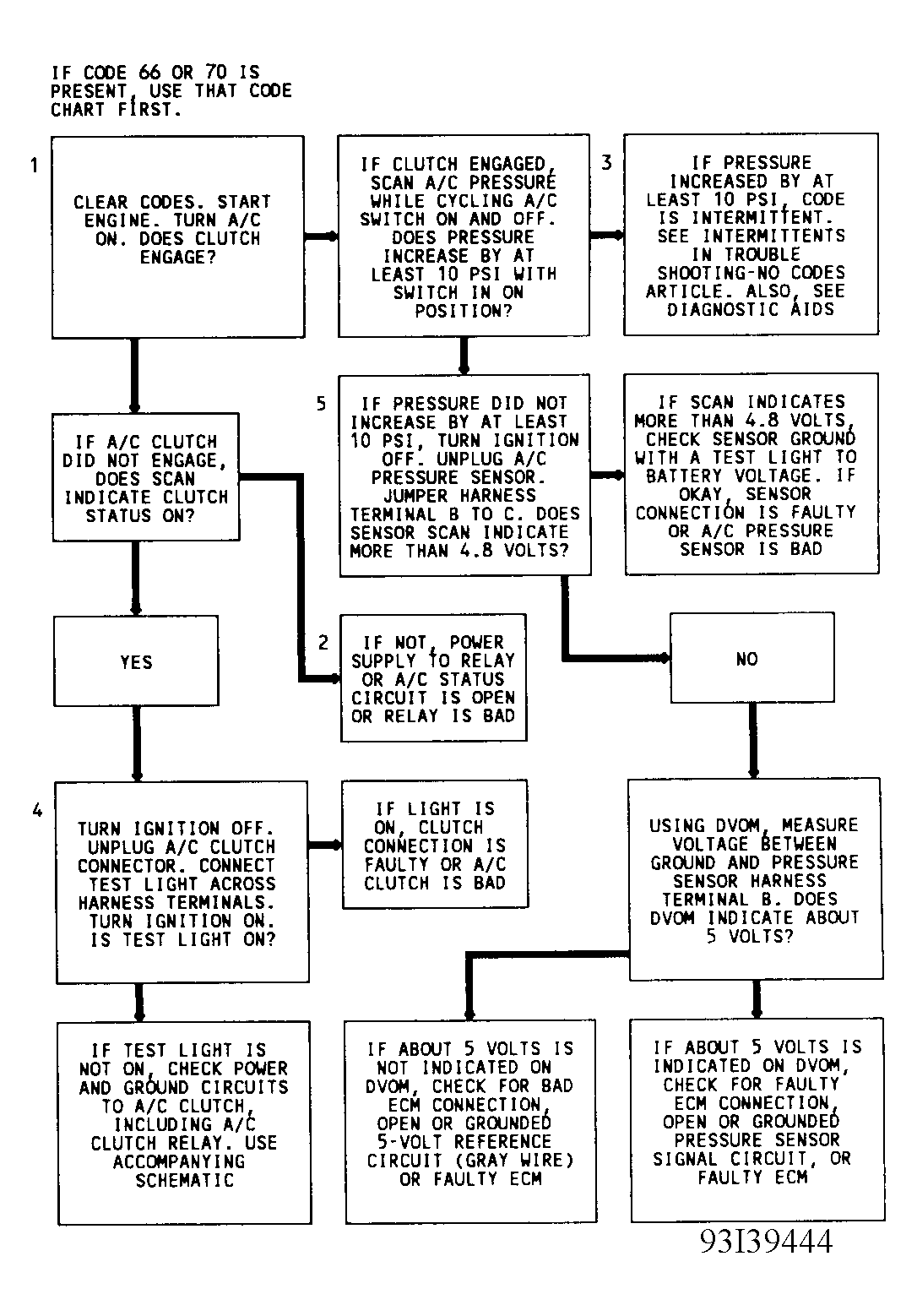

Fig 2: Code 67 Flow Chart (3.4L) A/C Pressure Sensor
