Diagnostic Aids

Code 71 will set when signal voltage falls outside the normal range of the sensor and is not due to a refrigerant system problem. If problem is intermittent, check for opens or shorts in the harness or poor connections. A sensor which has backed out of the evaporator coil bracket will also set a false code.

Fig 1: Code 71 Schematic (3.4L) Low A/C Temperature

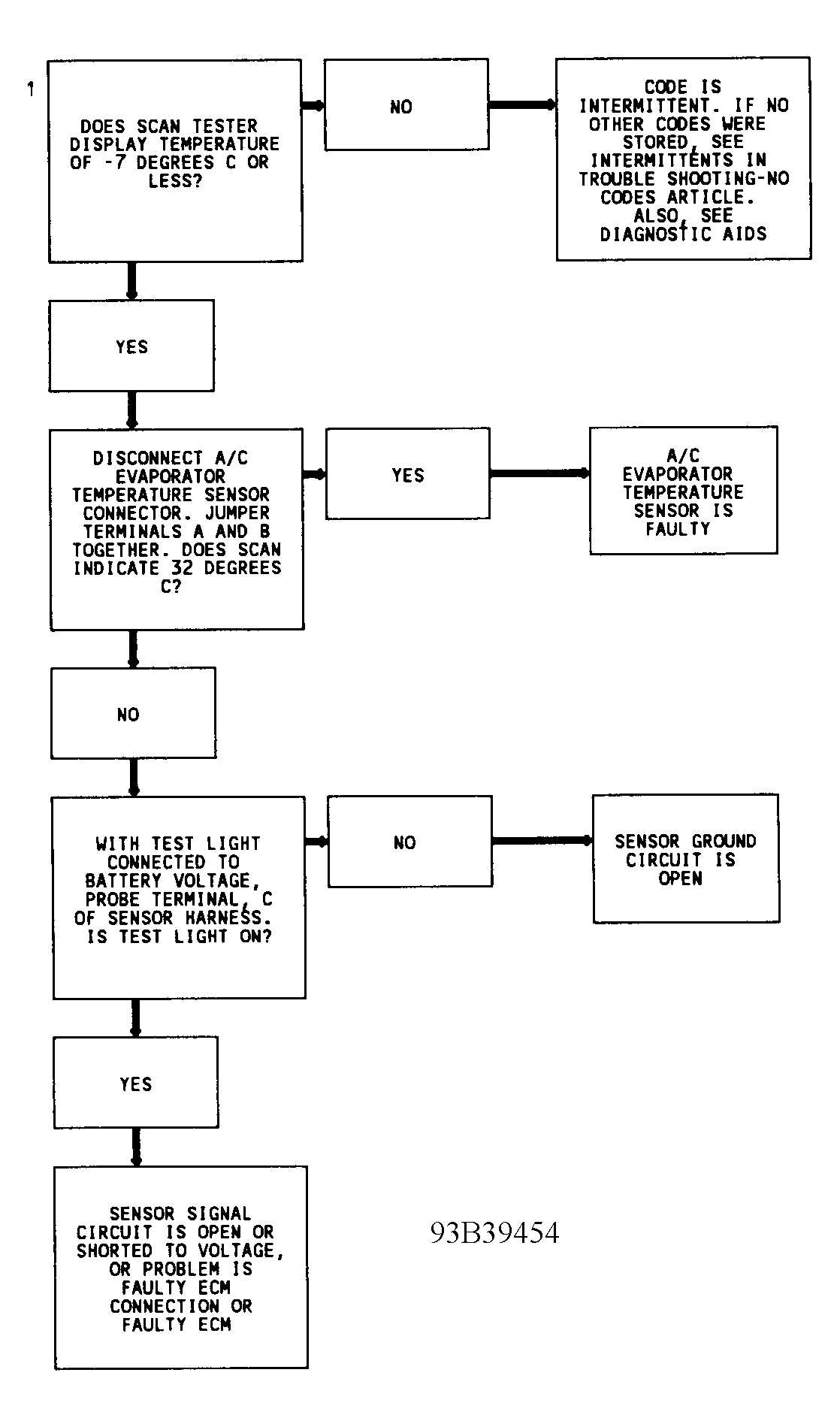

Fig 2: Code 71 Flow Chart (3.4L) Low A/C Temperature
