Diagnostic Aids

The A/C evaporator temperature sensor and harness is located under the passenger side instrument panel.

Fig 1: Code 71 Schematic (5.7L) A/C Temperature (Circuit Open Or Shorted)

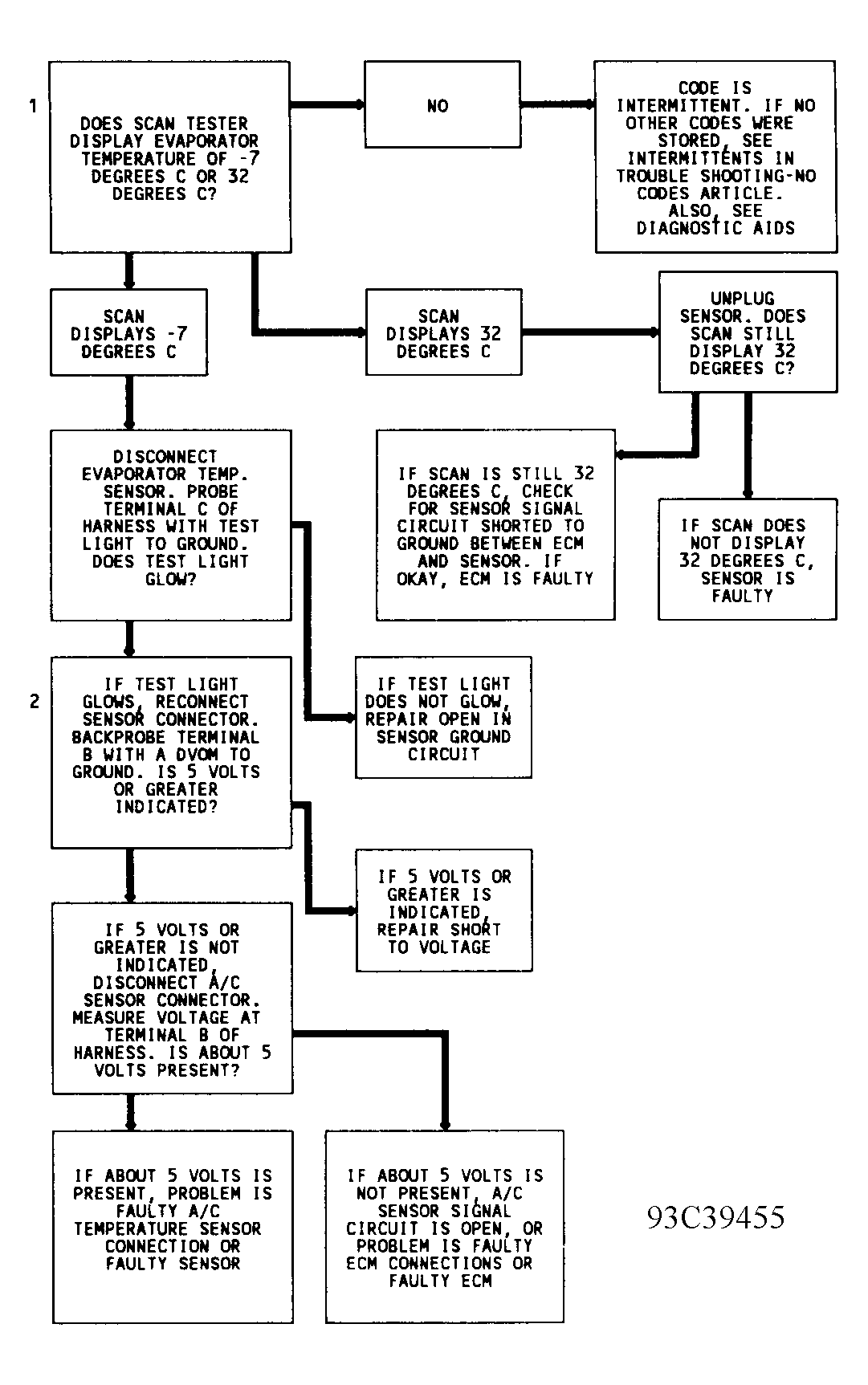

Fig 2: Code 71 Flow Chart A/C Temperature (Circuit Open Or Shorted)
