Vehicle Zoning

Vehicle Zoning:

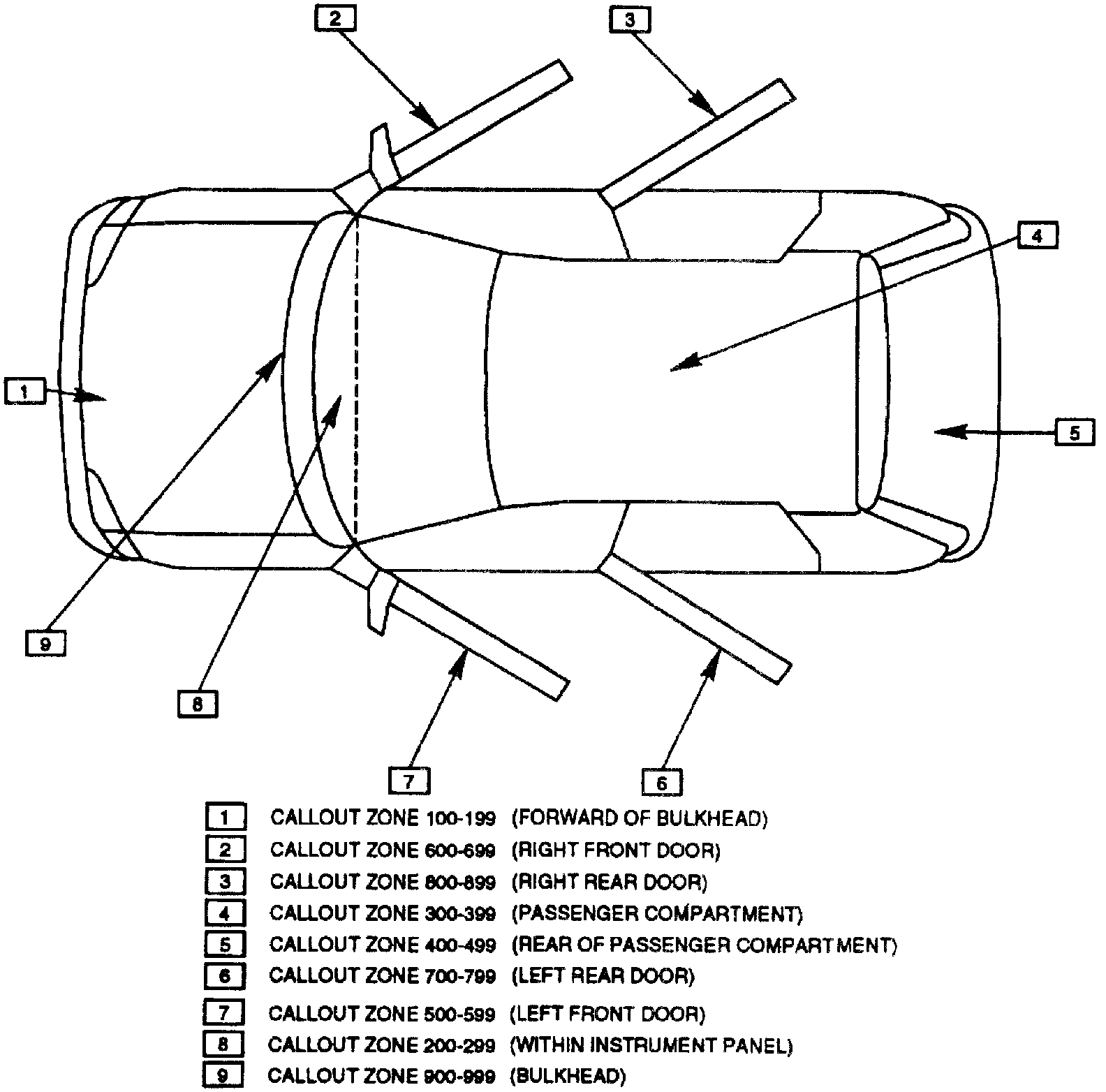

All connectors, grounds, splices and grommets are labeled with numbers with correspond to specific areas of the vehicle. These numbers will help you to locate a connector, ground, splice or grommets in the vehicle. For example, connector C605 will be located somewhere in the right front door. For further information regarding these locations and labels, refer the Image.
