Body Control Module: Service and Repair

Description:

Remove or Disconnect
1. Battery ground (negative) cable.
2. Left instrument panel insulator.
3. BCM electrical connectors.

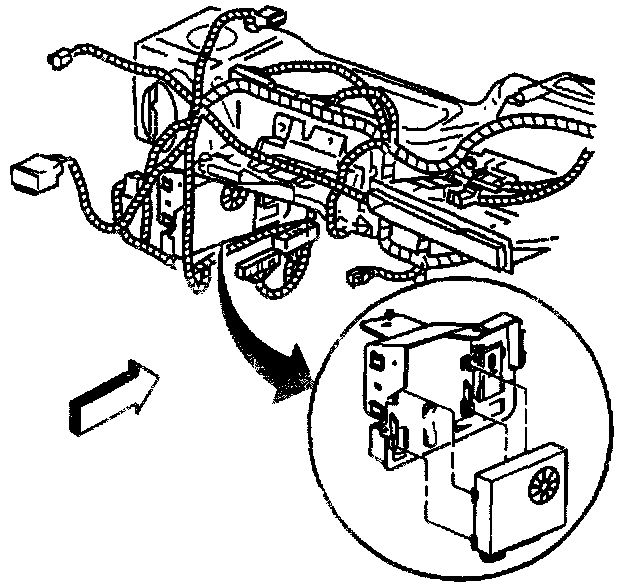

4. BCM by pressing the retaining tab in and sliding the BCM down out of the mounting bracket.

Install or Connect
1. BCM by sliding it up into the mounting bracket until it stops (insure that the retaining tab will stop the BCM from sliding down and out of the mounting bracket).
2. BCM electrical connectors.
3. Left instrument panel insulator.
4. Battery ground (negative) cable.
