Air Flow Meter/Sensor: Service and Repair

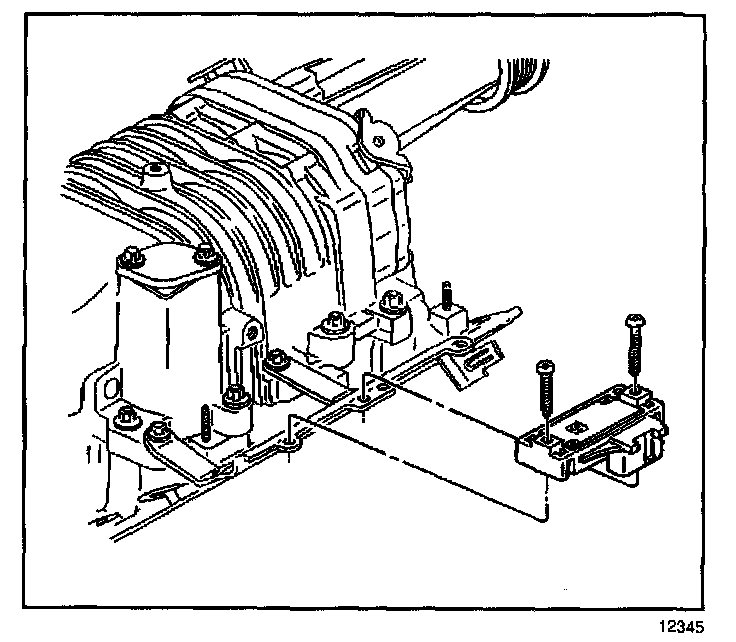

REMOVAL PROCEDURE
1. Remove the screws.
2. Disconnect the MAP sensor electrical connector and vacuum hose from the sensor.
3. Remove the MAP sensor.

INSTALLATION PROCEDURE
1. Connect the electrical connector and vacuum hose to the MAP sensor.
2. Position the MAP sensor to the bracket and secure with the screws.
