Ignition Control Module

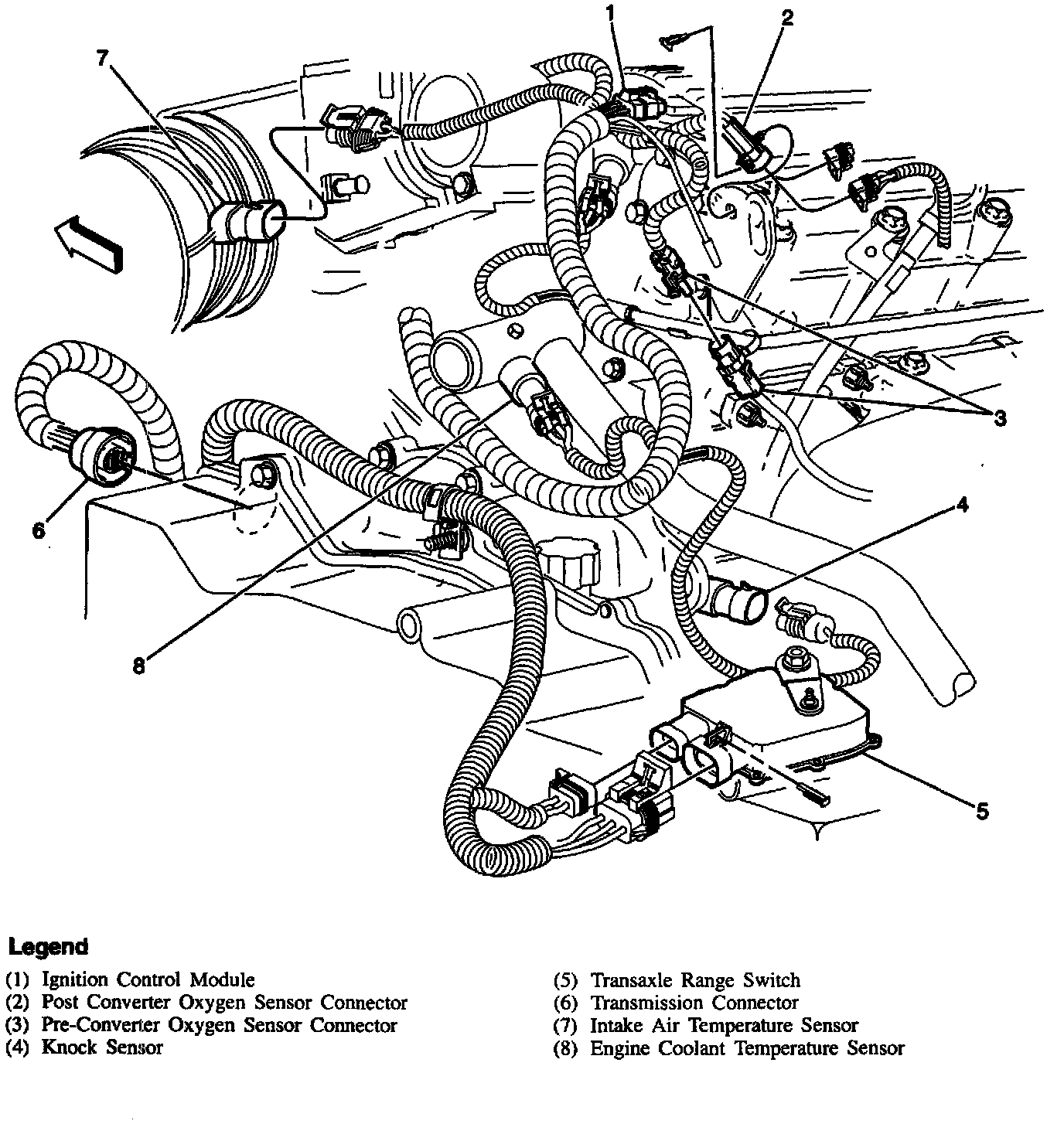

Component Location Views:

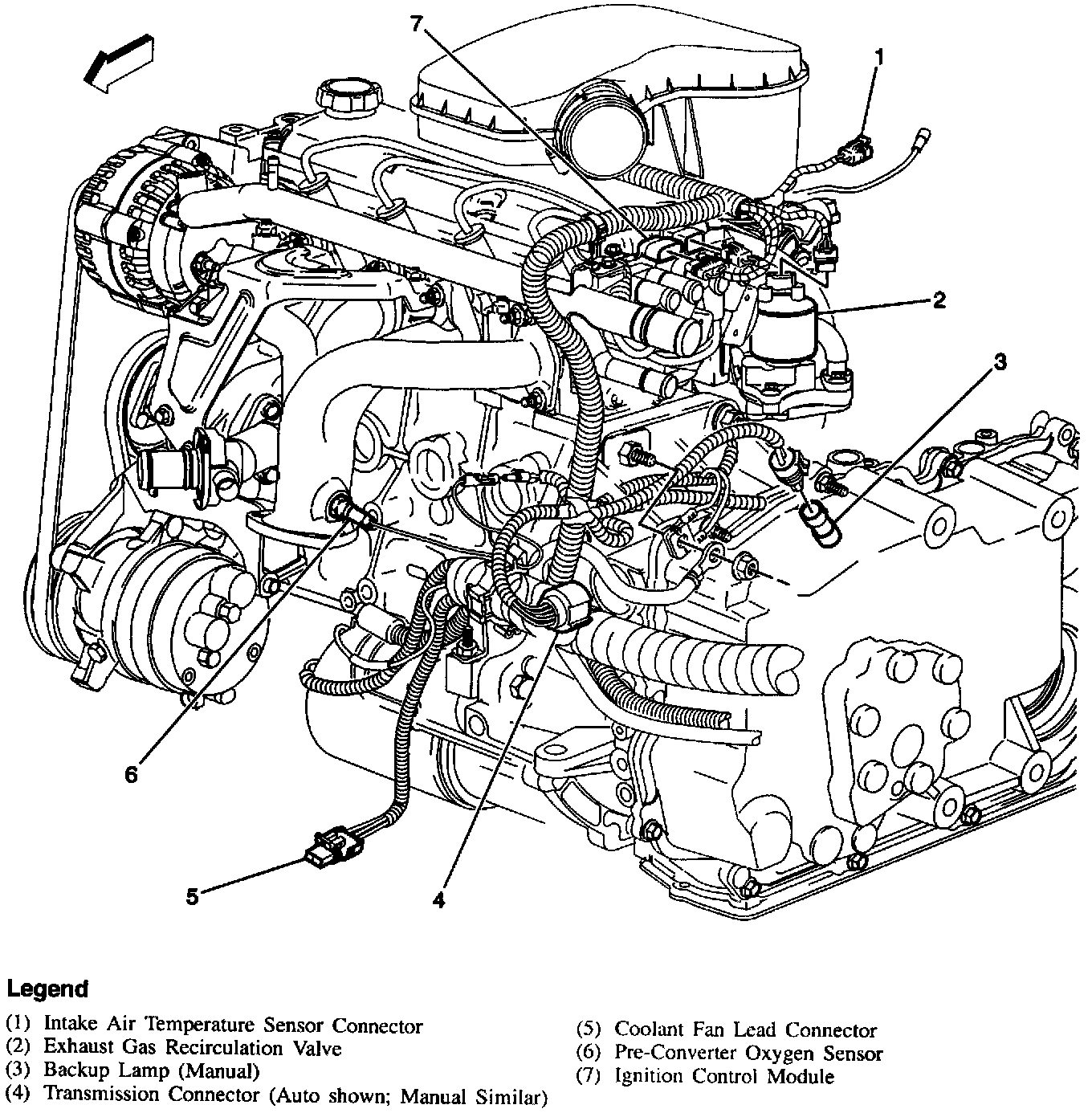

Component Location Views:

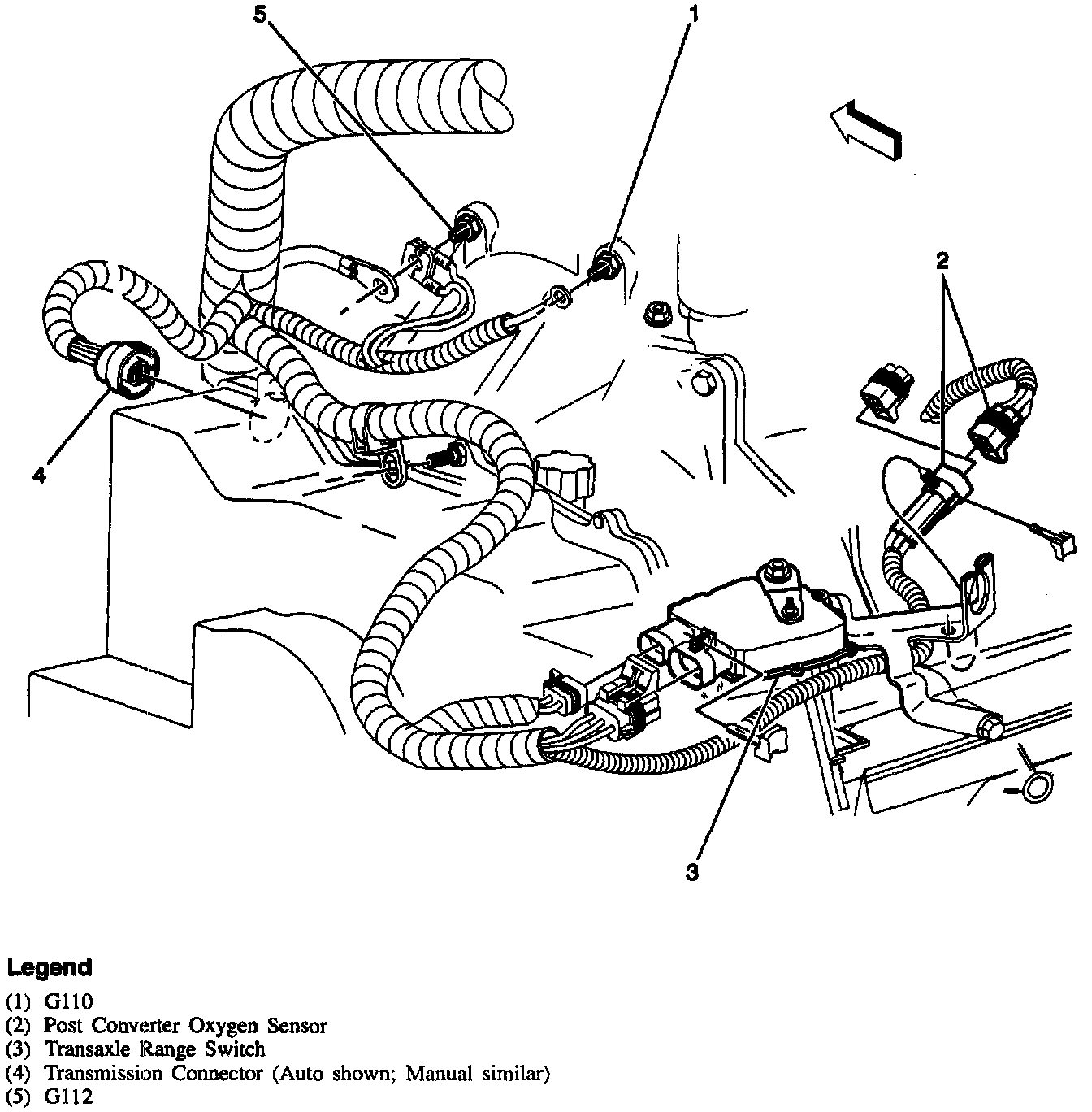

Component Location Views:
