Engine Control Module
>>
Diagrams
>>
Connector Views
>>
C1 (Blue)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

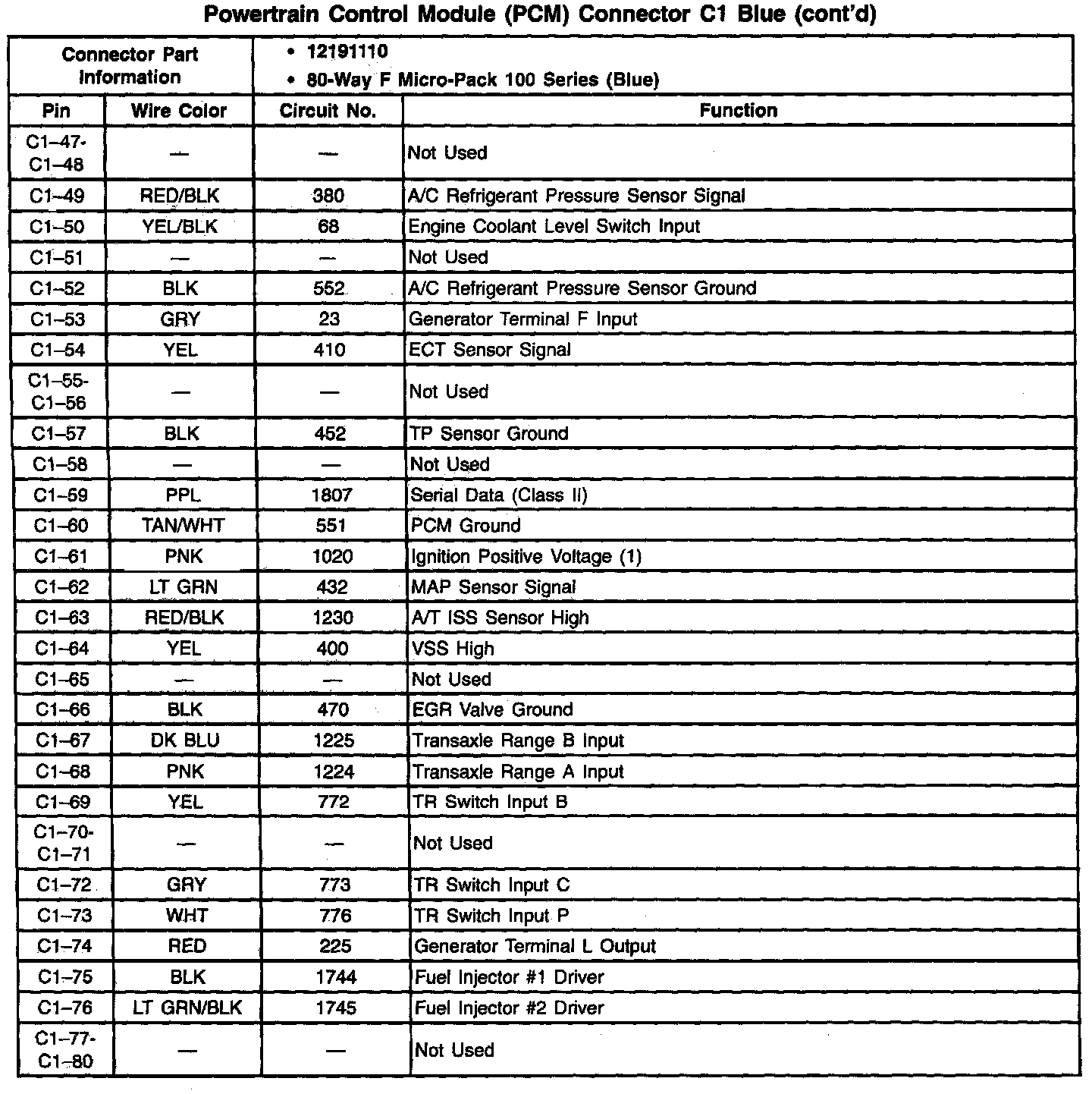

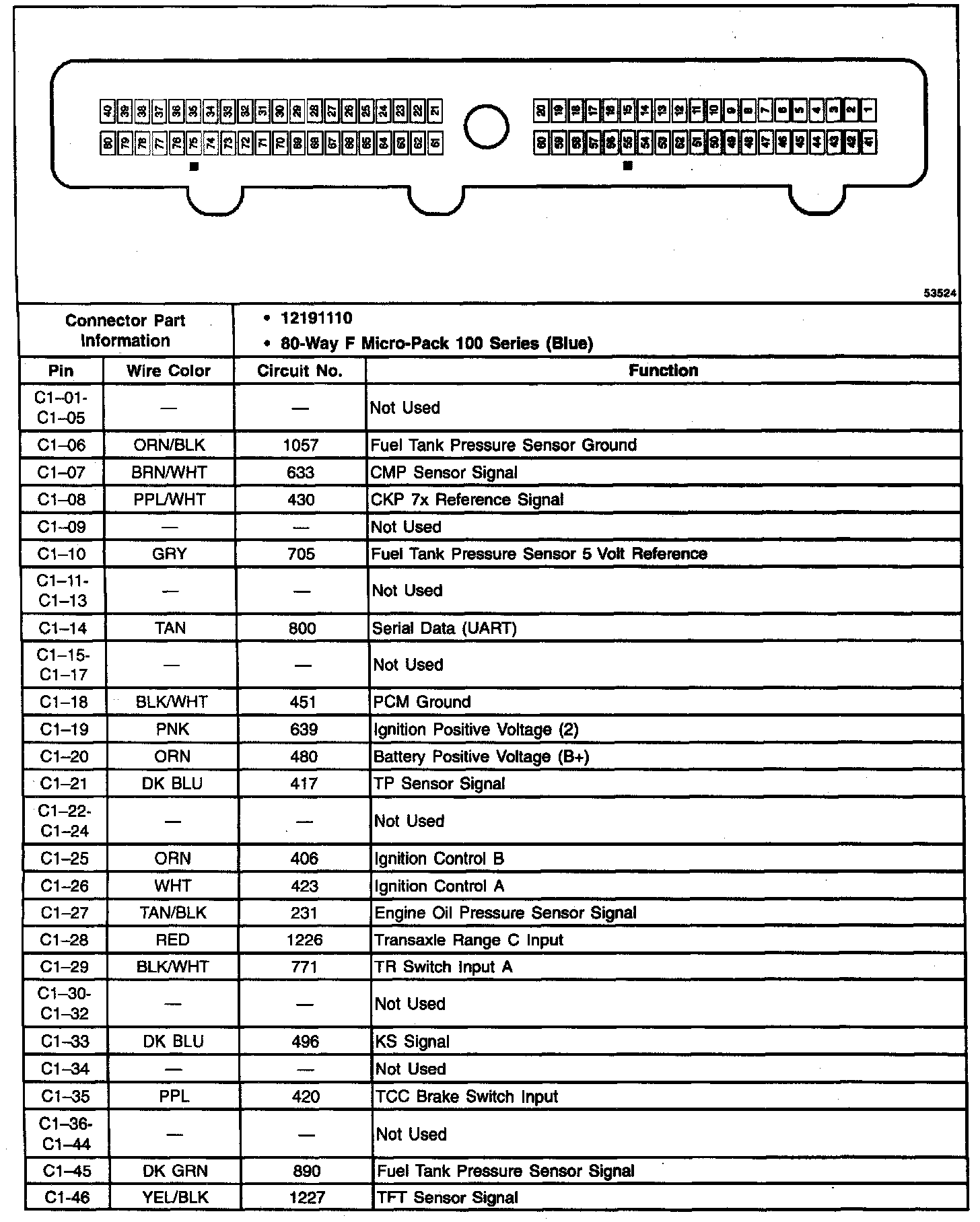

C1 (Blue)
Connector View:
Connector View:
