Ignition Control Module: Service and Repair

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Raise the vehicle. Suitably support the vehicle.

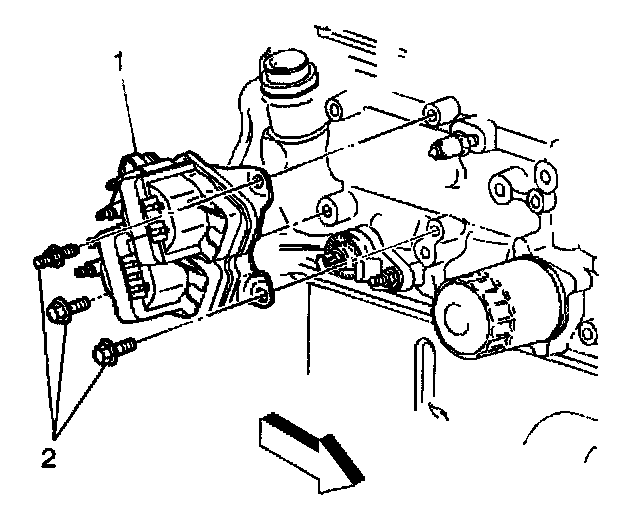

3. Remove the ignition coils from the module (1).
4. Remove the module from the assembly plate.

INSTALLATION PROCEDURE
1. Install the module to the assembly plate
2. Install the ignition coils.
3. Lower the vehicle.
4. Connect the negative battery cable.
