Engine

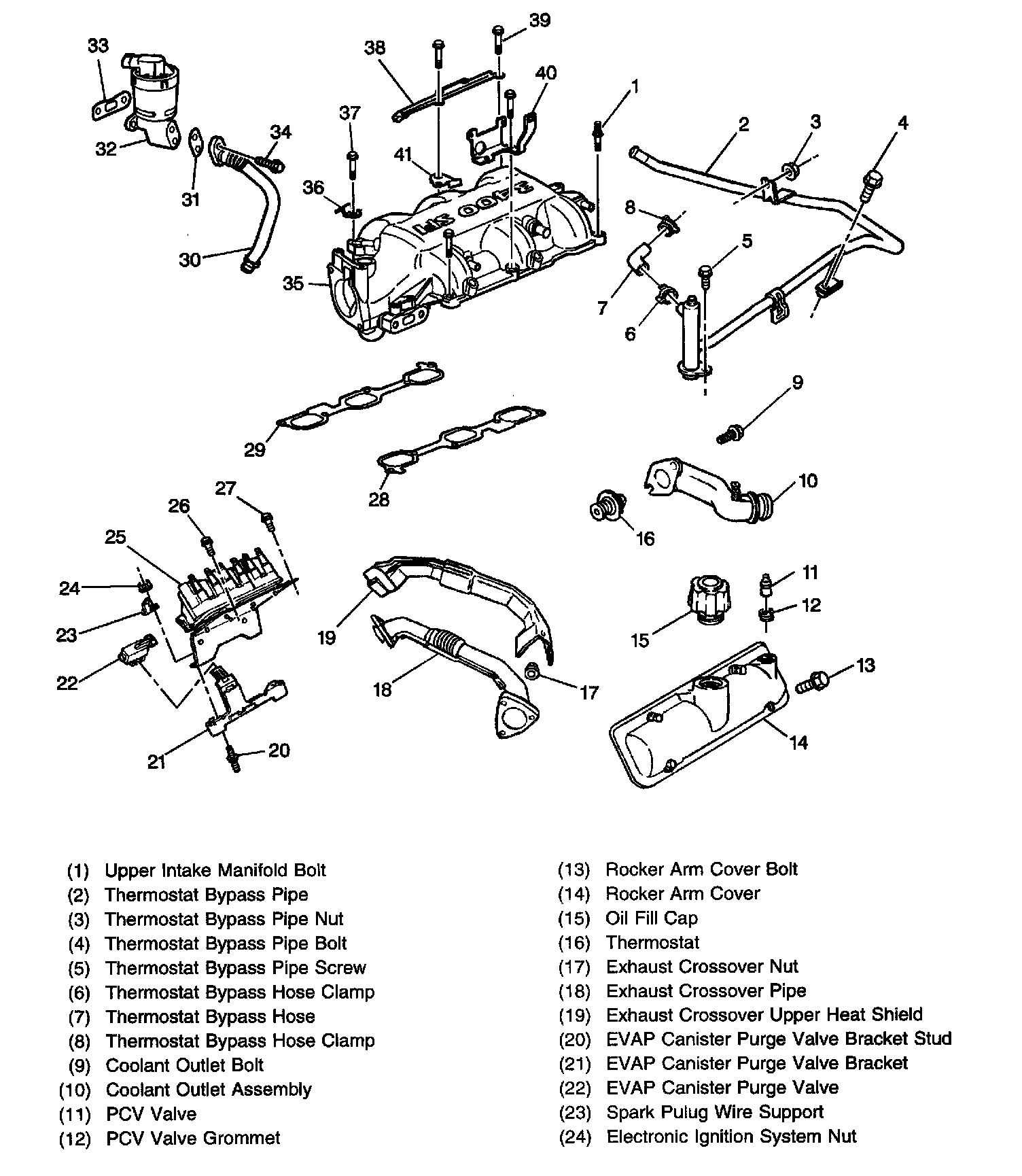

Upper Intake Manifold and Components





Part 1 of 2





Part 2 of 2

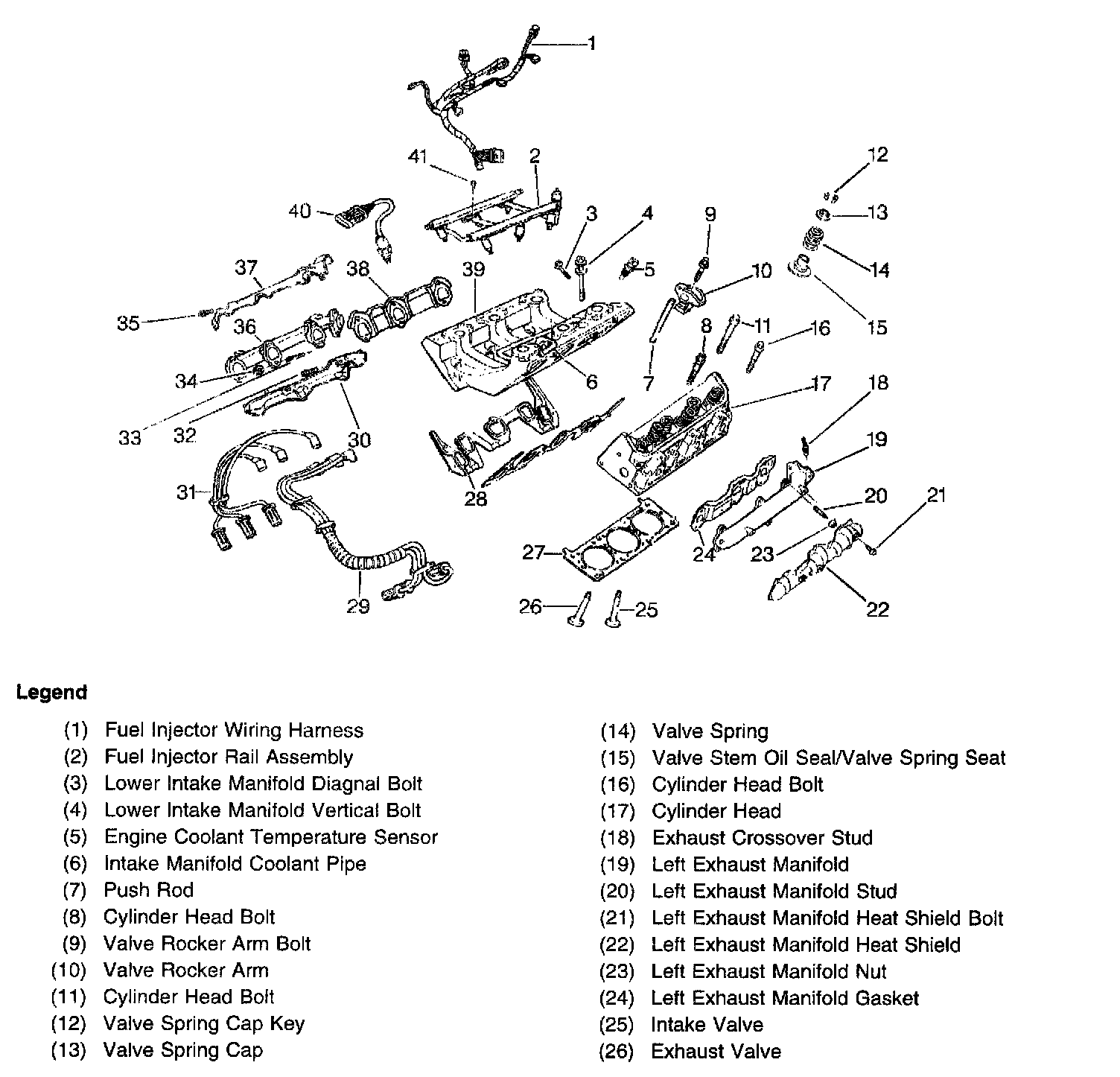

Lower Intake Manifold, Cylinder Head, and Components





Part 1 of 2





Part 2 of 2

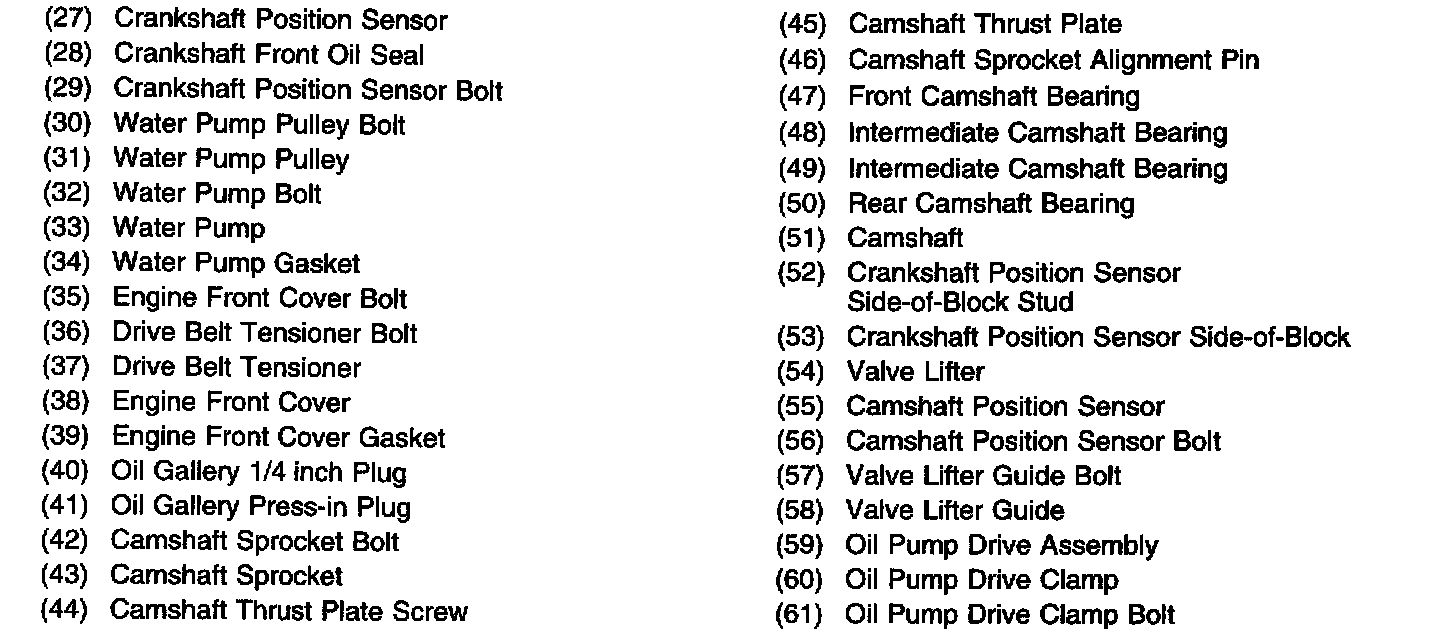

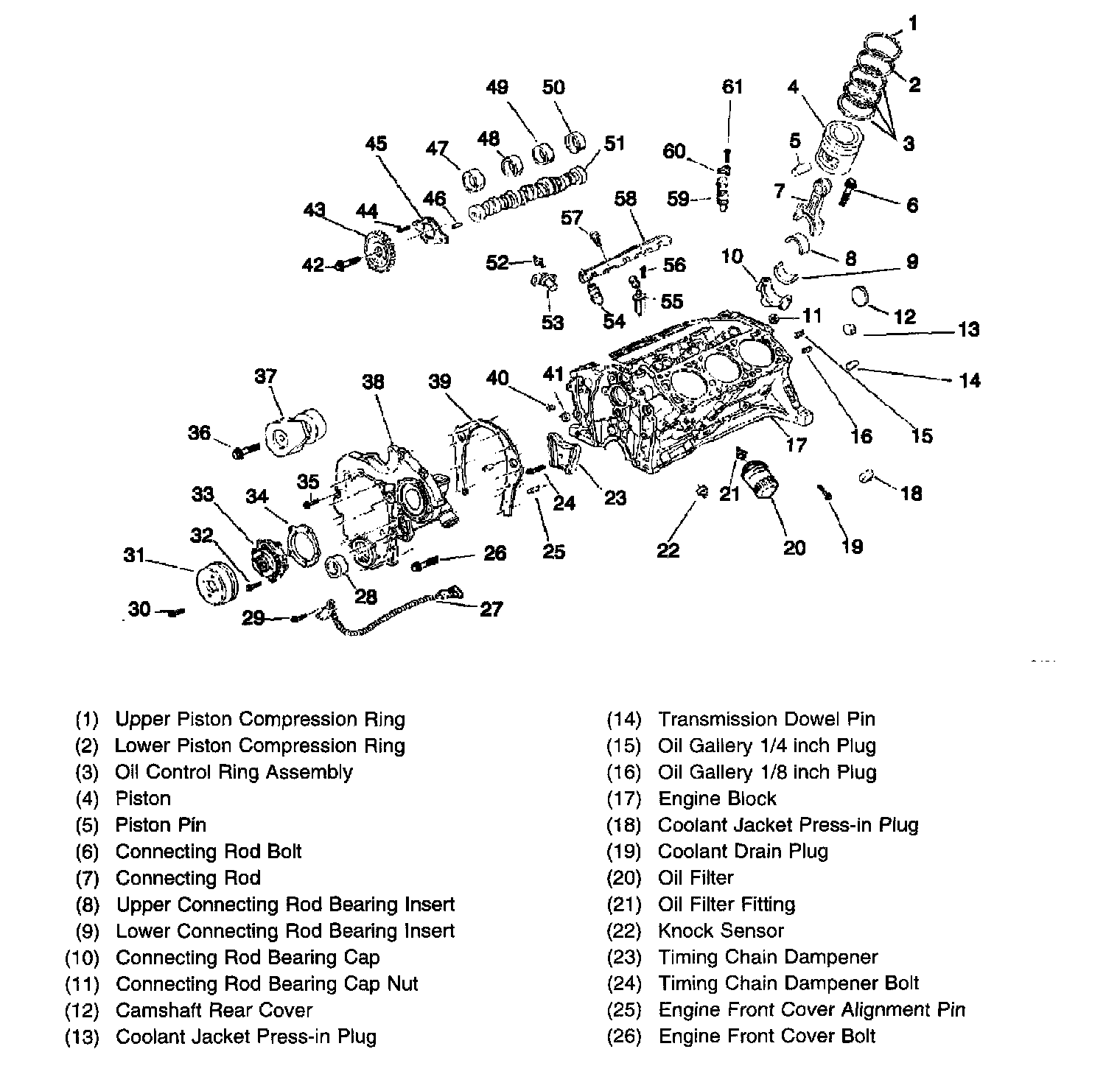

Engine Block and Components





Part 1 of 2





Part 2 of 2

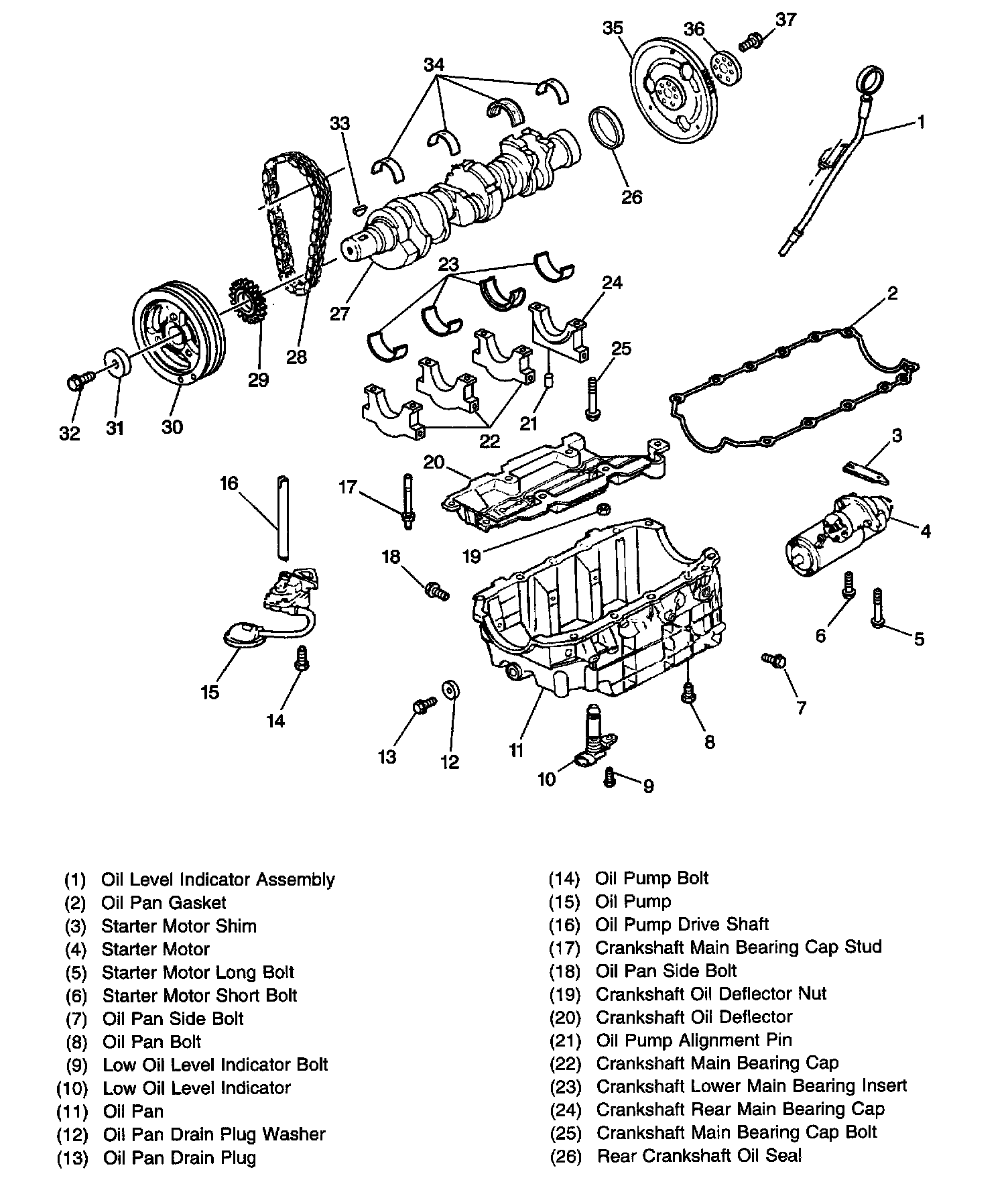

Crankshaft and Components





Part 1 of 2





Part 2 of 2
