Center Console Electrical Center Replacement: Installation

1. Install BCM.
2. Install center console fuse block (2) into center console fuse block bracket. See Fig 3.
3. Secure center console fuse block retainers (1).
4. Connect center console fuse block electrical connectors (1, 2). See Fig 2.
5. Install center console fuse block harness connectors bolts (1, 2) finger tighten until seated. Tighten center console fuse block harness connectors bolts to 54 INCH lbs. (6 N.m).
6. Connect BCM harness connectors (1, 2, 3). Fig 1
7. Install front floor center console.
8. Connect negative battery cable.

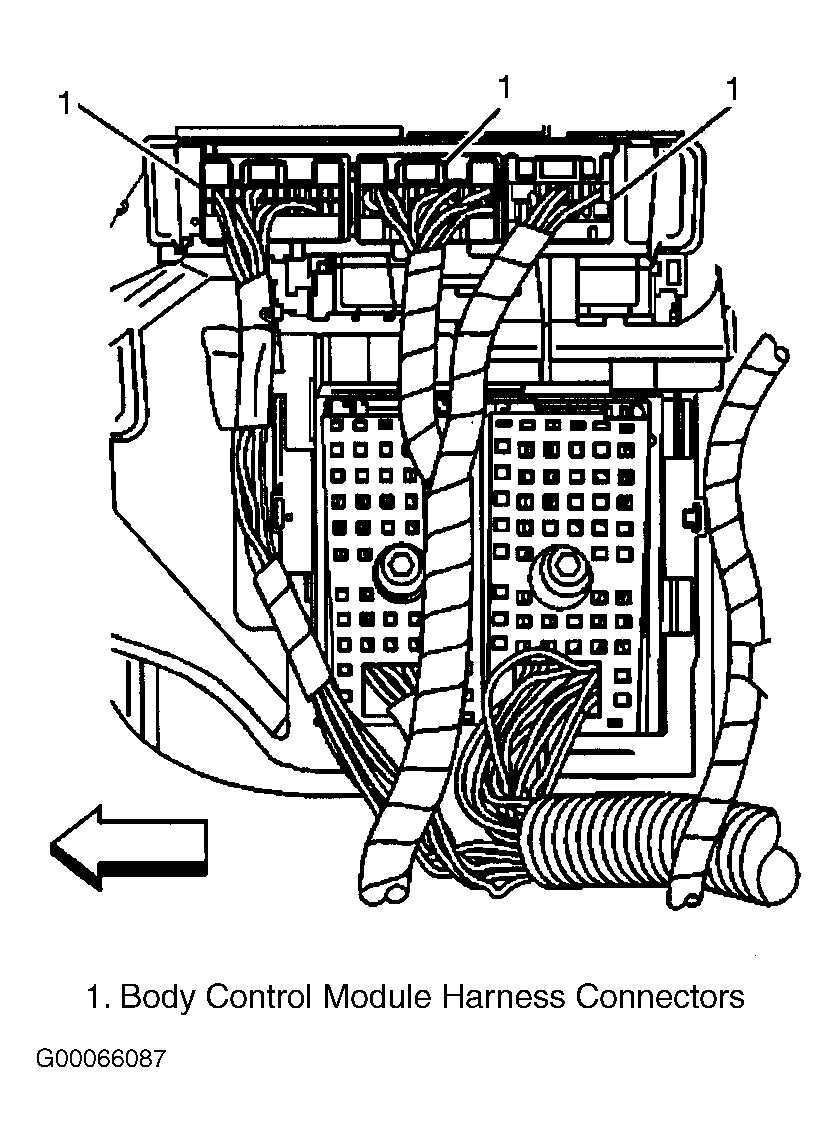

Fig 1: Locating Body Control Module Harness Connectors

Courtesy of GENERAL MOTORS CORP.

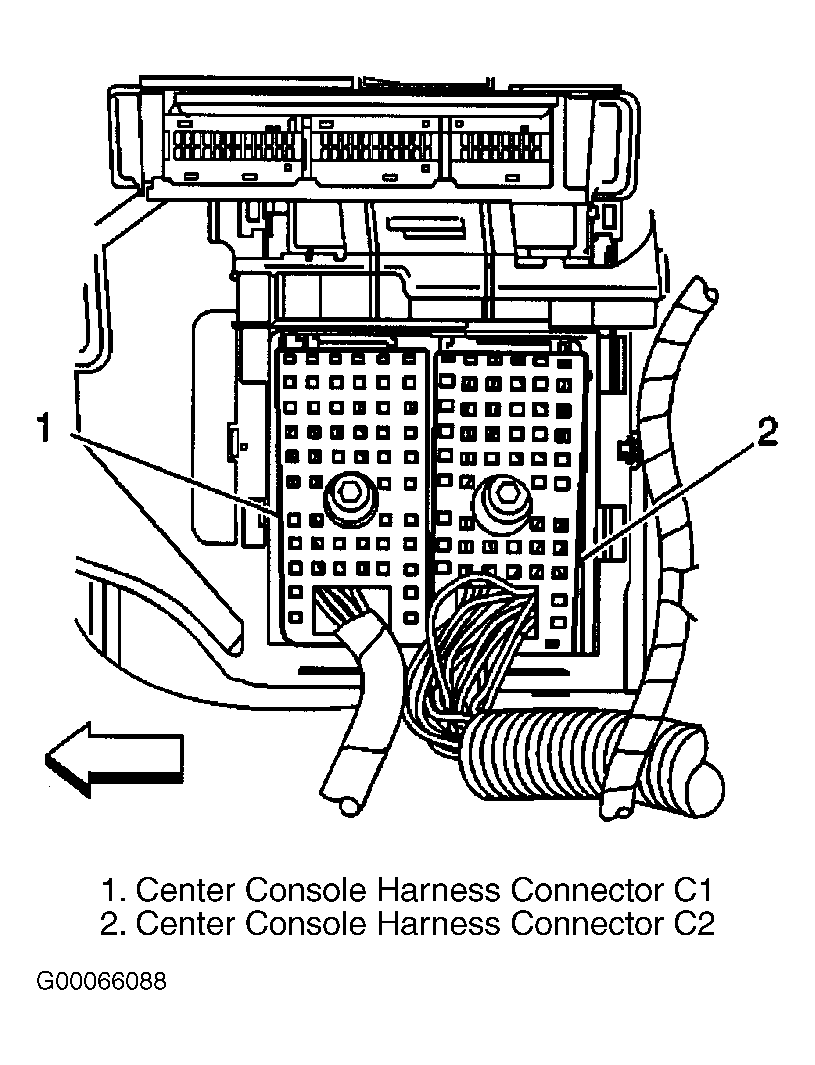

Fig 2: Locating Center Console Fuse Block Harness Connectors C1 & C2

Courtesy of GENERAL MOTORS CORP.

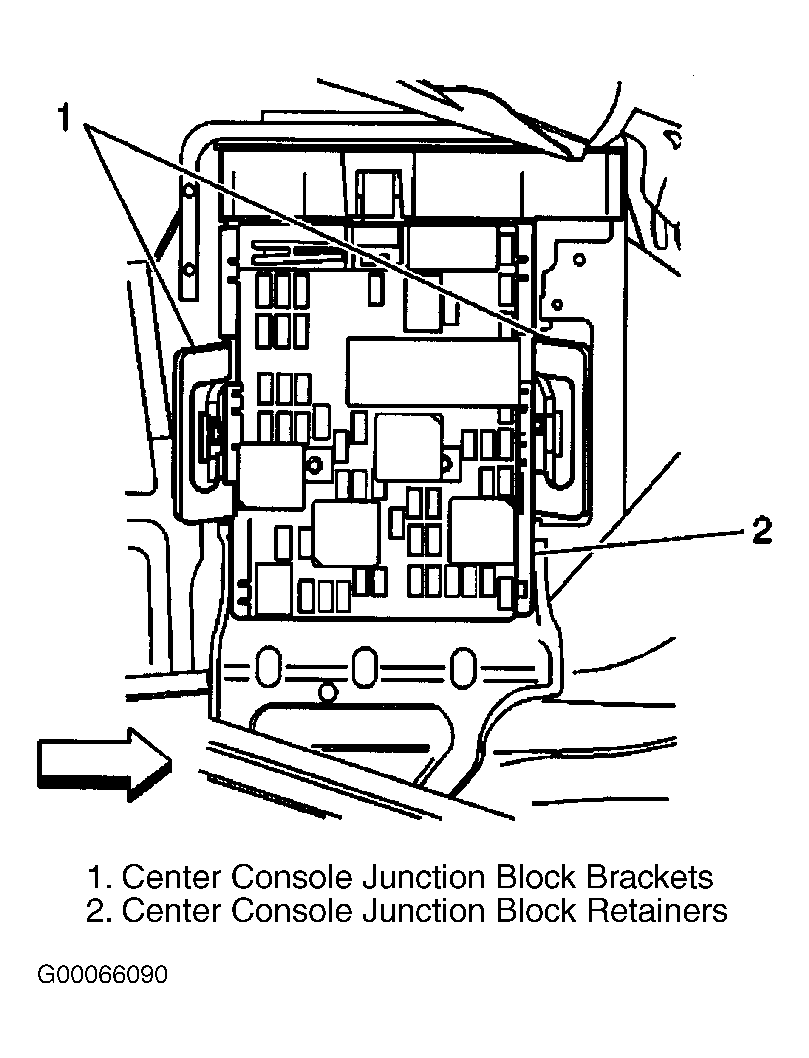

Fig 3: Locating Center Console Fuse Block Retainers

Courtesy of GENERAL MOTORS CORP.
