Removal & Installation (2.2L)

WARNING: This page is about a different car, the 2002 Pontiac Grand Am, 2002 Oldsmobile Alero, and 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

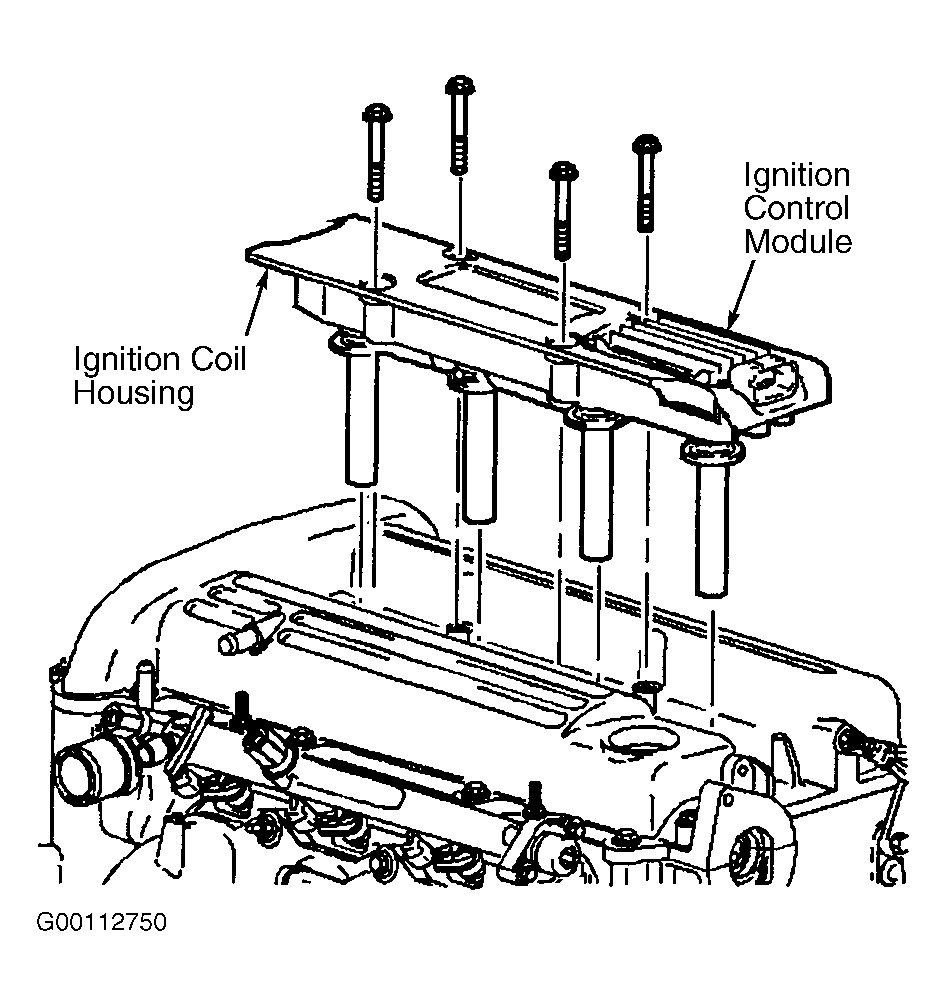

Turn ignition off. Disconnect Ignition Control Module (ICM) harness connector. See Figure . Remove ICM retaining screws. Remove ICM from ignition coil housing. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS  .
