Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel accessory trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
  2. Remove the retaining screws from the HVAC control module.
  3. Pull the HVAC control module out from the instrument panel.

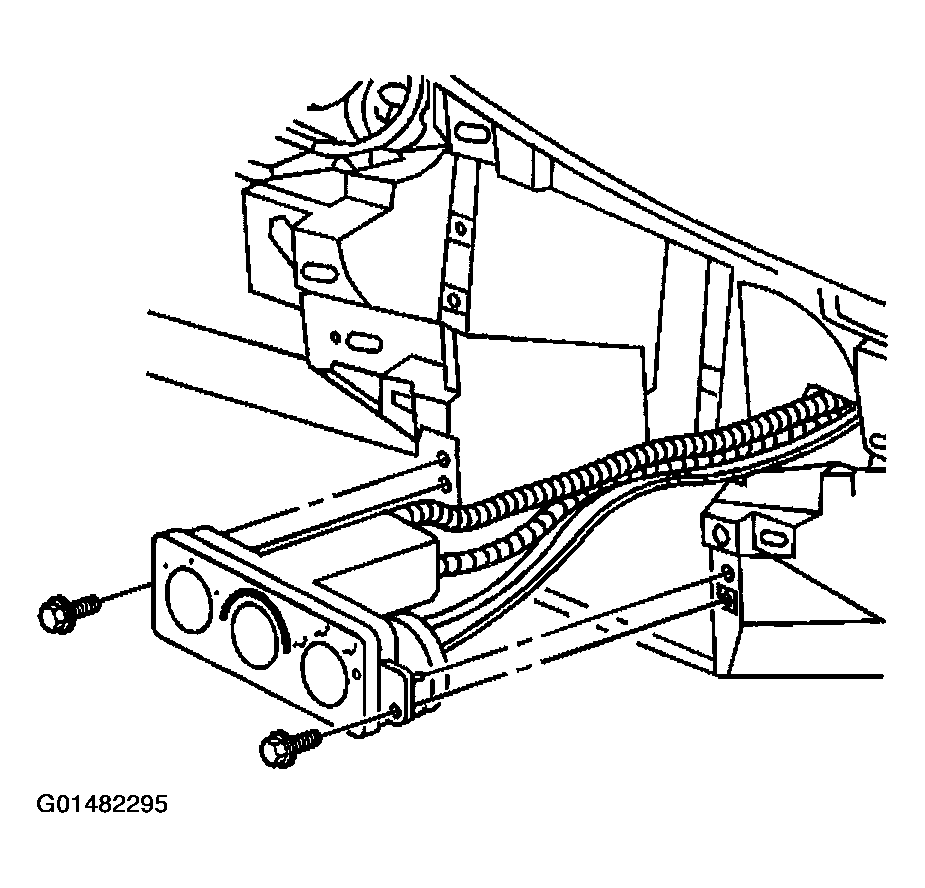

    Fig 1: Removing HVAC Control Module & Retaining Screws
    G01482295Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors from the HVAC control module.
  5. Disconnect the vacuum connectors from the HVAC from the HVAC control module.
  6. Remove the HVAC control module.

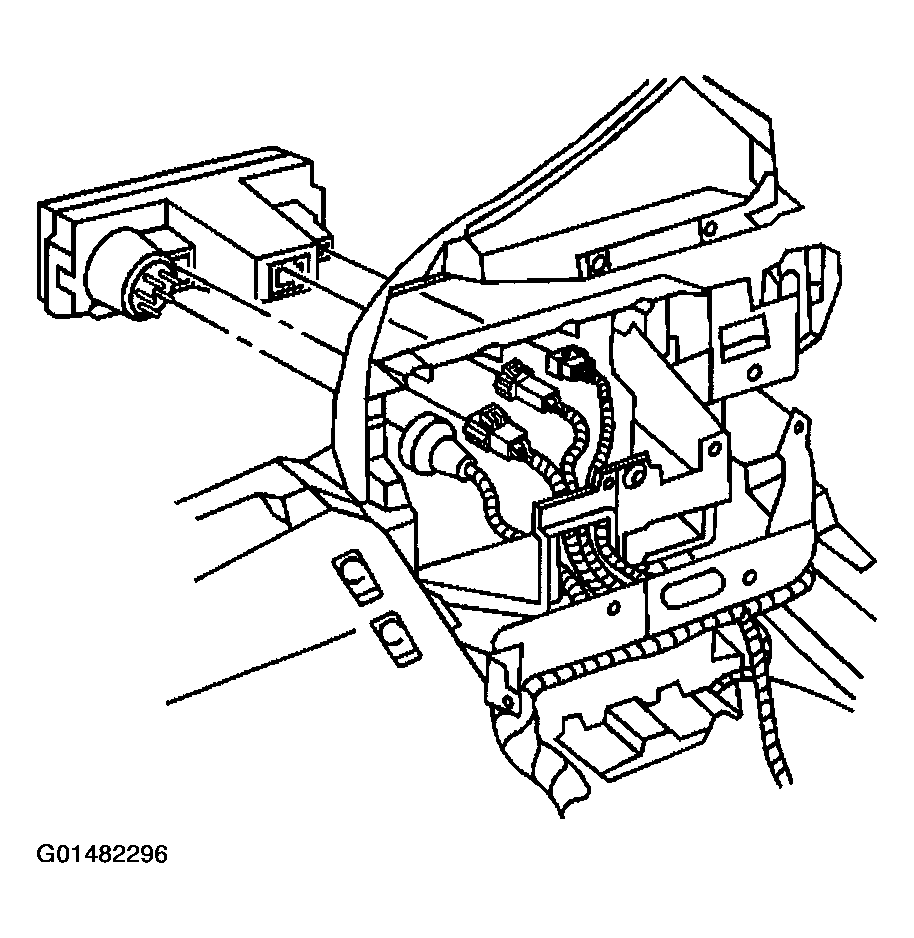

    Fig 2: Disconnecting Vacuum Connectors From HVAC
    G01482296Courtesy of GENERAL MOTORS CORP.
