Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  2. Remove the wiper drive system module. Refer to WIPER DRIVE SYSTEM MODULE REPLACEMENT  .
  3. Remove the wiper transmission caps.
  4. Remove the wiper transmission screws.
  5. Remove the wiper transmission from the wiper drive system module tube frame.

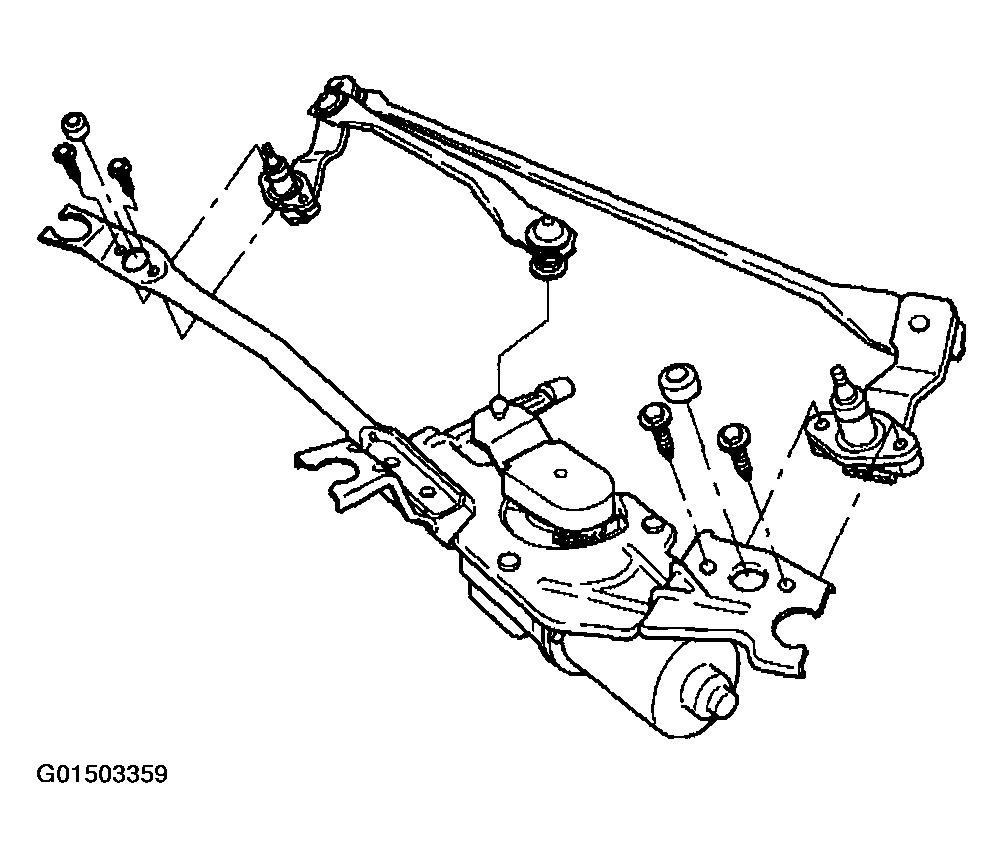

    Fig 1: Removing Wiper Transmission From Wiper Drive System Module Tube Frame
    G01503359Courtesy of GENERAL MOTORS CORP.
