Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (AZTEK) orFASCIA REPLACEMENT - REAR BUMPER (RENDEZVOUS) in Bumpers.
Disconnect electrical from the rear object sensor.

Fig 1: Disconnecting Electrical From Rear Object Sensor
Courtesy of GENERAL MOTORS CORP.
Lift the locking tabs on the housing (4) and remove the rear object sensor (1).

Fig 2: Removing Rear Object Sensor
Courtesy of GENERAL MOTORS CORP.

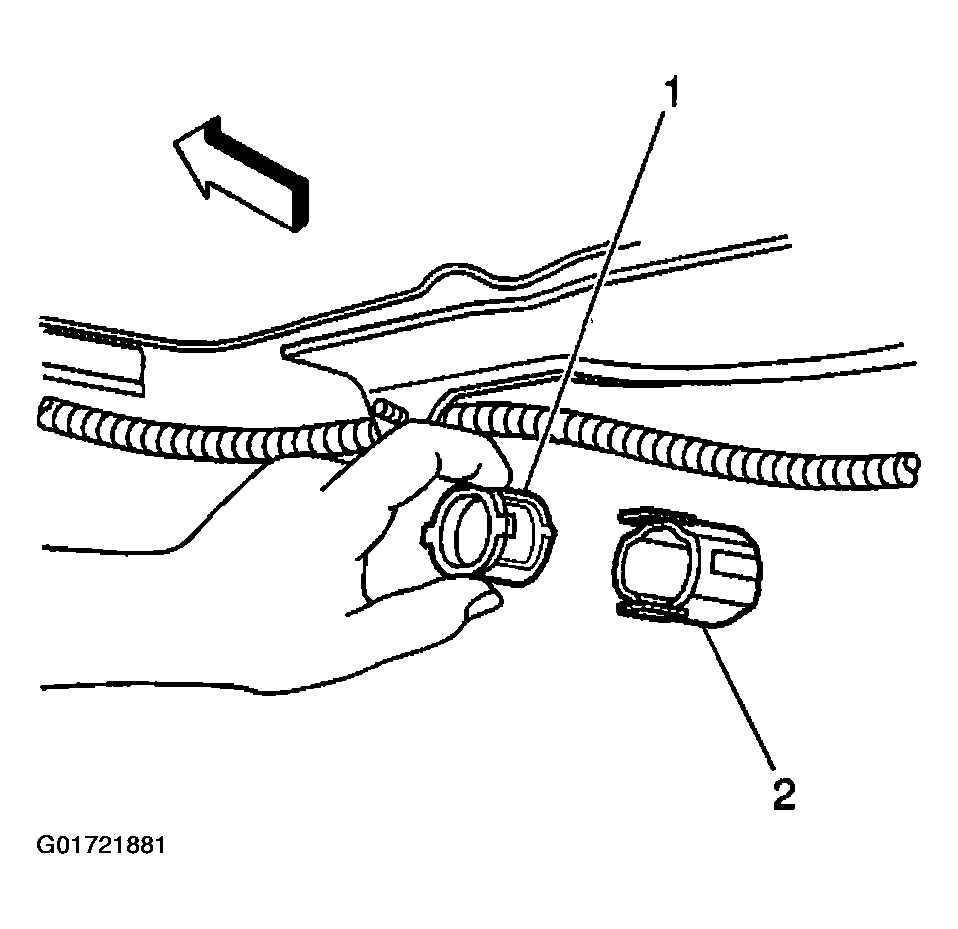

Squeeze the spring (1) and remove it from the housing (2).

Fig 3: Removing Spring From Housing
Courtesy of GENERAL MOTORS CORP.
Release the tabs on the housing and remove.

Fig 4: Releasing And Removing Housing Tabs
Courtesy of GENERAL MOTORS CORP.
Remove the rear object sensor bezel by pushing it through the fascia.

Fig 5: Removing Rear Object Sensor Bezel
Courtesy of GENERAL MOTORS CORP.
