Power Mirrors - Memory Functions Inoperative

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Power Mirrors - Memory Functions Inoperative (Steps 1-2)

Courtesy of GENERAL MOTORS CORP.

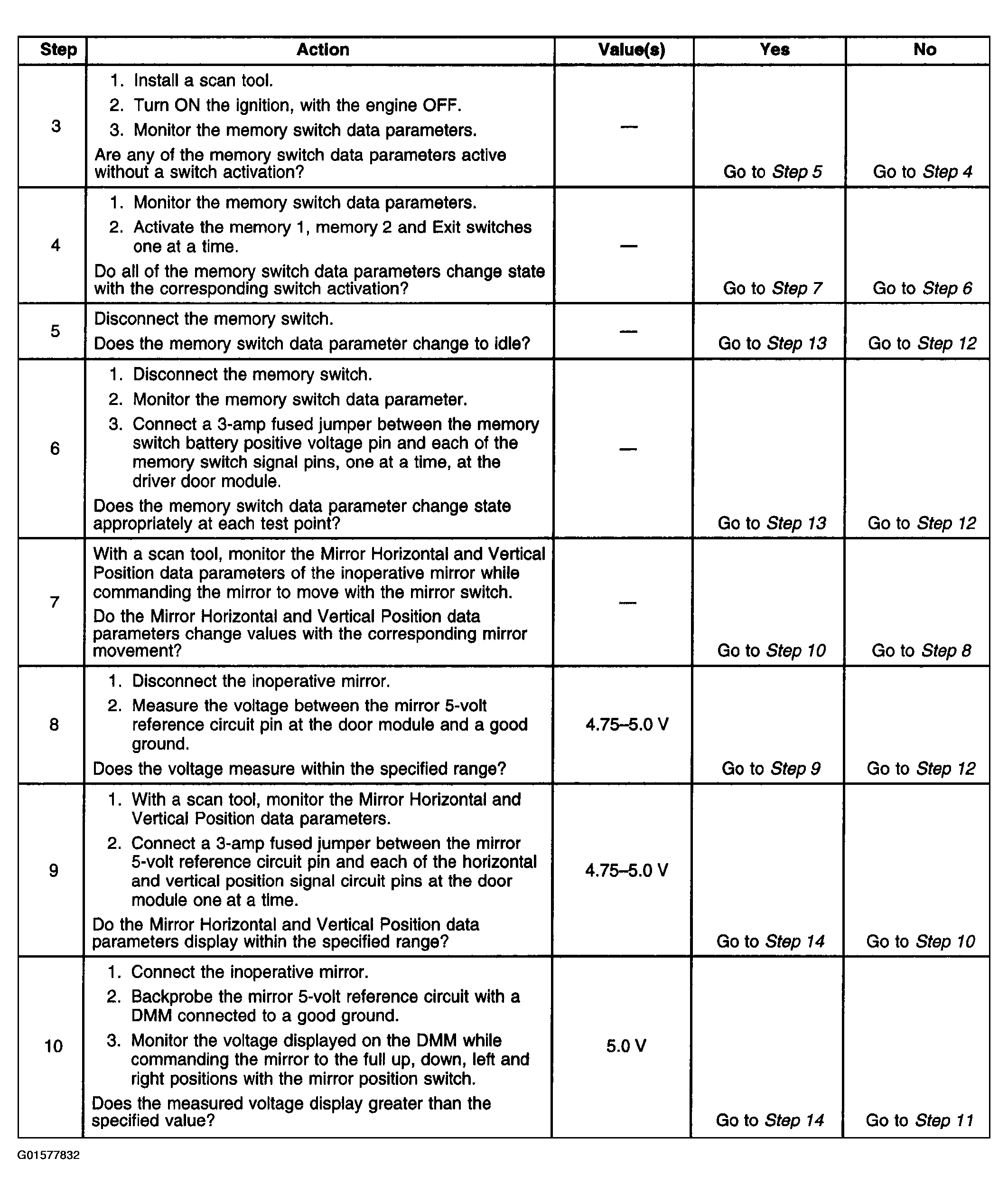

Fig 2: Power Mirrors - Memory Functions Inoperative (Steps 3-10)

Courtesy of GENERAL MOTORS CORP.

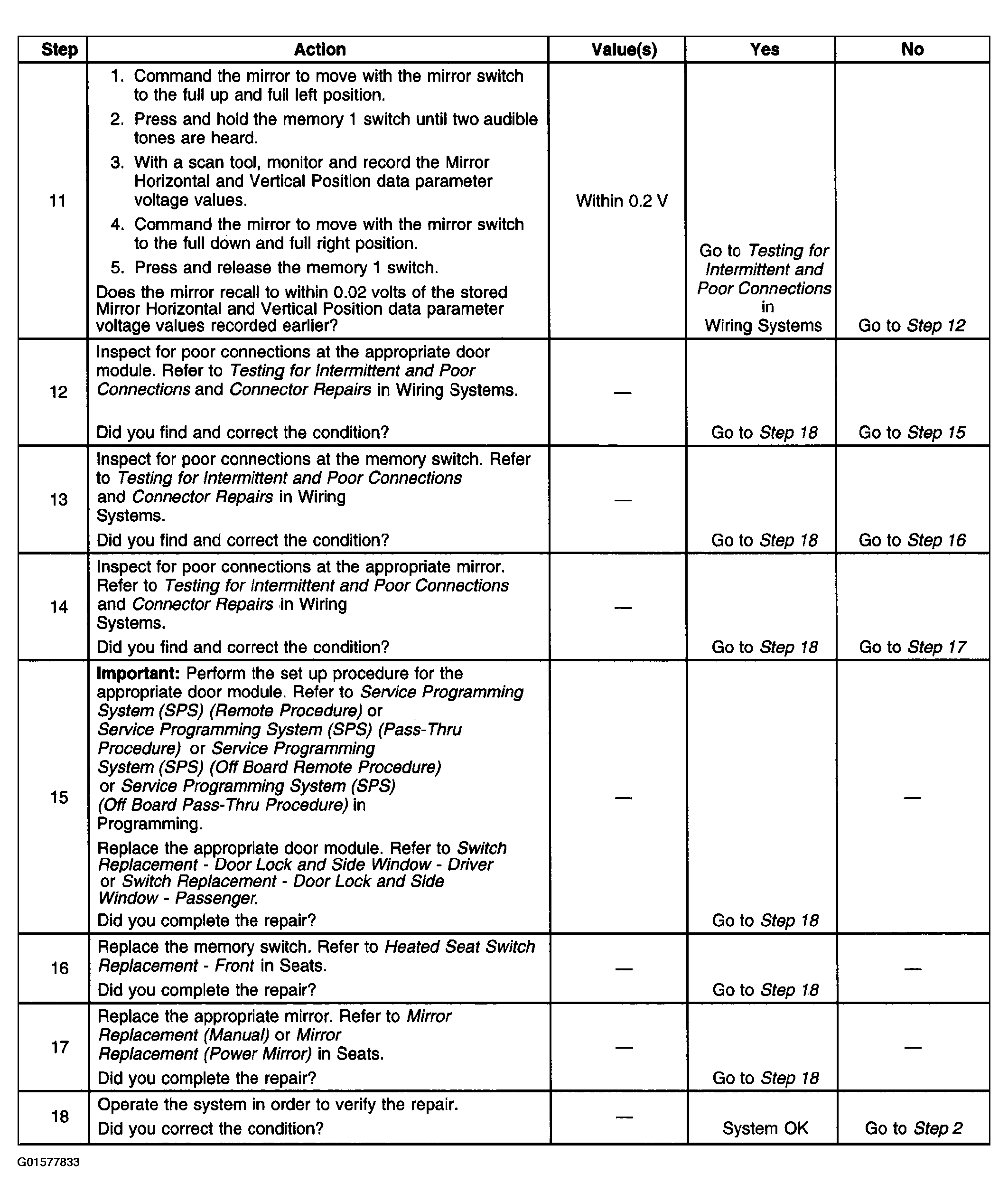

Fig 3: Power Mirrors - Memory Functions Inoperative (Steps 11-18)

Courtesy of GENERAL MOTORS CORP.
