Fuel Level Specifications

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The value in the table are approximate values based upon information obtained from properly operating vehicles. Actual results may vary slightly.

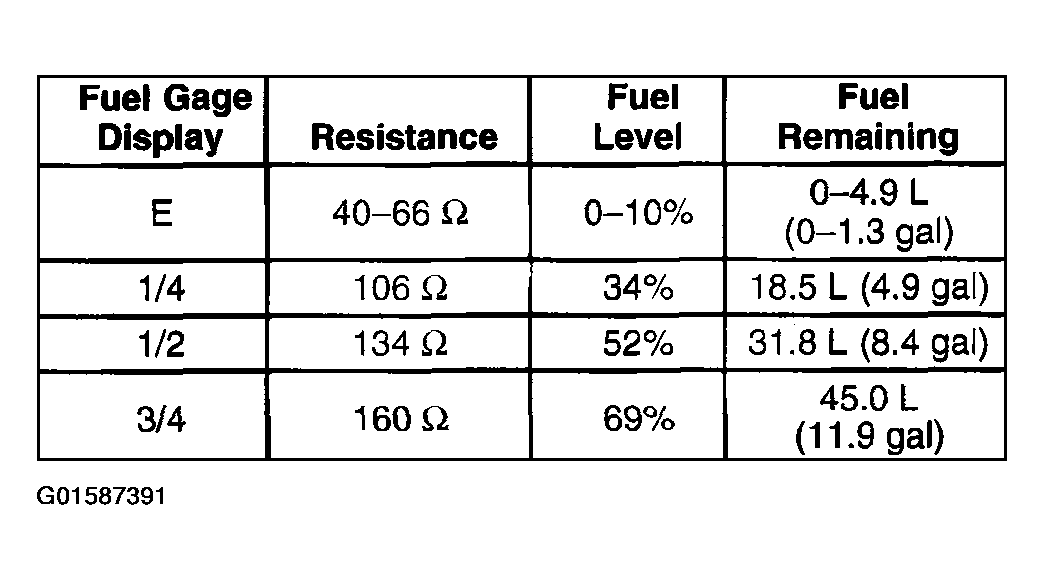

Fig 1: Fuel Level Specifications (1 Of 2)
G01587391Courtesy of GENERAL MOTORS CORP.

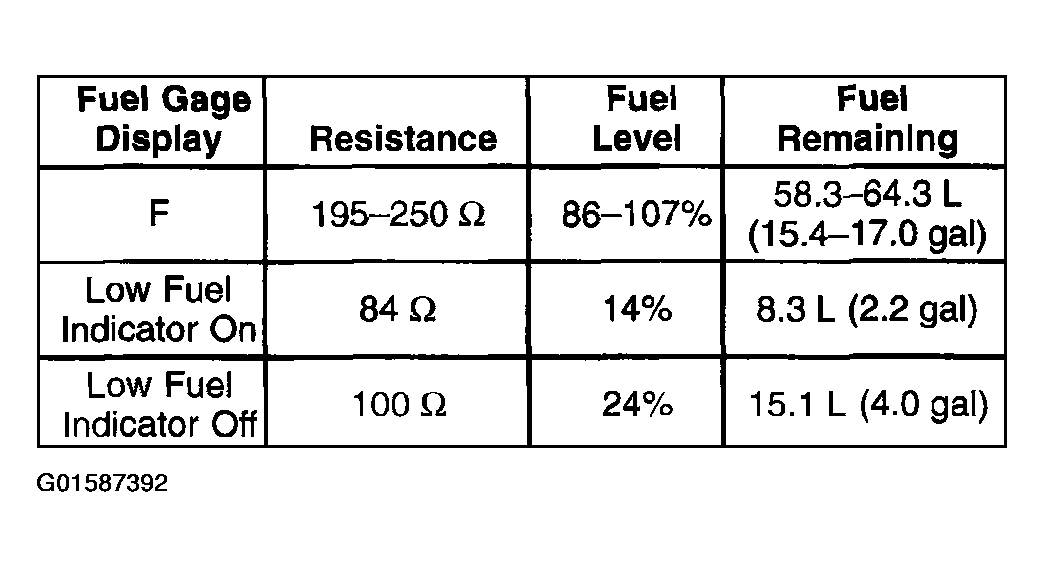

Fig 2: Fuel Level Specifications (2 Of 2)
G01587392Courtesy of GENERAL MOTORS CORP.
