SIR Component Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

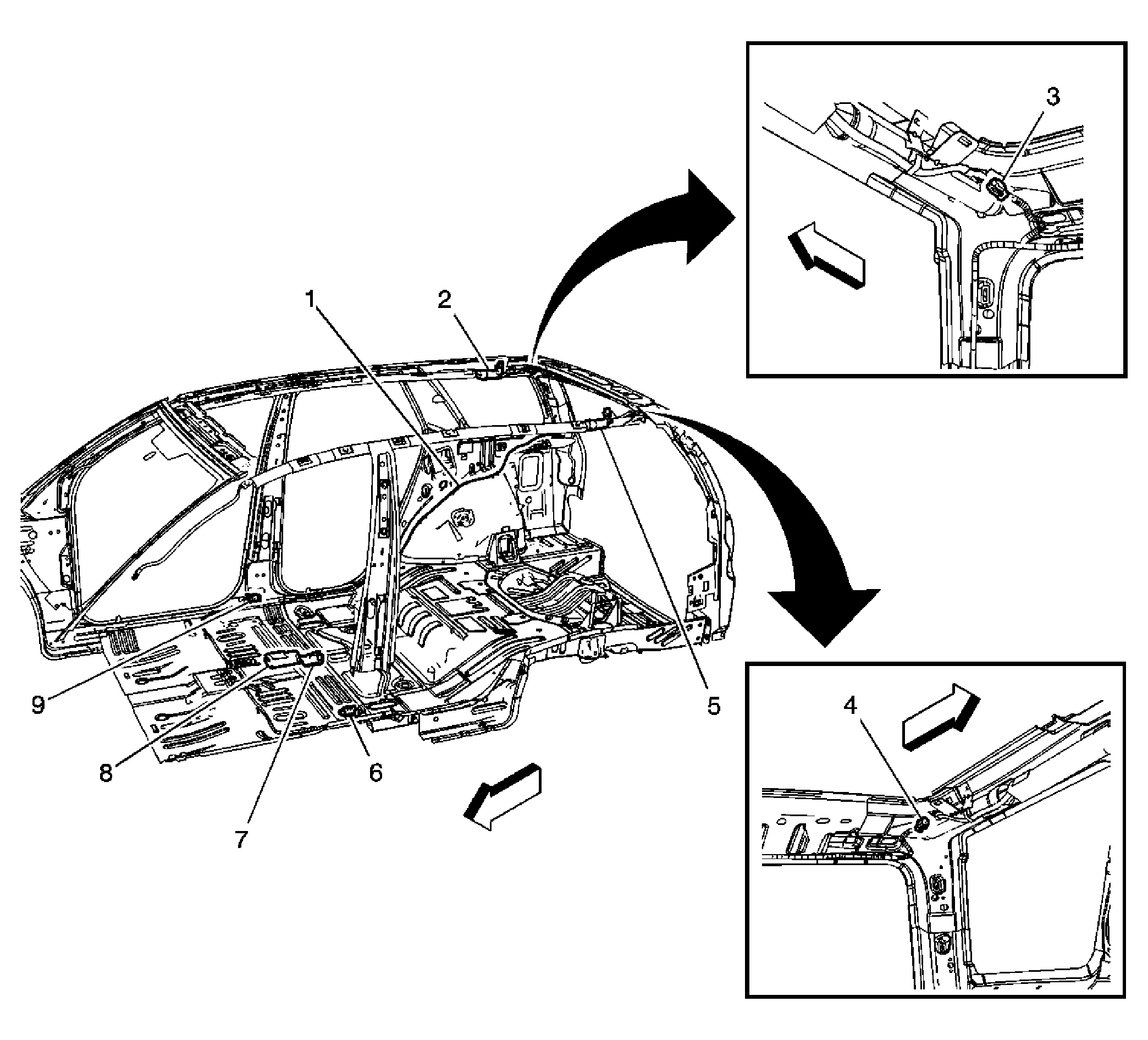

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Roof Rail Module Harness (ASF) |
| 2 | Inflatable Restraint Roof Rail Module - Right (ASF) |
| 3 | Inflatable Restraint Roof Rail Module - Right (ASF) Connector |
| 4 | Inflatable Restraint Roof Rail Module - Left (ASF) Connector |
| 5 | Inflatable Restraint Roof Rail Module - Left (ASF) |
| 6 | Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF) |
| 7 | Rollover Sensor |
| 8 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 9 | Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF) |

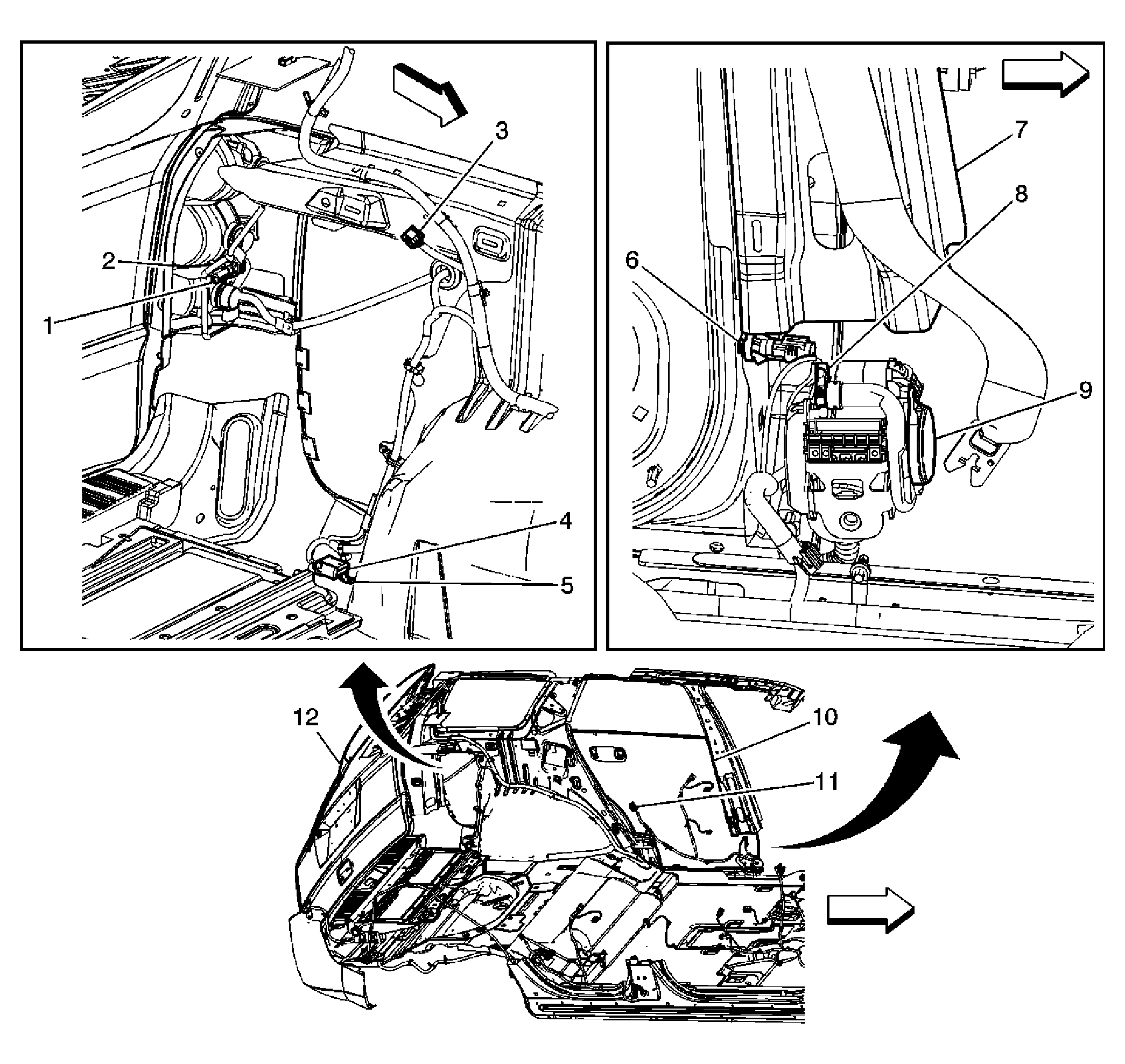

| Callout | Component Name |
|---|---|
| 1 | C400 |
| 2 | Tail Lamp - LR |
| 3 | C300 |
| 4 | Splice Pack SP401 |
| 5 | G401 |
| 6 | Door Jamb Switch - LR |
| 7 | Left C Pillar |
| 8 | C309 |
| 9 | Seat Belt Pretensioner - Left |
| 10 | Door Panel - LR |
| 11 | C700 |
| 12 | Liftgate |

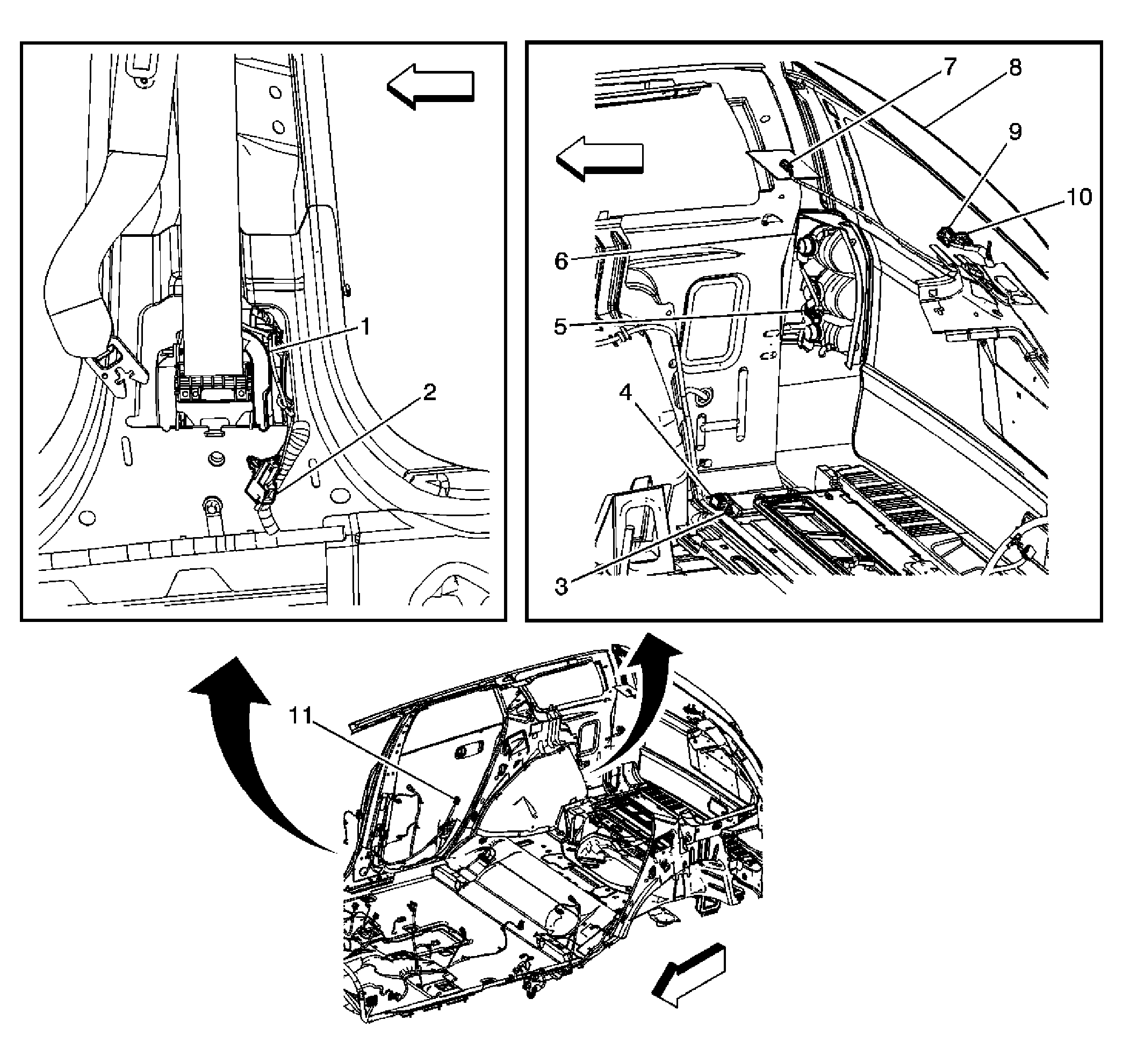

| Callout | Component Name |
|---|---|
| 1 | Seat Belt Pretensioner - Right |
| 2 | C310 |
| 3 | G403 |
| 4 | Splice Pack SP403 |
| 5 | C401 |
| 6 | Tail Lamp - RR |
| 7 | Cellular/Navigational/Digital Antenna |
| 8 | Liftgate |
| 9 | C403 |
| 10 | C402 |
| 11 | C800 |

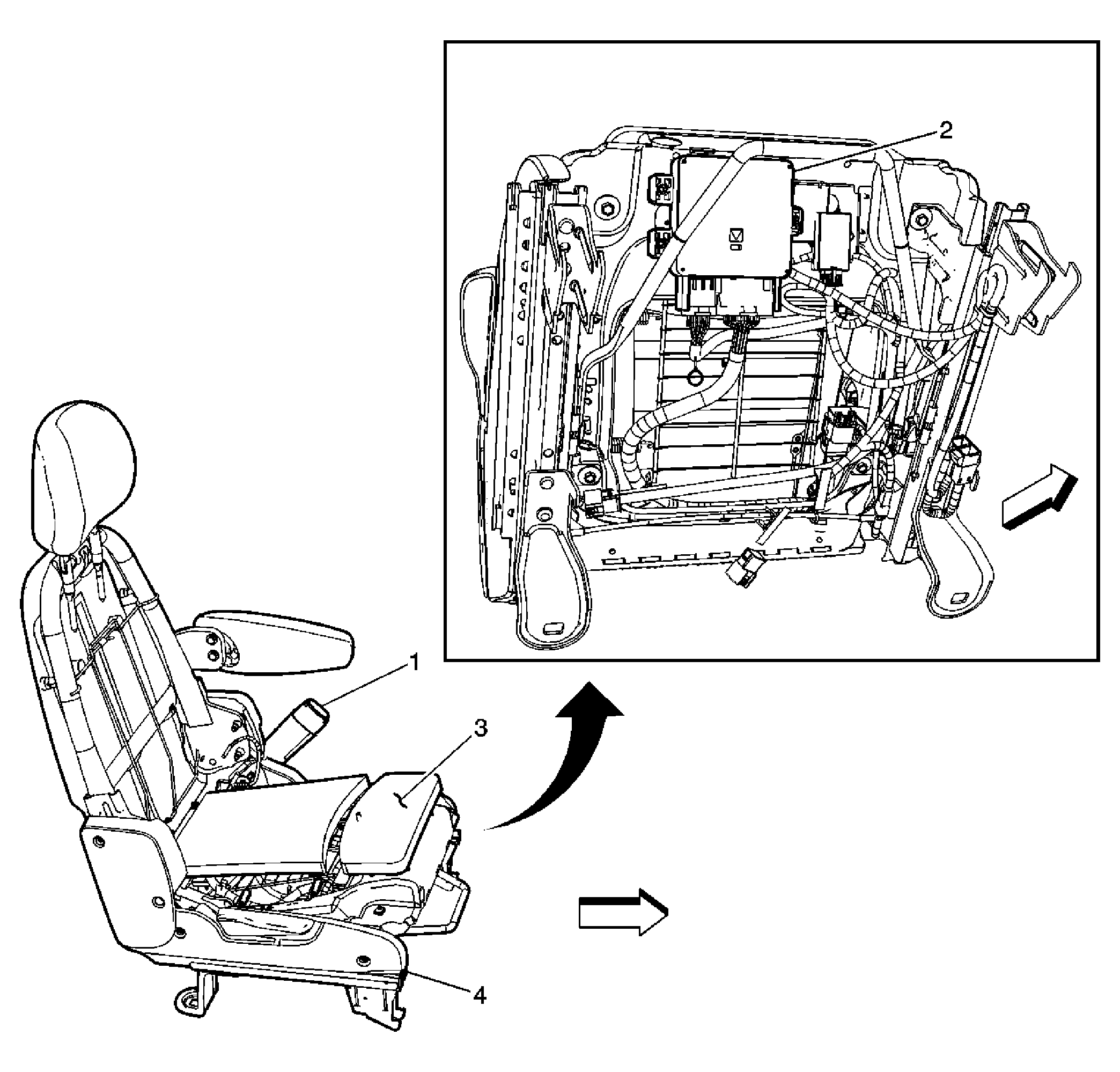

| Callout | Component Name |
|---|---|
| 1 | Seat Belt Switch |
| 2 | Inflatable Restraint Passenger Presence System (PPS) Module |
| 3 | Inflatable Restraint Passenger Presence System (PPS) Sensor |
| 4 | Passenger Seat |
| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Cluster (IPC) |
| 2 | Windshield Wiper/Washer Switch |
| 3 | I/P Dimmer Control |
| 4 | Hazard Switch |
| 5 | Inflatable Restraint Front Passenger Presence System (PPS) Indicator |
| 6 | Fog Lamp (T96) or Traction Control Switch (NW9) |
| 7 | Ambient Light Sensor |
| 8 | Inflatable Restraint I/P Module |
| 9 | HVAC Control Module |
| 10 | Cigar Lighter (DT4) |
| 11 | Window Switch - Passenger |
| 12 | Heated Seat Switches |
| 13 | Window Switch - Driver |
| 14 | Outside Rearview Mirror Switch (D22/DG7) |
| 15 | Radio |
| 16 | Steering Wheel Control Switch - Right (Radio) |
| 17 | Inflatable Restraint Steering Wheel Module |
| 18 | Steering Wheel Control Switch - Left (Cruise Control) |
| 19 | Turn Signal/Multifunction Switch |
