Inflatable Restraint I/P Module Indicator (w/ASF)
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Inflatable Restraint I/P Module Indicator (w/ASF) Connector Parts Information
Connector Part Information
|

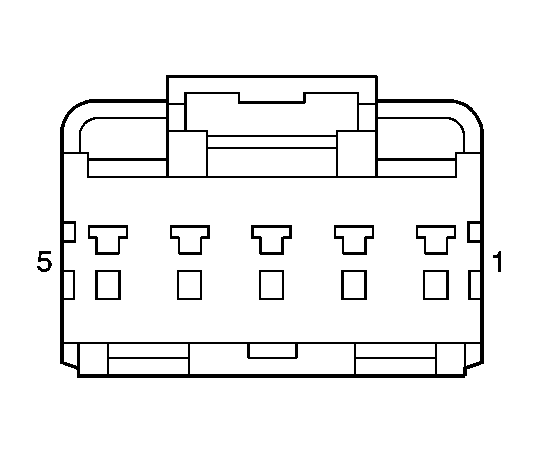

Inflatable Restraint I/P Module Indicator (w/ASF) Connector Terminal Identification
| Pin | Wire Color | Circuit Number | Function |
|---|---|---|---|
| 1 | D-BU | 2307 | Passenger Air Bag On Indicator Control |
| 2 | BK | 550 | Ground |
| 3 | D-GN | 2308 | Passenger Air Bag Off Indicator Control |
| 4 | PK | 139 | Ignition 1 Voltage |
| 5 | PU | 5234 | Passenger Seat Belt Indicator Control |
