Inflatable Restraint Passenger Presence System (PPS) Module C1 (ASF w/o HEG)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

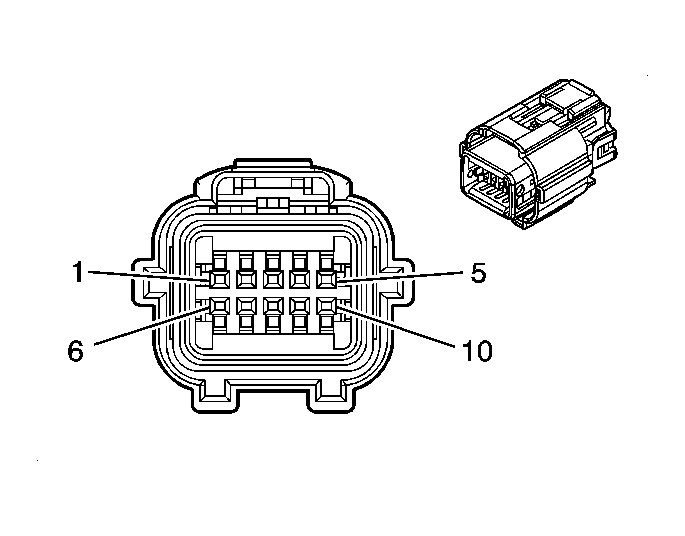

Fig 1: Inflatable Restraint Passenger Presence System (PPS) Module C1 (ASF w/o HEG) Connector End Views

Courtesy of GENERAL MOTORS CORP.

Inflatable Restraint Passenger Presence System (PPS) Module C1 (ASF w/o HEG) Connector Parts Information

Connector Part Information

OEM: 638517-5
Service: See Catalog
Description: 10-Way F 0.64 Series Sealed (BK)

Inflatable Restraint Passenger Presence System (PPS) Module C1 (ASF w/o HEG) Connector Terminal Identification

Pin	Wire Color	Circuit Number	Function
1	OG	2540	Battery Positive Voltage
2	PK	539	Ignition 1 Voltage
3	D-BU	2307	Passenger Air Bag On Indicator Control
4	D-GN	2308	Passenger Air Bag Off Indicator Control
5	PK	2306	Passenger Presence System (PPS) Signal
6	BK/WH	151	Ground
7-9	-	-	Not Used
10	OG	1540	Battery Positive Voltage (KA1)
