Engine Flywheel (Unit Repair): Installation
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Ensure that the correct bolts are used when installing manual transaxle flywheel or automatic transaxle flexplate. If the incorrect bolts are used, powertrain damage may result.

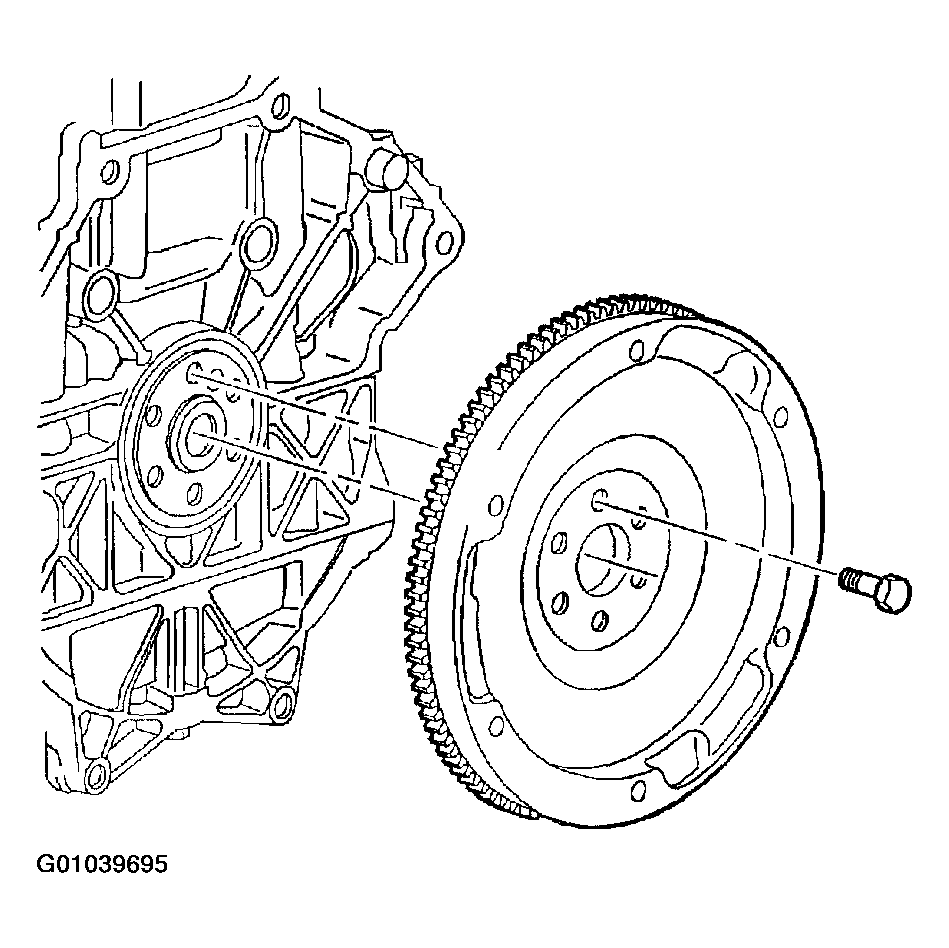

- Install flywheel.
- Install new bolts.
- Holding flywheel with Flywheel Holding Tool J43653, tighten bolts evenly.
Torque:
Flywheel Bolt: 53 N.m (39 ft-lbs) + 25°
