Intake Manifold (Unit Repair): Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Install intake manifold studs in cylinder head.
Torque:

Intake Manifold-to-Cylinder Head Studs: 6 N.m (60 in-lbs)

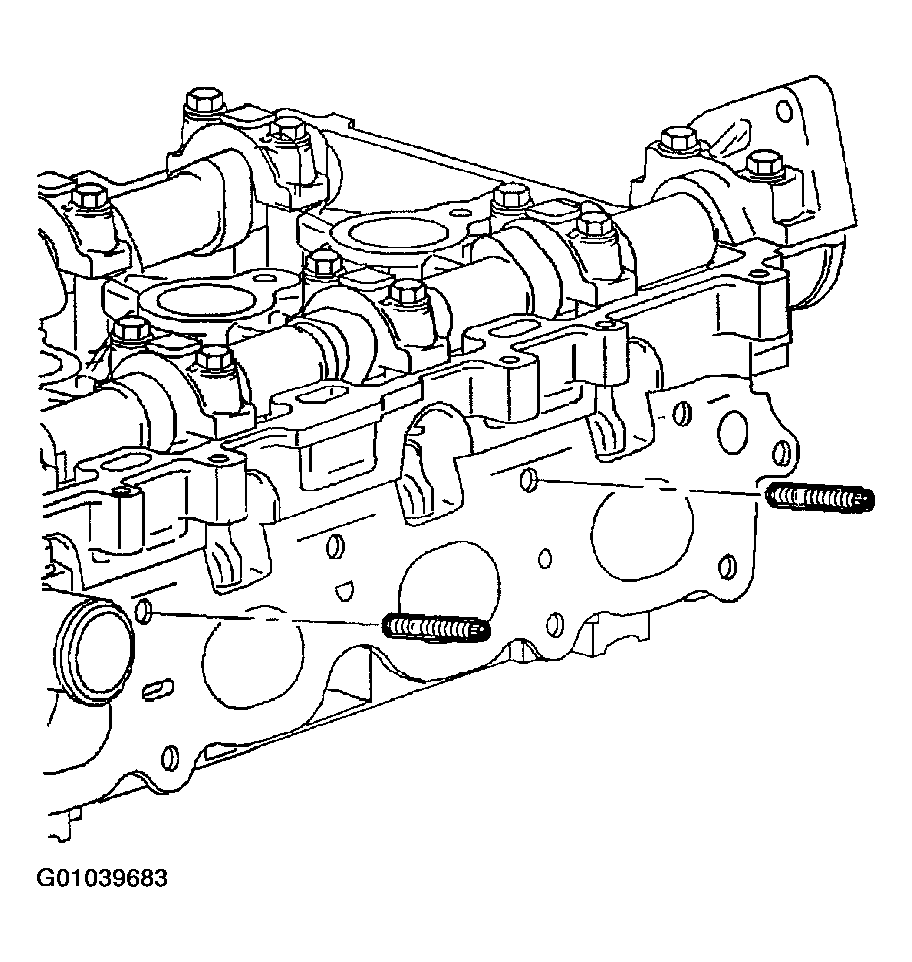

Fig 1: Installing Intake Manifold Studs In Cylinder Head
Courtesy of GENERAL MOTORS CORP.
Install a new intake manifold gasket onto intake manifold (if necessary).
Install intake manifold.
Install intake manifold bolts and nuts. Tighten by starting from center bolt and working outward.
Torque:

Intake Manifold-to-Cylinder Head Bolts: 10 N.m (89 in-lbs)

Torque:

Intake Manifold-to-Cylinder Head Nuts: 10 N.m (89 in-lbs)

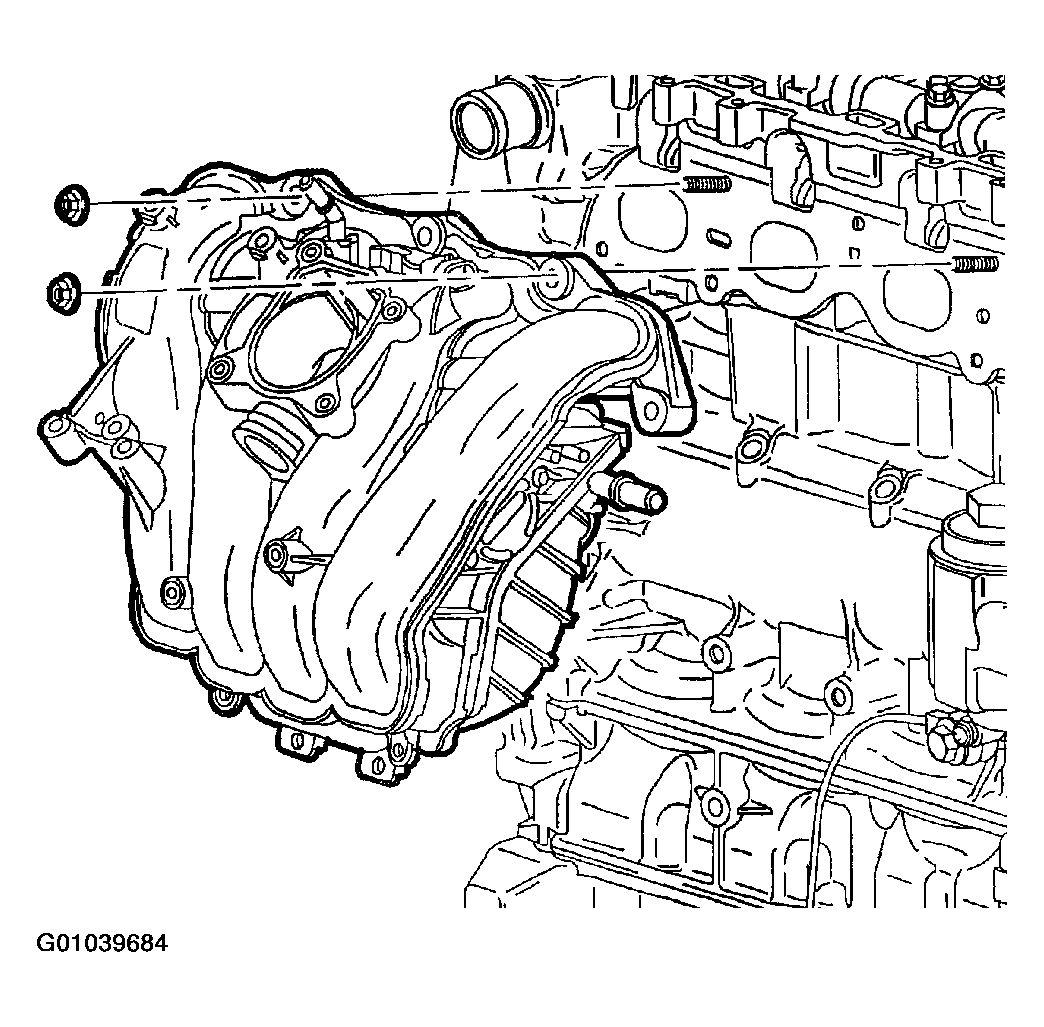

Fig 2: Installing Intake Manifold
Courtesy of GENERAL MOTORS CORP.
Install fuel rail assembly.
Install fuel rail stud.
Torque:

Fuel Rail Bracket Stud: 10 N.m (89 in-lbs)

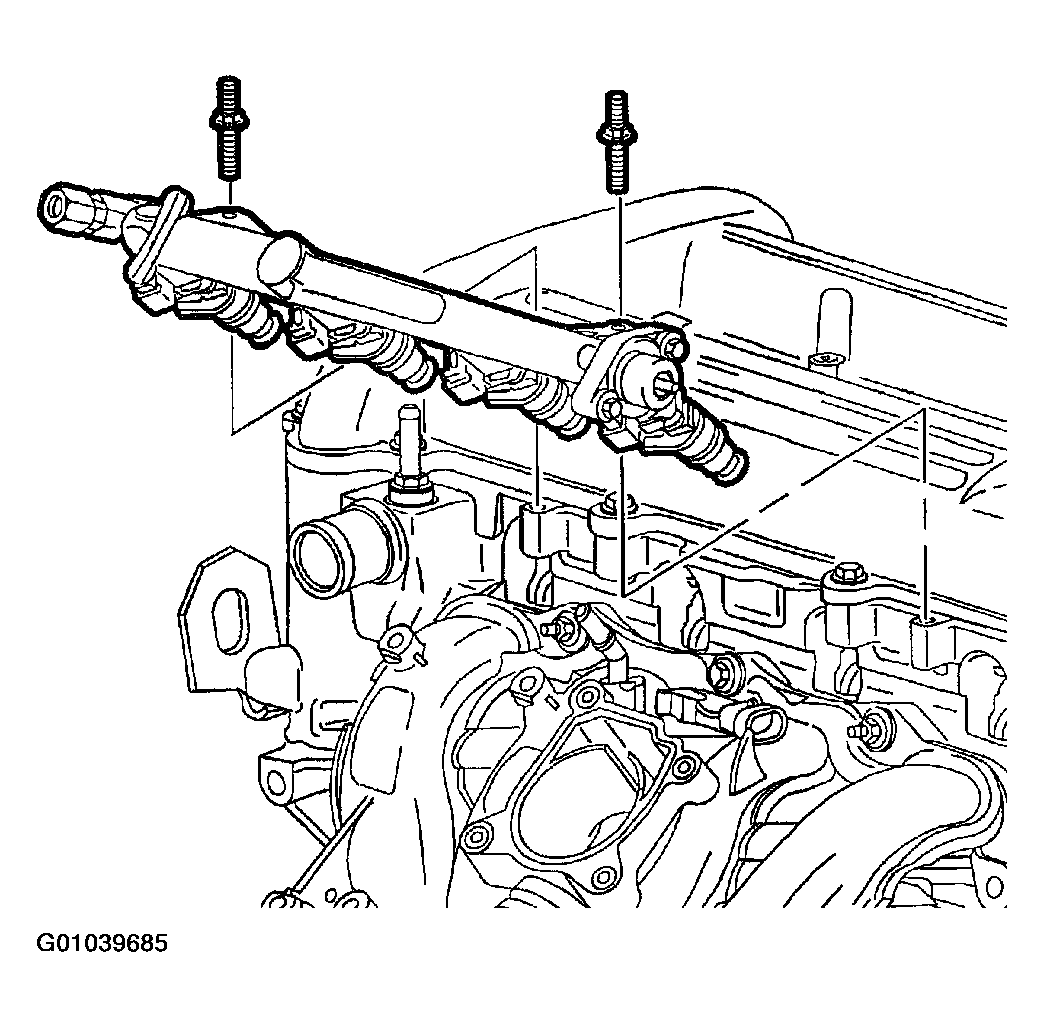

Fig 3: Installing Fuel Rail Assembly
Courtesy of GENERAL MOTORS CORP.
Install new throttle body studs (if equipped).
Torque:

Throttle Body Studs-to-Cylinder Head: 6 N.m (60 in-lbs)

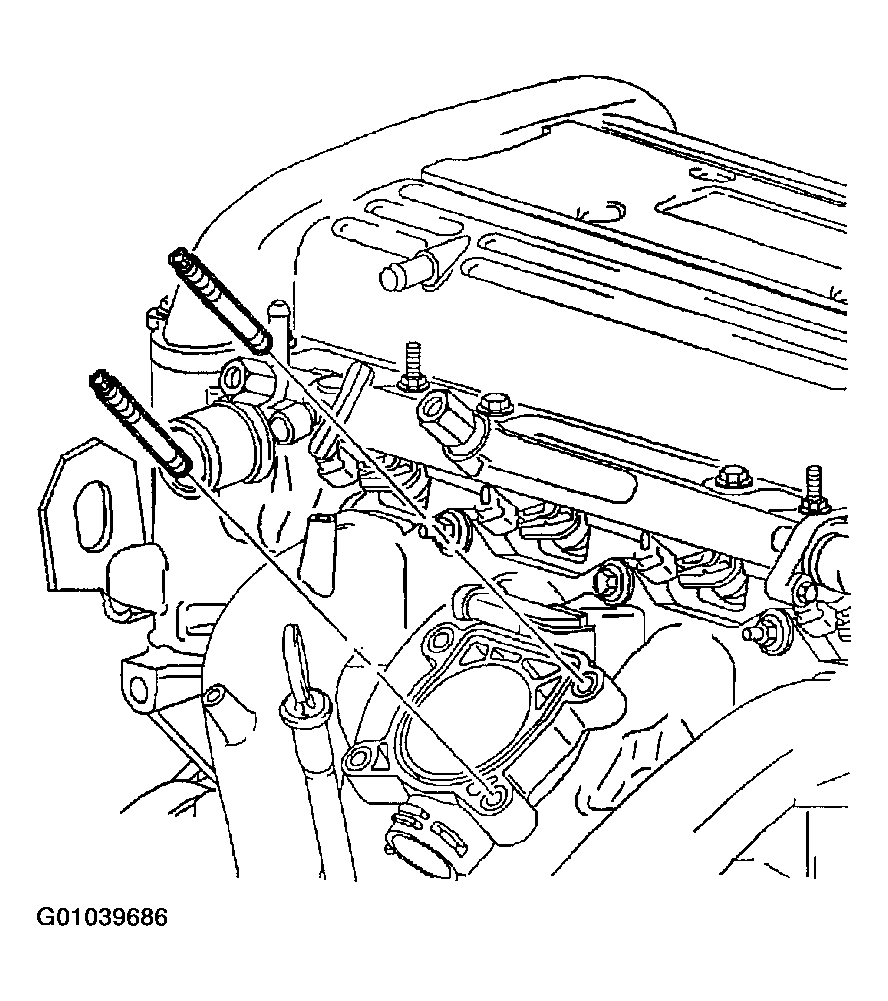

Fig 4: Installing New Throttle Body Studs
Courtesy of GENERAL MOTORS CORP.
Install throttle body, gasket may be reused if not damaged.
Torque:

Throttle Body Nuts: 10 N.m (89 in-lbs)
Install knock sensor connector onto intake manifold.

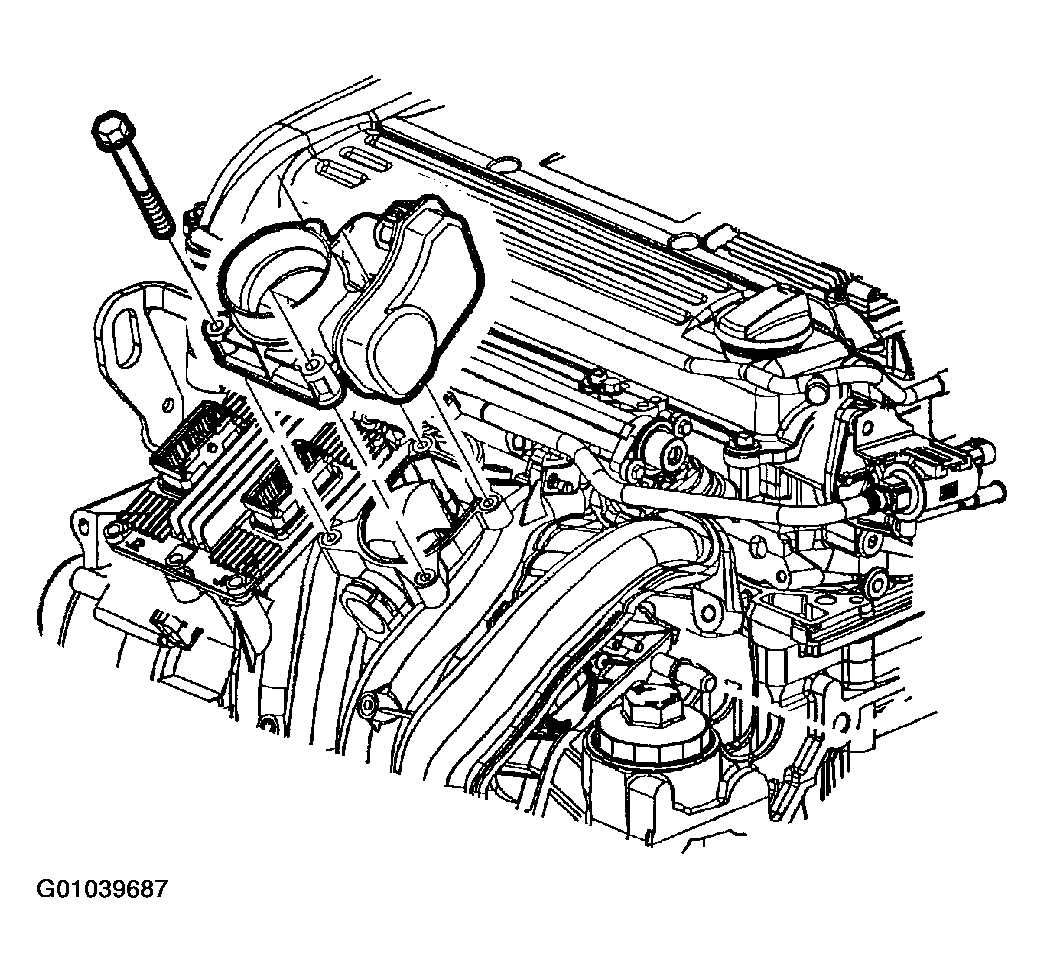

Fig 5: Installing Throttle Body
Courtesy of GENERAL MOTORS CORP.
