Oil Level Indicator And Tube (Unit Repair): Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Install oil level indicator tube into block.
Install indicator tube bracket to intake manifold bolt.
Install knock sensor wiring to oil lever indicator bracket.

Torque:

Oil Level Indicator Tube-to-Intake Manifold Bolt: 10 N.m (89 ft-lbs)

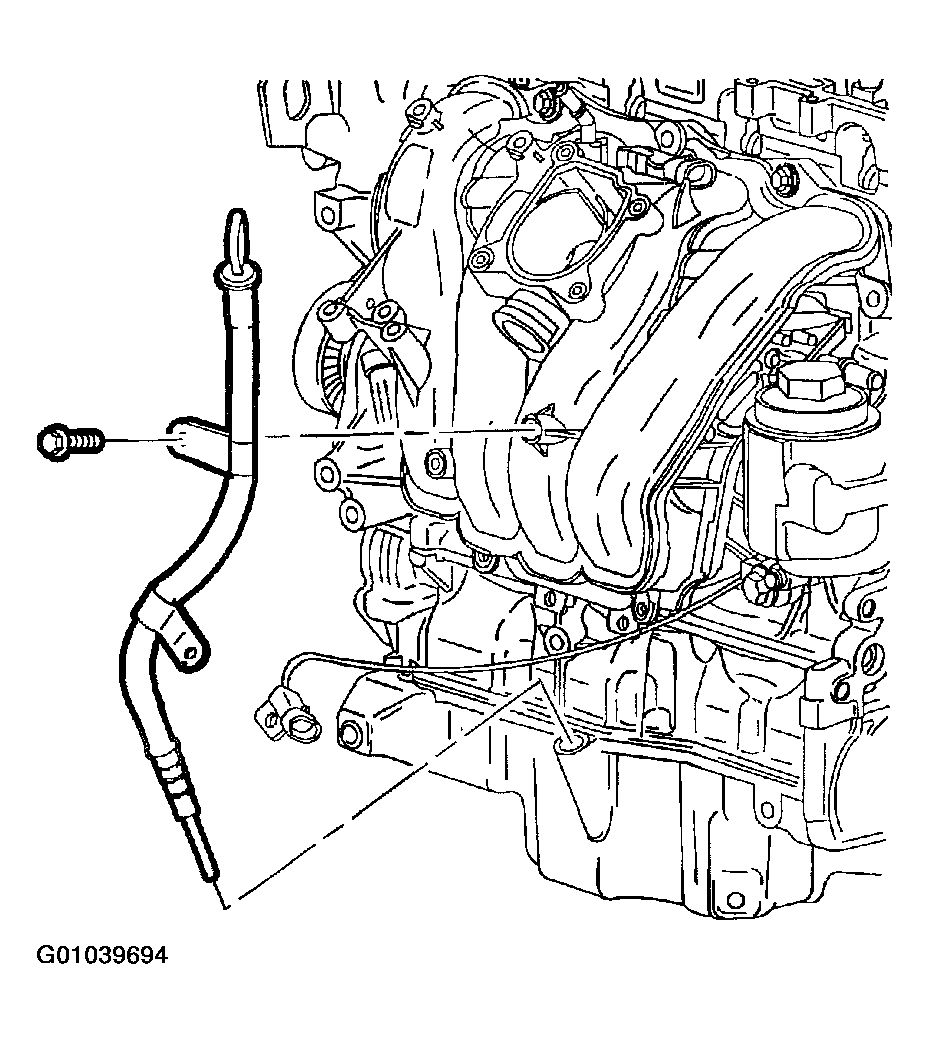

Fig 1: Installing Oil Level Indicator Tube Into Block

Courtesy of GENERAL MOTORS CORP.
