Oil Pan (Unit Repair): Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Make sure that oil pan and mounting surface on lower crankcase are free of all oil and debris.
IMPORTANT: Ensure that there is not any excessive RTV around oil pickup gallery flange area.
Apply a 2 mm (0.08 in) bead of RTV (P/N 12346286) around perimeter of the oil pan and suction port opening. Do not apply more than a 2 mm (0.08 in) bead.

Fig 1: Inspecting Oil Pan & Mounting Surfaces
Courtesy of GENERAL MOTORS CORP.
Install oil pan.

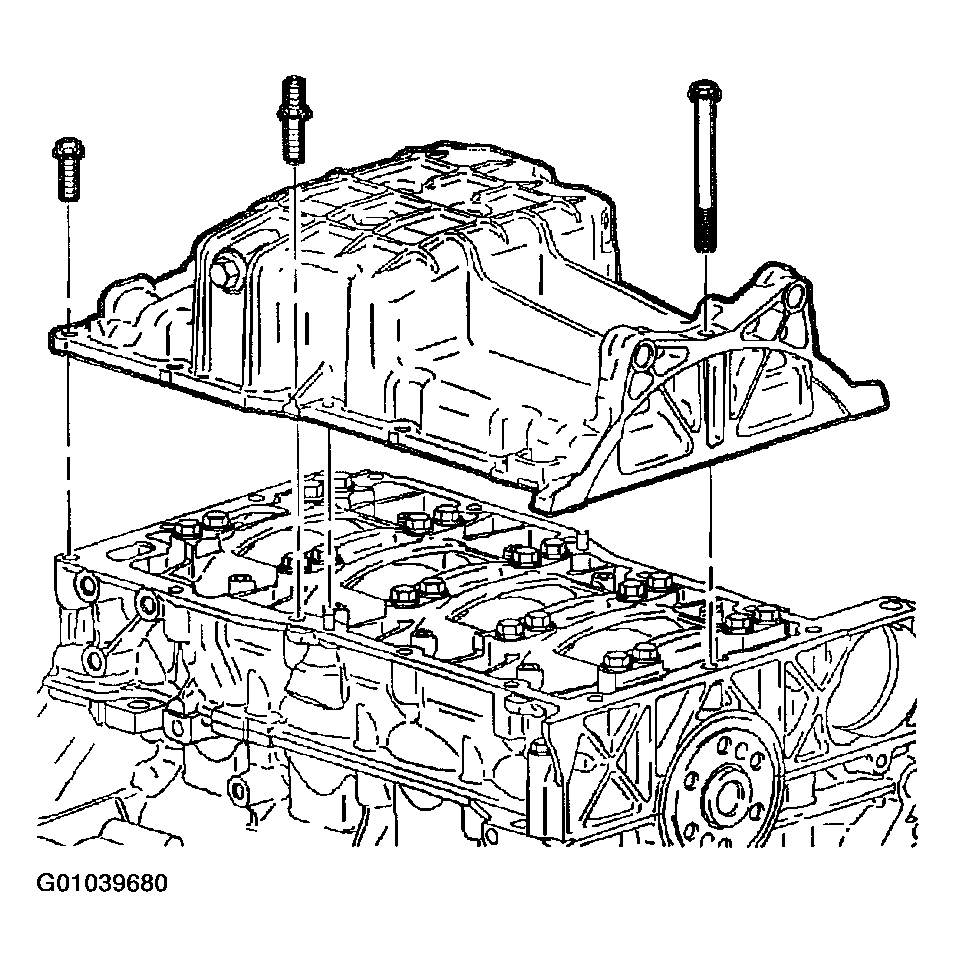

Fig 2: Installing Oil Pan
Courtesy of GENERAL MOTORS CORP.
Install oil pan bolts finger tight then tighten using torque sequence.

Torque:

Oil Pan-to-Block Bolts: 25 N.m (18 ft-lbs)

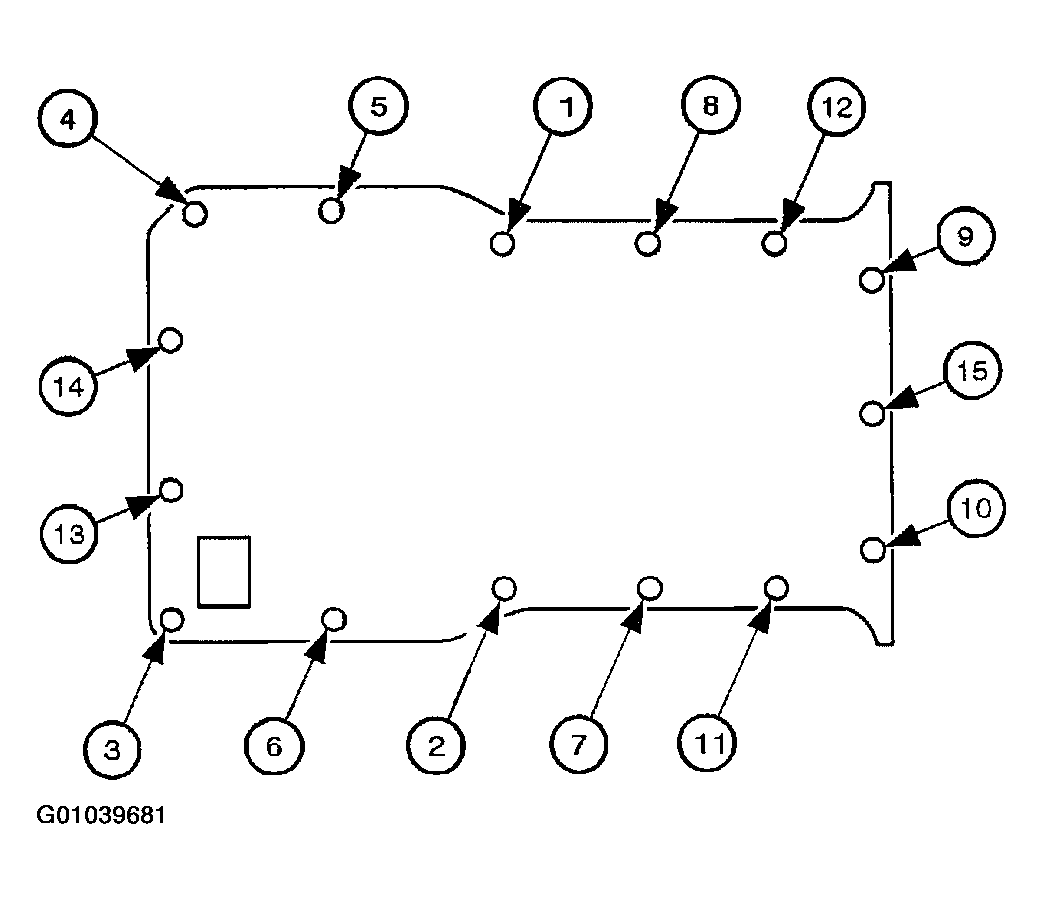

Fig 3: Oil Pan Tightening Sequence

Courtesy of GENERAL MOTORS CORP.
