Test Description

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

4. This step tests for voltage on the VSES mode switch signal circuit indicating an unpressed VSES mode switch.
5. This step tests for voltage on the VSES mode switch signal circuit indicating a pressed VSES mode switch.

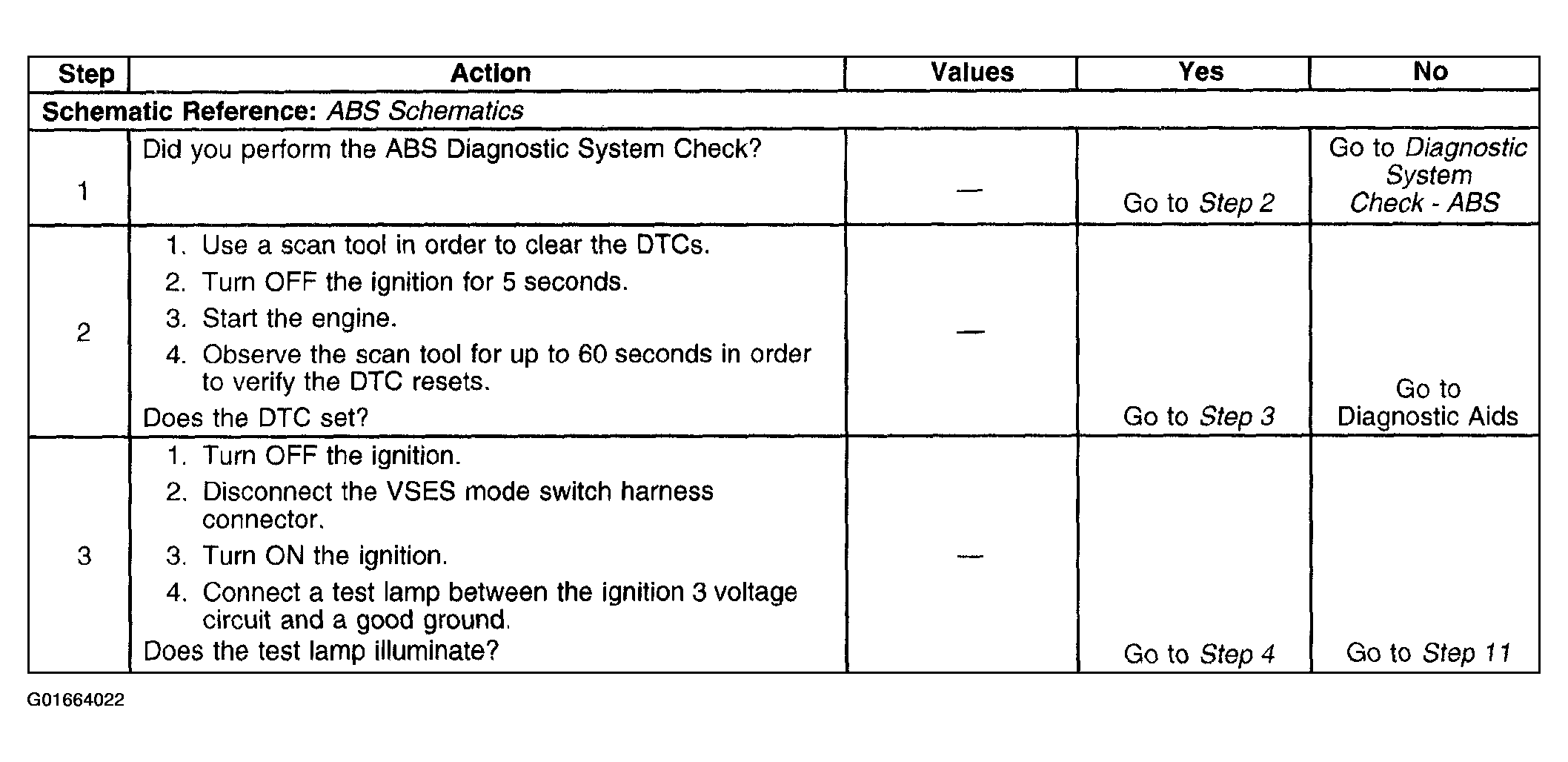

Fig 1: DTC C0283 W/JL4 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

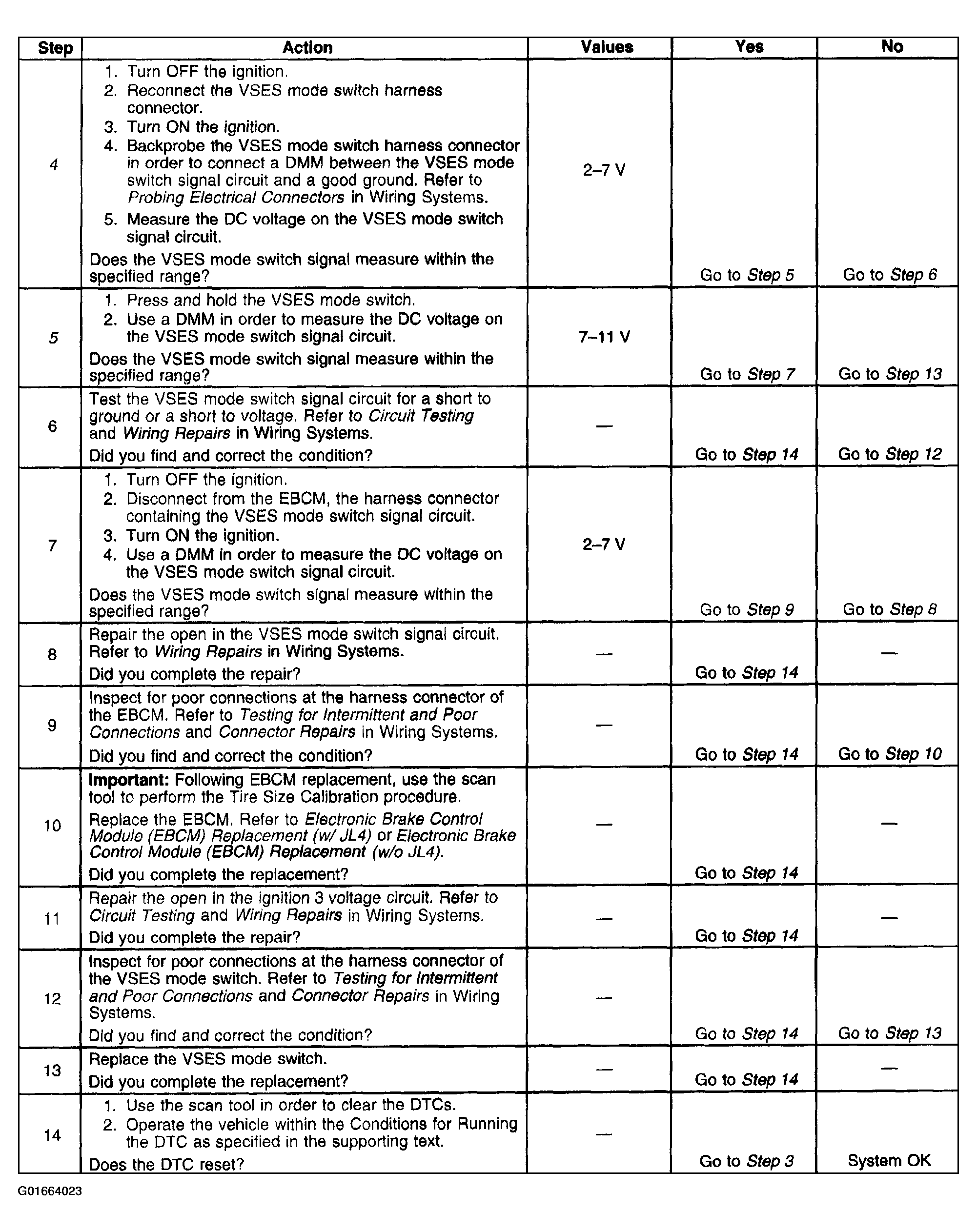

Fig 2: DTC C0283 W/JL4 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
