Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radio.
  2. Remove the heater control assembly.
  3. Disconnect the mode cable from the heater/ventilation module.
  4. Remove the mode cable from the IP carrier.

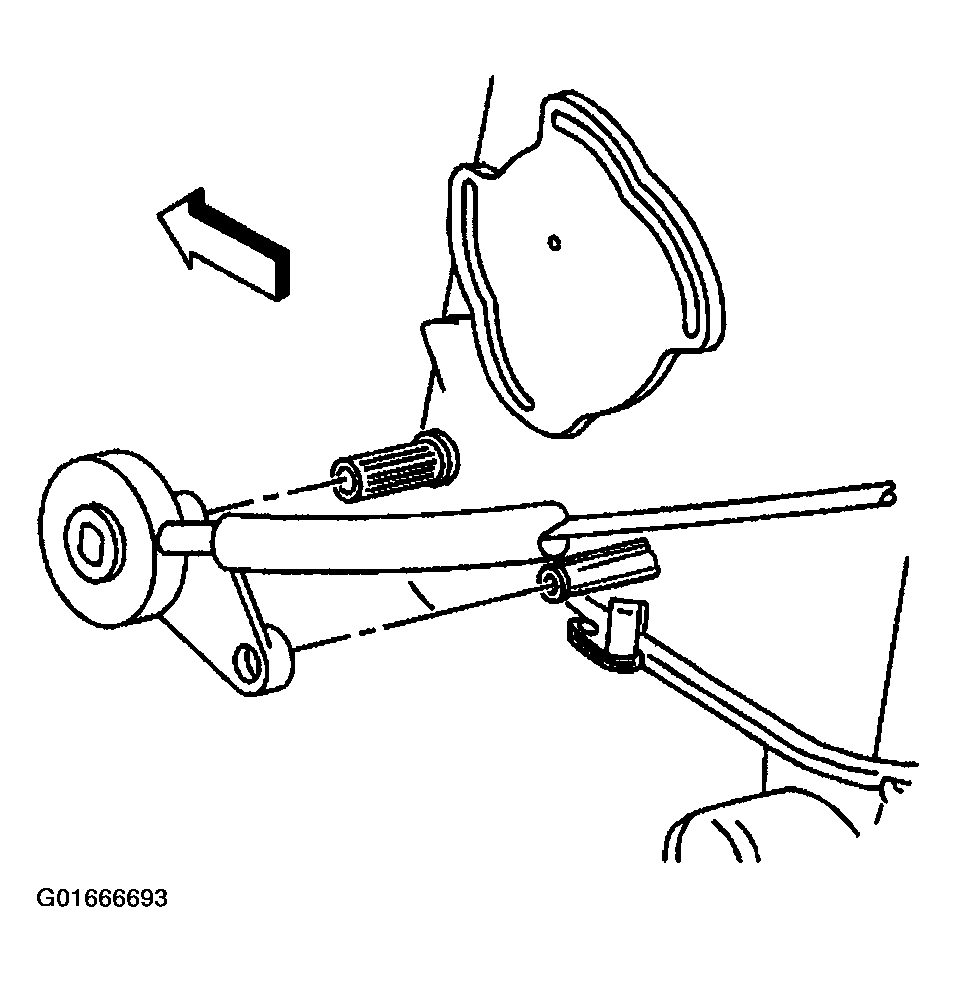

    Fig 1: Mode Control Cable
    G01666693Courtesy of GENERAL MOTORS CORP.
