Scan Tool Output Controls

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

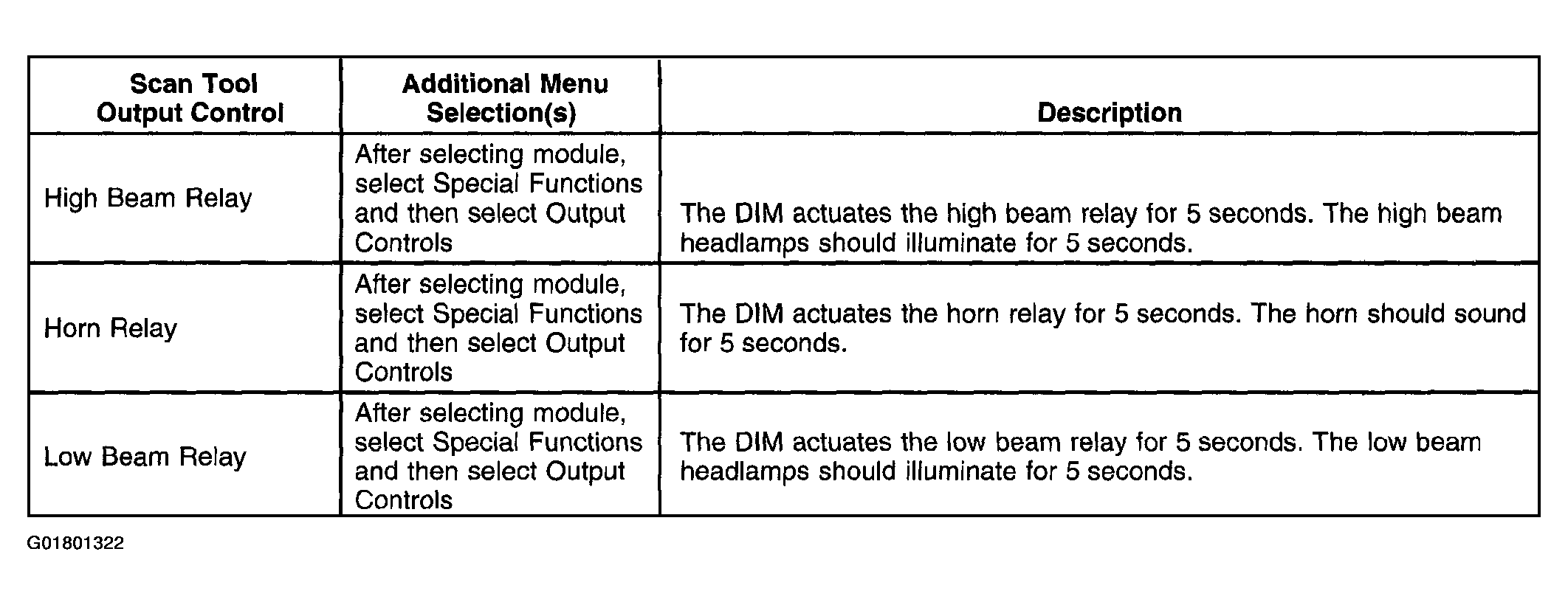

Fig 1: Dash Integration Module
G01801322Courtesy of GENERAL MOTORS CORP.
Fig 2: Rear Integration Module
G01801323Courtesy of GENERAL MOTORS CORP.
