Sensor Output Value Inspection
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch off.

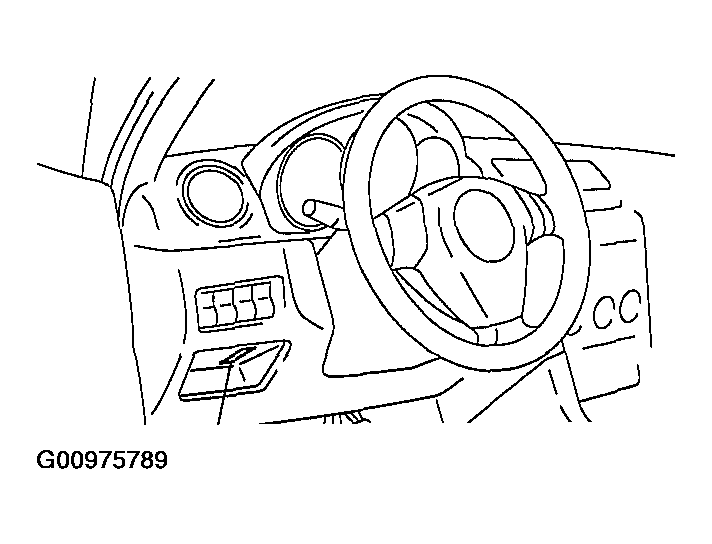

- Connect the WDS or equivalent to the DLC-2.
- Select the following PIDs using the WDS or equivalent:
- STEER_RATE (Steering wheel rotation rate)
- Turn the ignition switch to the ON position.
- Verify that the display of the WDS or equivalent shows the same value as the operation of the ***
