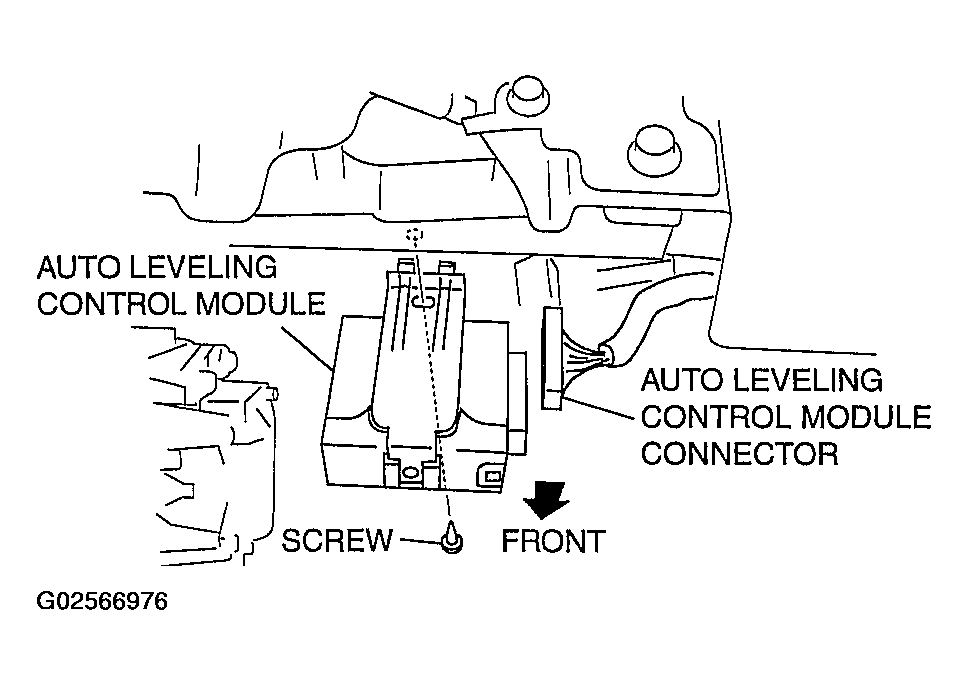

Auto Leveling Control Module Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
- Disconnect the auto leveling control module connector.
- Remove the screw, then remove the auto leveling control module.
- Install in the reverse order of removal.
